Liam F1 Urban Wind Turbine CFD Simulation, ANSYS Fluent Tutorial
$121.00 Student Discount
- The problem numerically simulates Liam F1 Wind Turbine using ANSYS Fluent software.
- We design the 3-D model by the Design Modeler software.
- We Mesh the model by ANSYS Meshing software, and the element number equals 835,689.
- We use the Frame Motion to define the rotational movement of the turbine.
Click on Add To Cart and obtain the Geometry file, Mesh file, and a Comprehensive ANSYS Fluent Training Video.
There are some Free Products to check our service quality.
New generations of wind turbines for domestic applications generate more energy than older ones. The Liam F1 Urban Wind Turbine is a small wind turbine with a diameter of around 1 meter. It’s also suitable for installation on roofs.
In this project, a 3D Liam F1 turbine is modeled, and airflow of 15m/s is simulated while passing through the turbine, making it rotate at a constant angular velocity of 240 rpm.

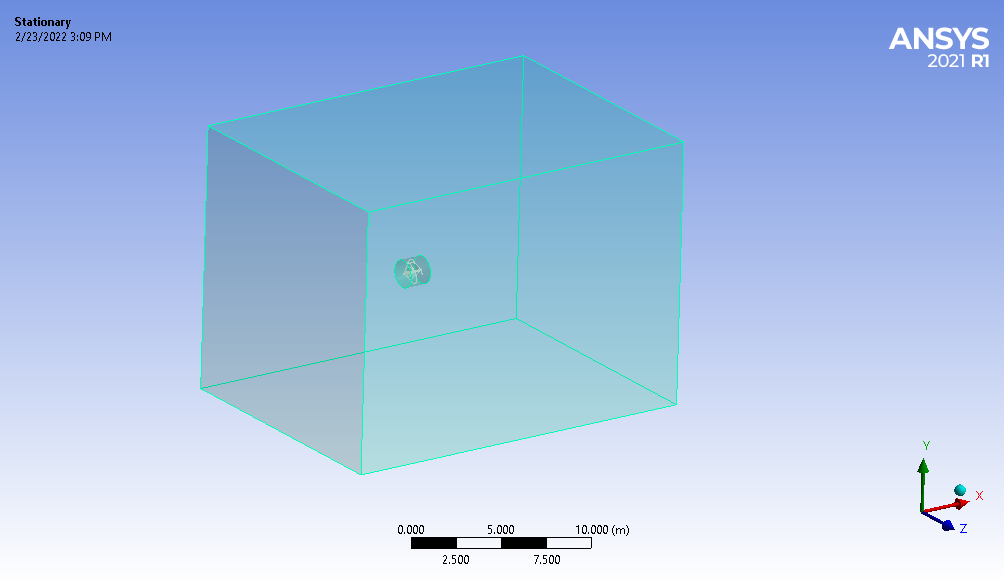

The geometry of the solution is a 3D rectangular enclosure whose’ lengths in X, Y, and Z directions are 21.3m, 15.6m, and 15.6m, respectively.

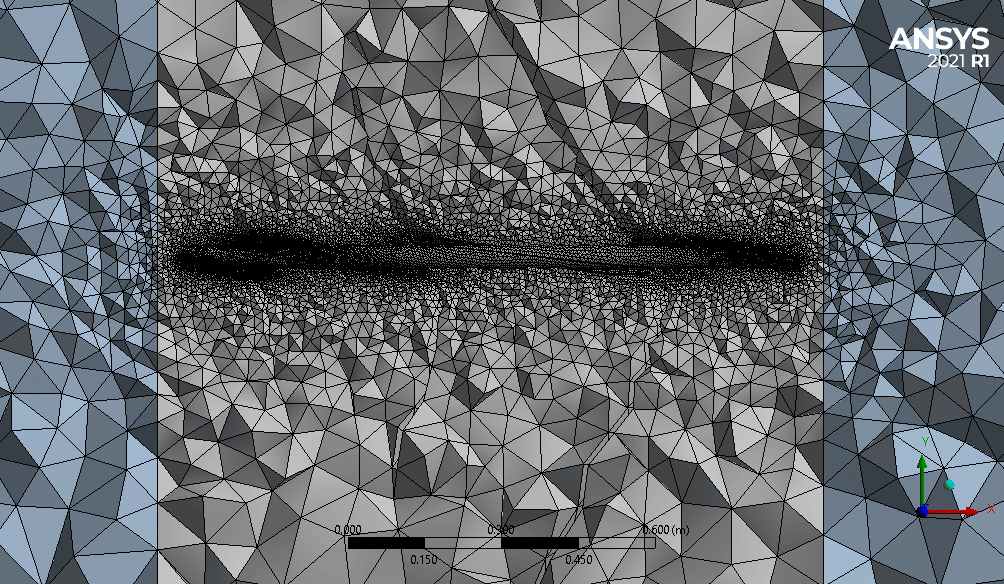

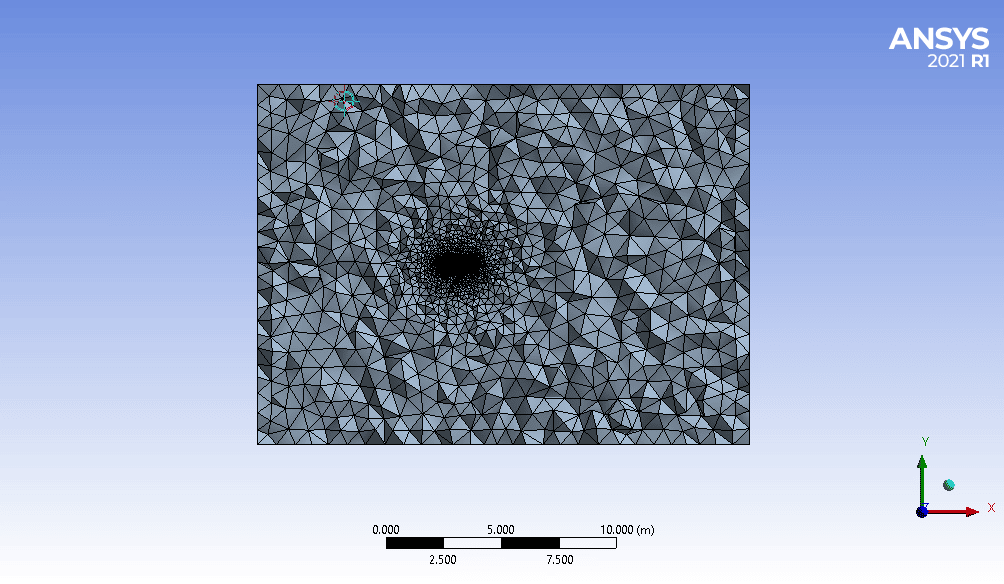

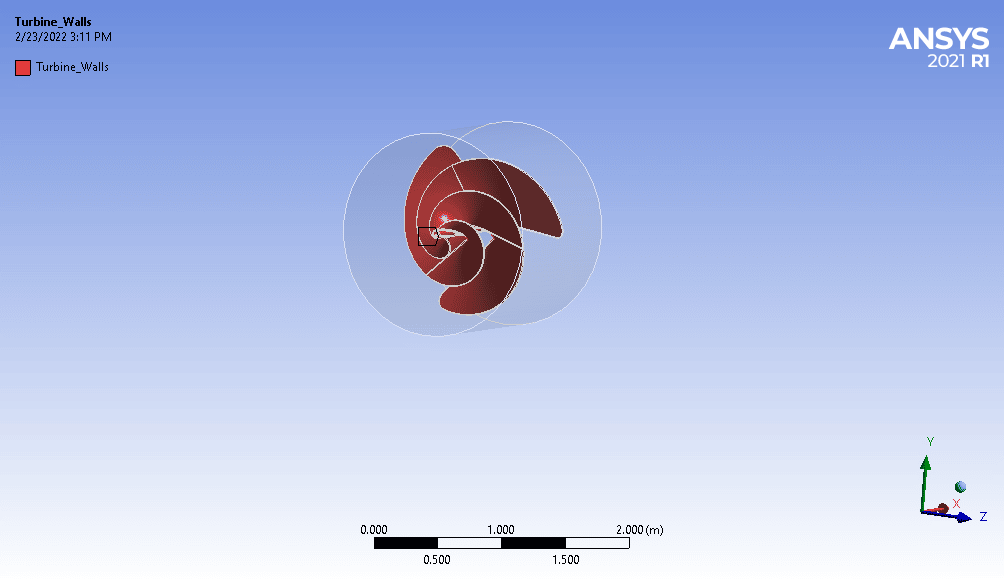

There is a Liam F1 Turbine at the coordinate origin with a diameter of 1.46m. Its length of 1.2m is in line with the X direction. Design Modeler software is used to create the geometry of the solution. ANSYS Meshing software is used for generating meshes of the solution. The elements are all unstructured, and the number of them is 835,689.
Methodology: Liam F1 Urban Wind Turbine
The pressure-based solver is employed due to the incompressibility of the air. The gravitational acceleration is ignored. Also, the simulation is performed in steady form. MRF option is enabled to model the rotational movement of the turbine.

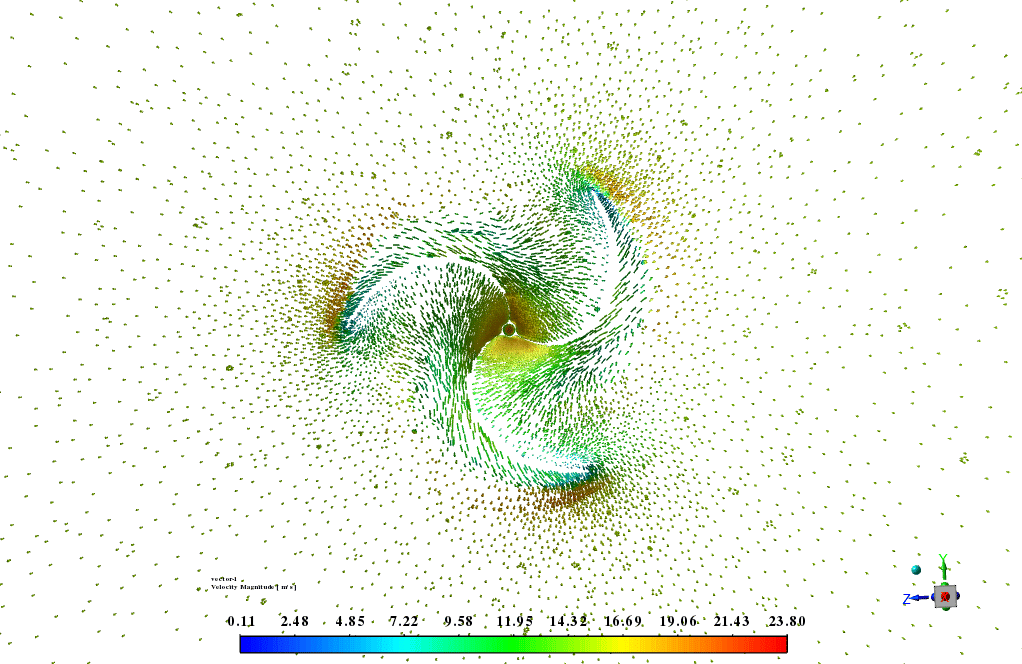

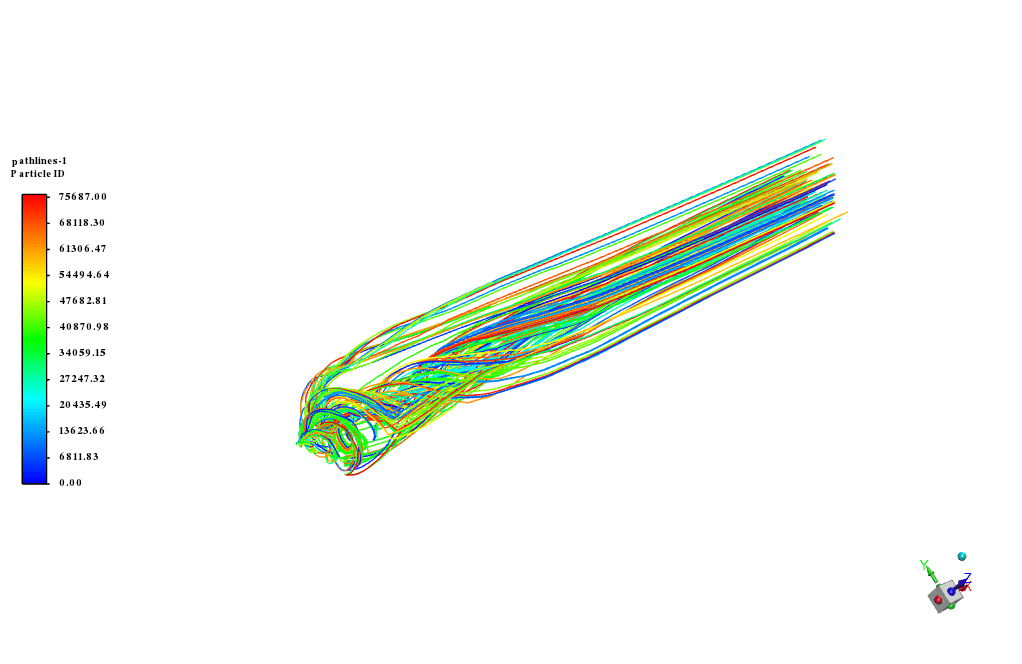

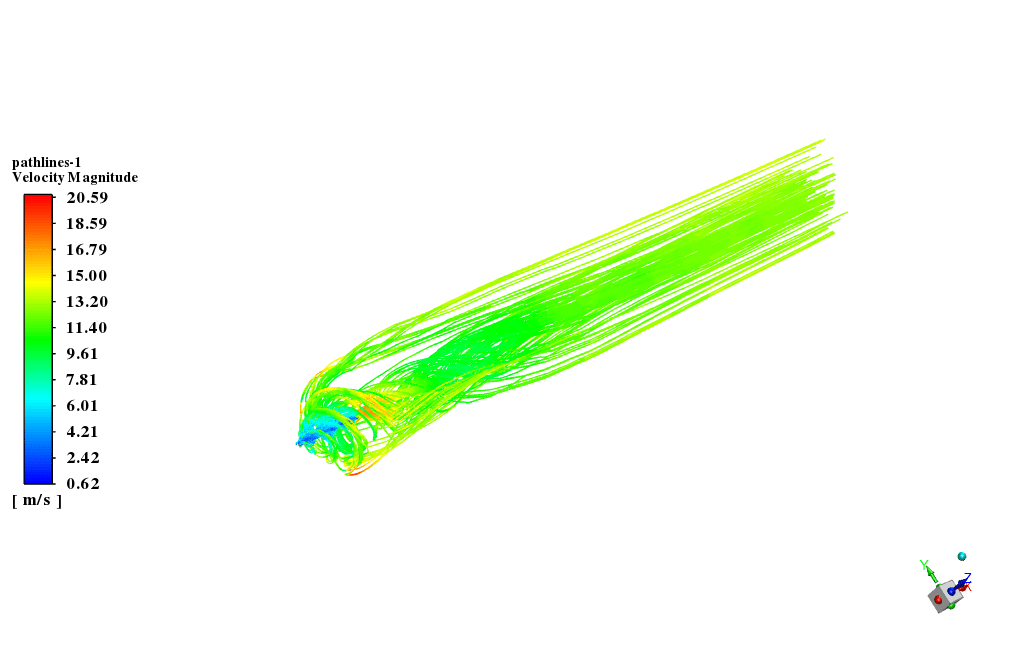

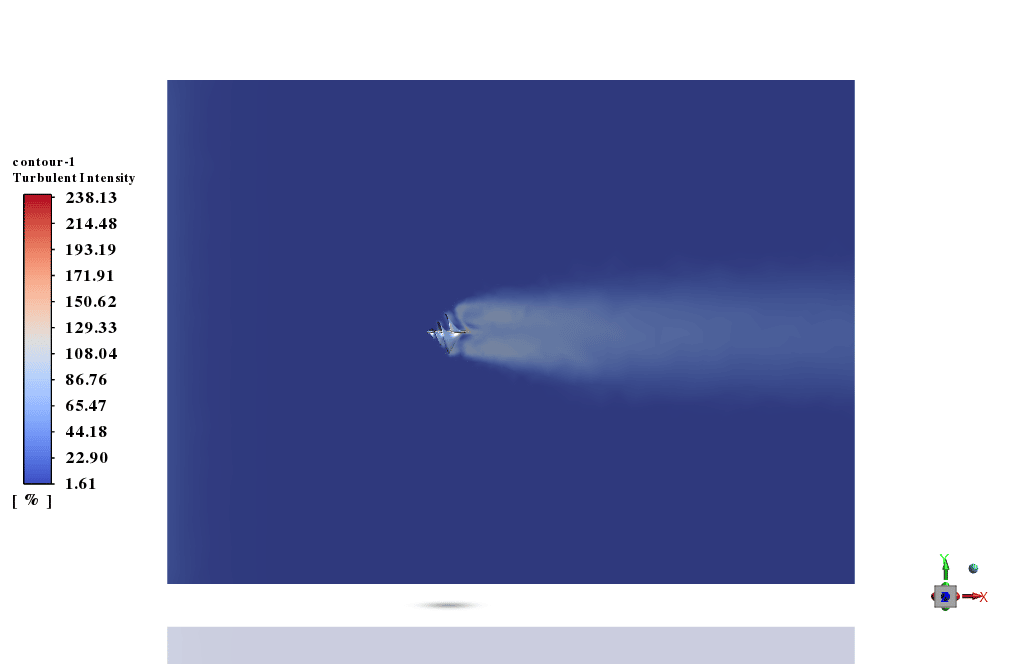

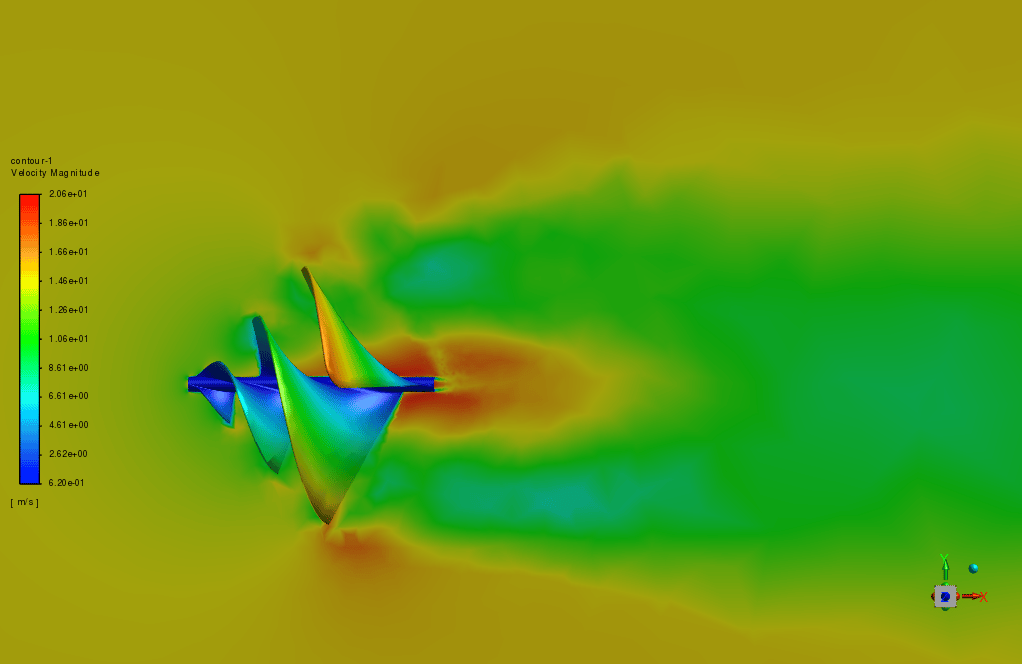

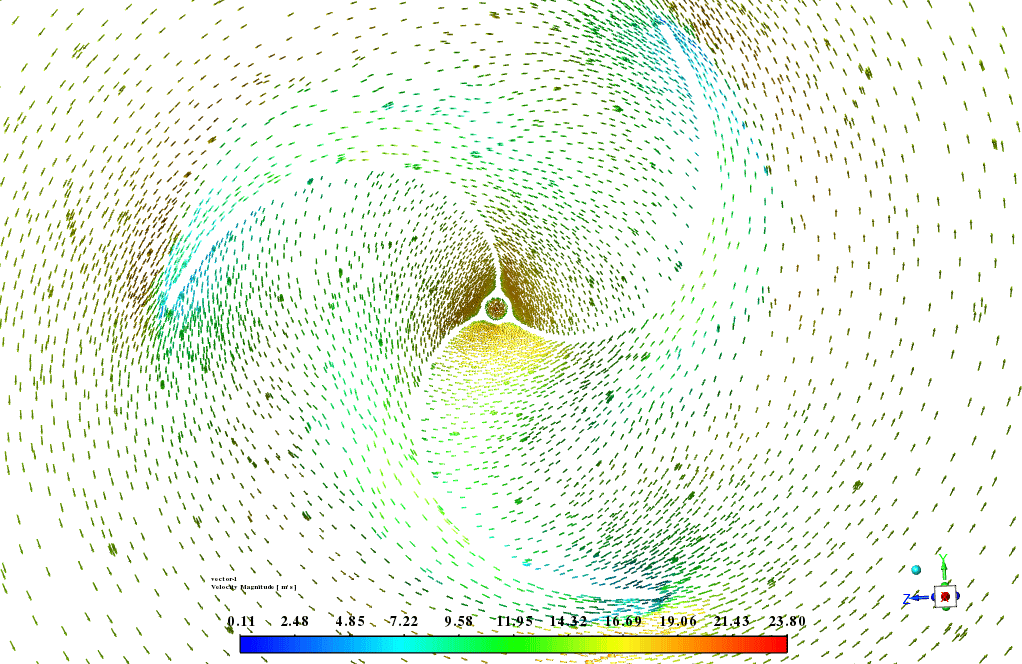

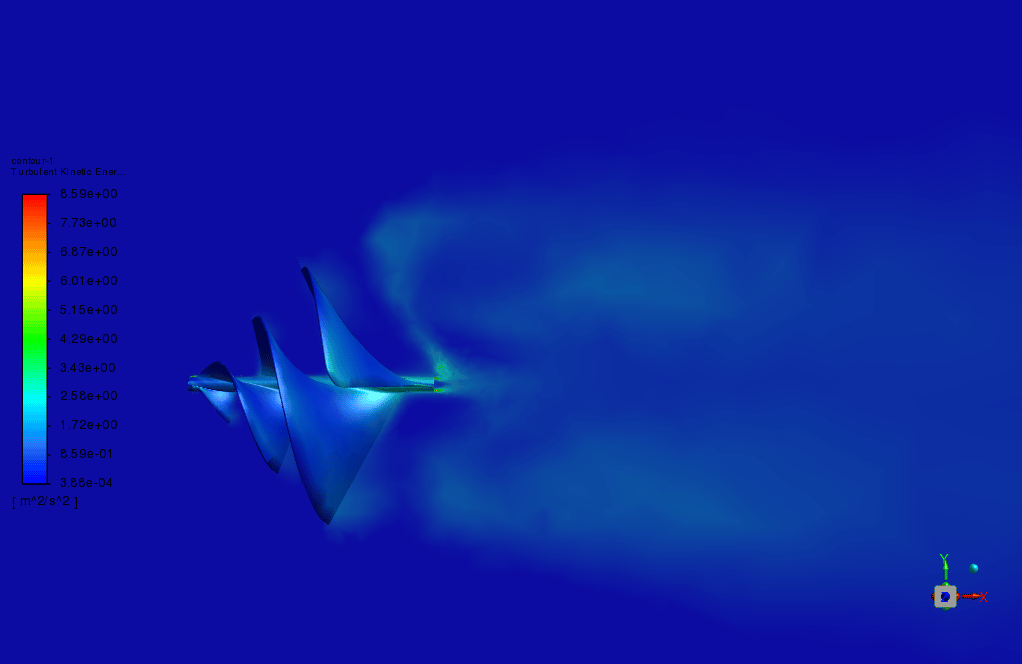

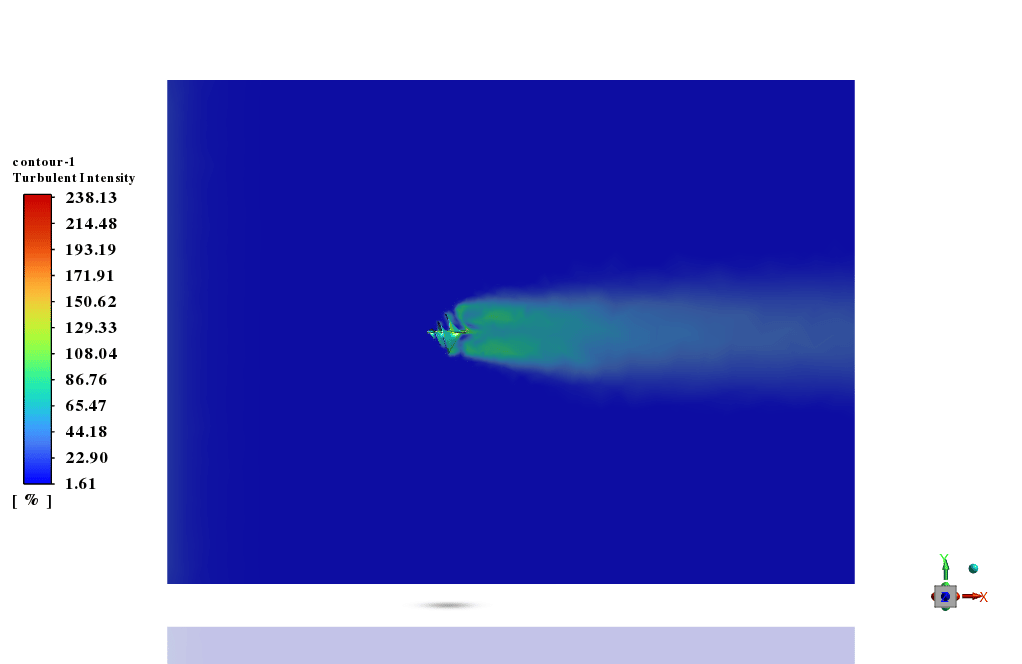

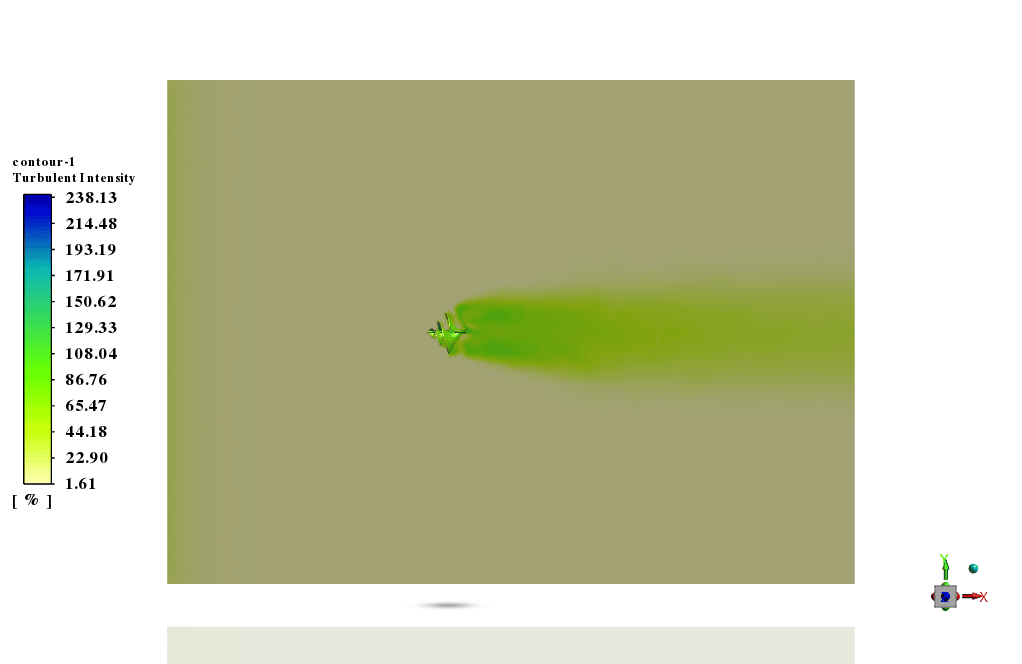

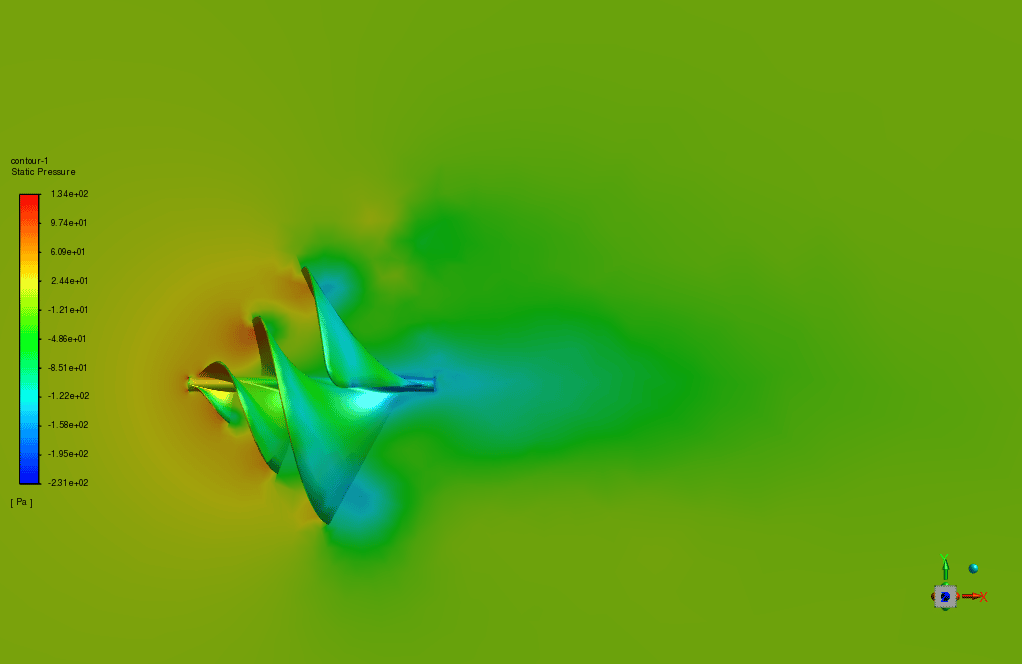

At the end of the solution process, two-dimensional contours and vectors related to air pressure, velocity, turbulence kinetic energy, and relative velocity are obtained. Airflow enters the domain with a velocity of 15m/s and hits the turbine. The Liam F1 rotates at 240 rpm and then the flow moves outside the domain.
The drag force of the turbine due to the wind is 190.16 N, and the difference in mass flow rate at inlet and outlet boundary conditions is figured as follows at each iteration to see the convergence of mass inside the domain.
