MQ-9 UAV FSI Analysis: CFD Simulation by Ansys Fluent

$2,160.00 $1,296.00 HPC

  • The problem numerically simulates a MQ-9 UAV using ANSYS Fluent software.
  • We design the 3-D model with the SpaceClaim software.
  • We mesh the model with Ansys Meshing software. The element number equals 11,136,403 and their type is Tetrahedral.
  • In this simulation, Dynamic Mesh is used for FSI modeling.
Click on Add To Cart and obtain the Geometry file, Mesh file, and a Comprehensive ANSYS Fluent Training Video.

To Order Your Project or benefit from a CFD consultation, contact our experts via email (info@mr-cfd.com), online support tab, or WhatsApp at +44 7443 197273.

There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via info@mr-cfd.com after you buy the product.

Special Offers For Single Product

Get a FREE consultation to discuss running your simulations on our high-performance computing systems
If you need the Geometry designing and Mesh generation training video for one product, you can choose this option.
editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
Enhancing Your Project: Comprehensive Consultation and Optimization Services
The MR CFD certification can be a valuable addition to a student resume, and passing the interactive test can demonstrate a strong understanding of CFD simulation principles and techniques related to this product.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.

Description

FSI Analysis: MQ-9 UAV CFD Simulation Training

Introduction

FSI simulation involves the interaction between the fluid and the structure. If we only want to consider the effects of the fluid on the structure, we use one-way method, and if we want to consider the effect of the structure on the fluid in addition to the effect of the fluid on the structure, we use two-way method. In this simulation, we have performed a two-way simulation. Previously, we could only run the two-way method in Workbench, but now Fluent software also has this capability. However, if our simulation involves large displacements, it is better to use Workbench because Fluent is not able to accurately analyze large displacements.

Developed by General Atomics Aeronautical Systems, the MQ-9 Reaper has served as one of the U.S. Air Force’s primary unmanned combat and reconnaissance aircraft since 2007. Operating at altitudes above 15,000 meters with a cruising speed of 370 km/h and an endurance of up to 27 hours, this advanced UAV combines endurance with striking power. With a payload capacity of 1,700 kg, it commonly carries precision-guided weapons such as Hellfire missiles and GBU-12 bombs. Integrated electro-optical and radar sensors enable the Reaper to detect, track, and engage targets in all weather conditions.

Beyond its performance metrics, the MQ-9 embodies American technological dominance in counterterrorism and asymmetric warfare. Its blend of Intelligence, Surveillance, and Reconnaissance (ISR) with precision-strike capabilities lowers operational costs and removes pilot risk. Having surpassed two million combat flight hours in regions including the Middle East, Ukraine, and the Red Sea, the Reaper has transformed modern warfare and set the benchmark for future unmanned aerial systems.

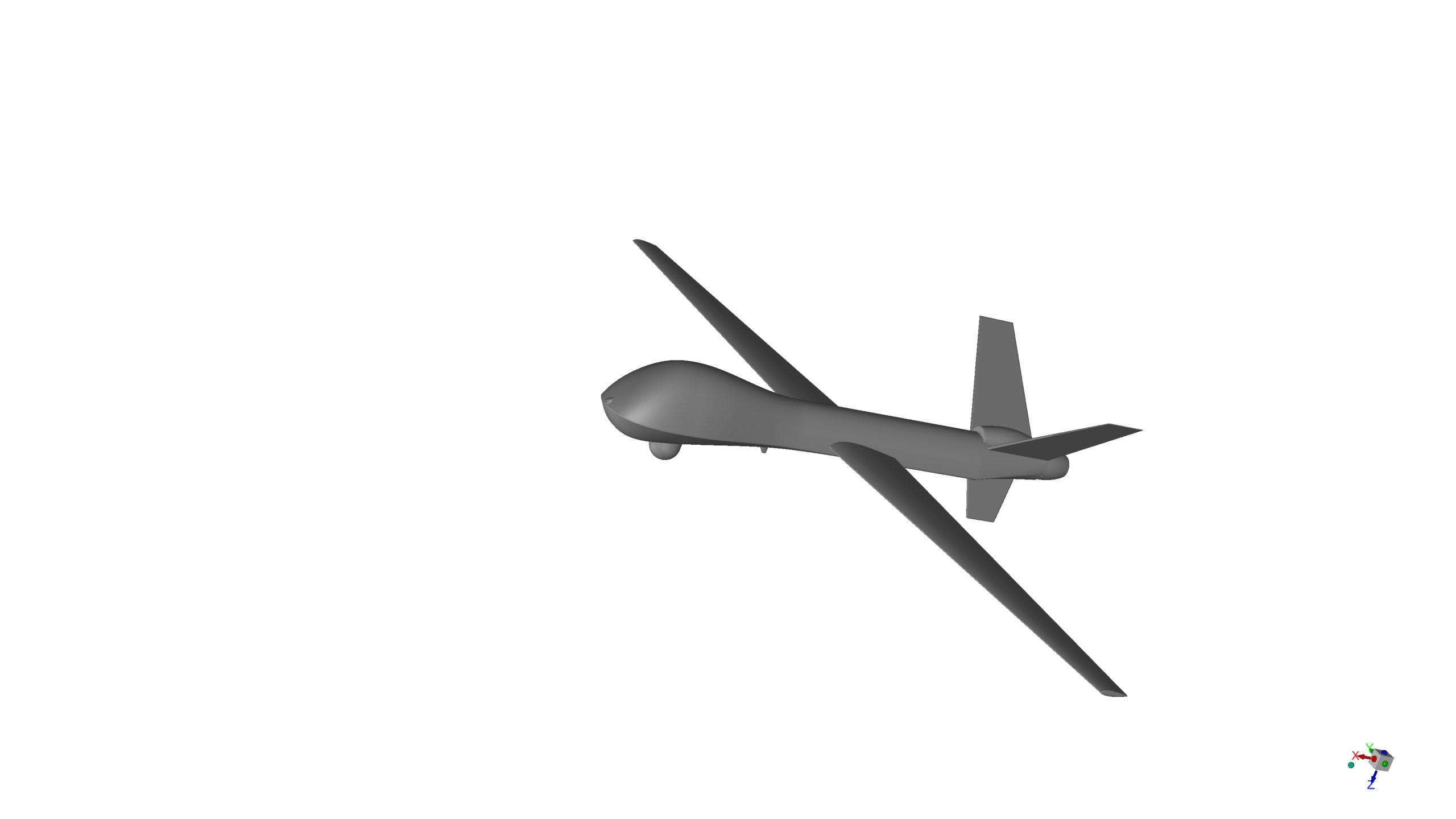

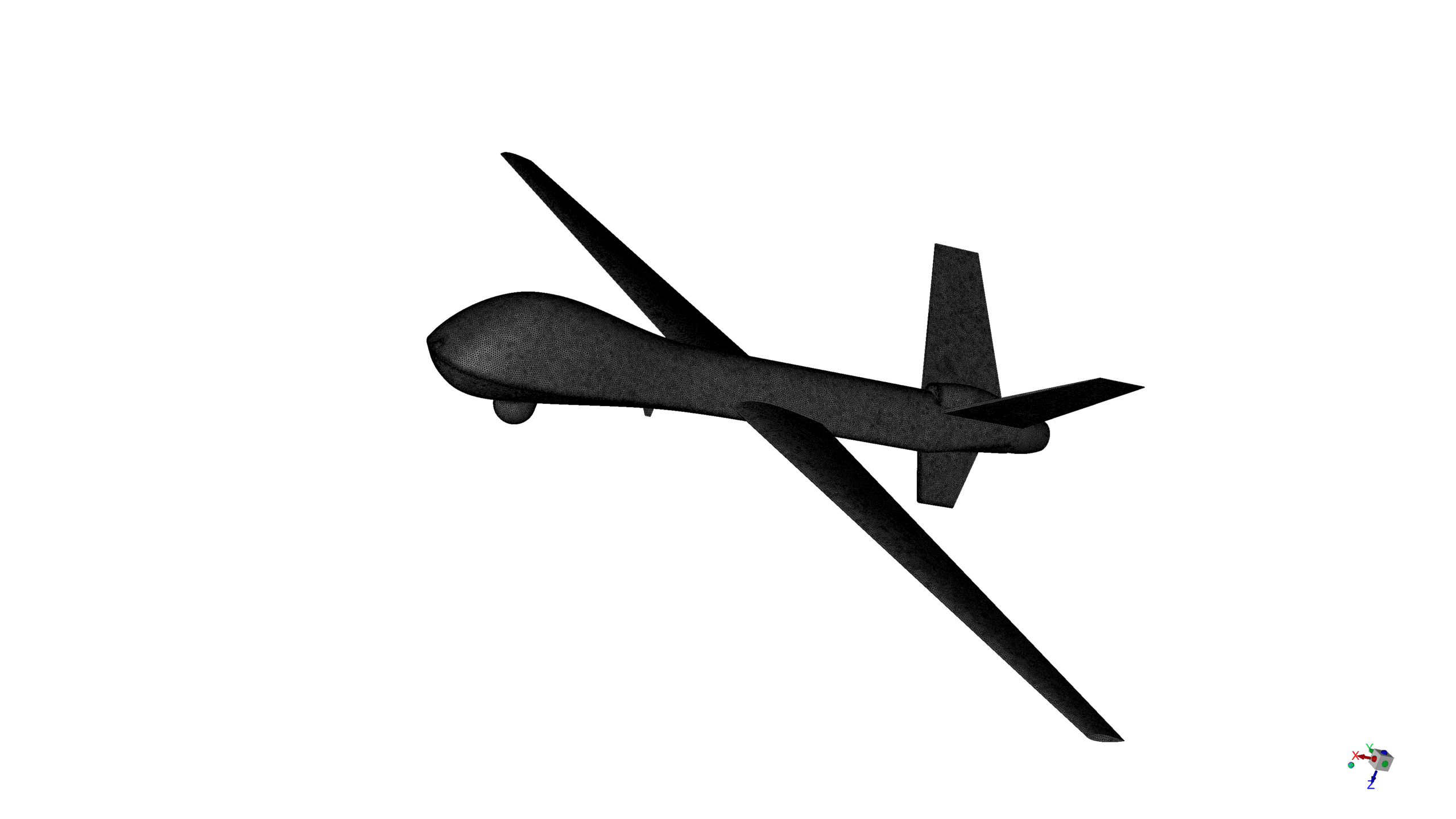

The geometry of the present model is three-dimensional and has been designed using SpaceClaim software. We do the meshing of the present model with Ansys Meshing software. The mesh type is Tetrahedral, and the element number is 11,136,403.

Methodology

In this FSI study used a steady-statepressure-based CFD simulation in ANSYS Fluent software to analyze the incompressible flow around a UAV and the fluid-structure interactions(FSI). The flow physics was modeled using the k-ω SST turbulence model and a dynamic mesh was also used.

Results and Conclusion

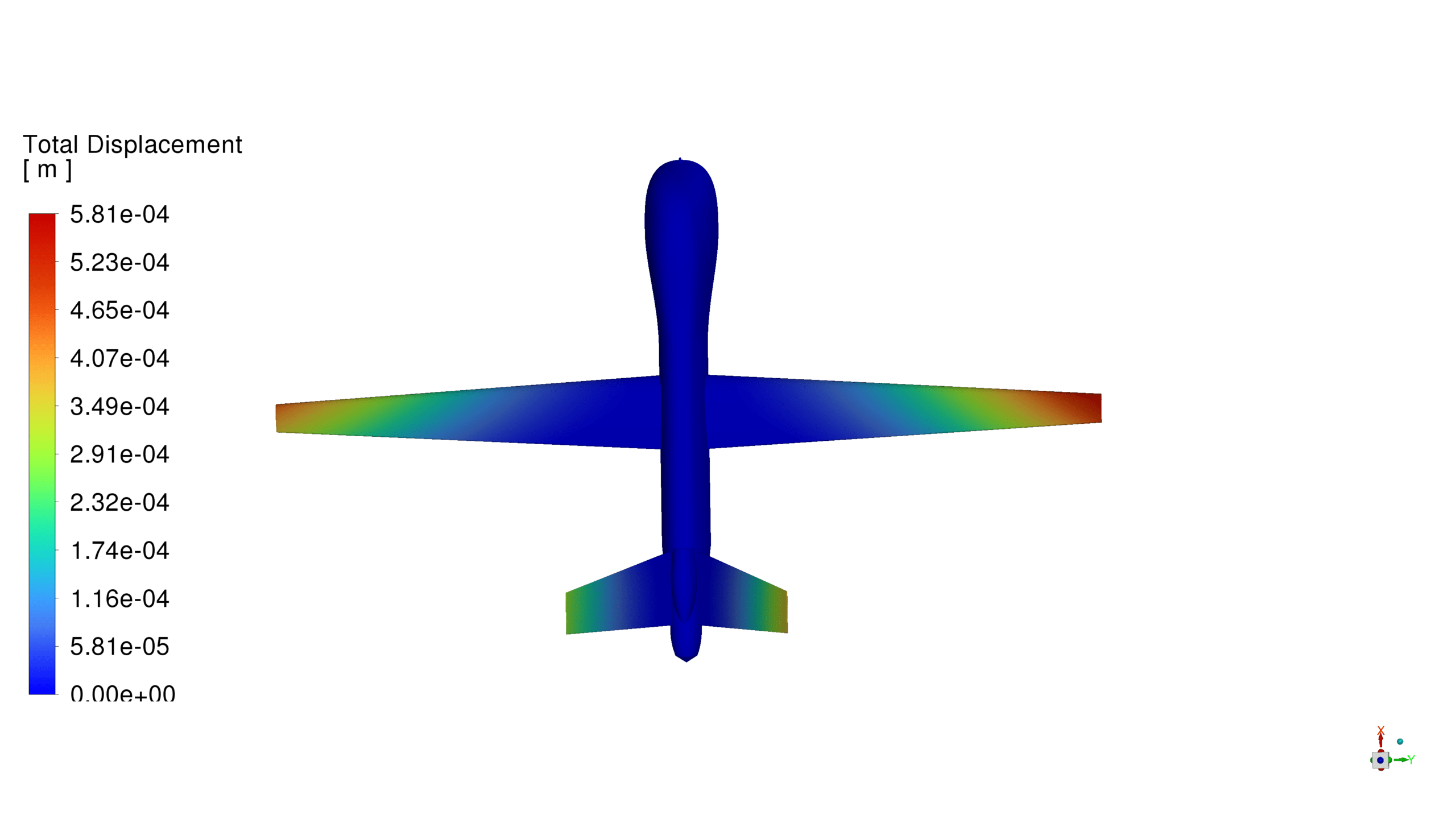

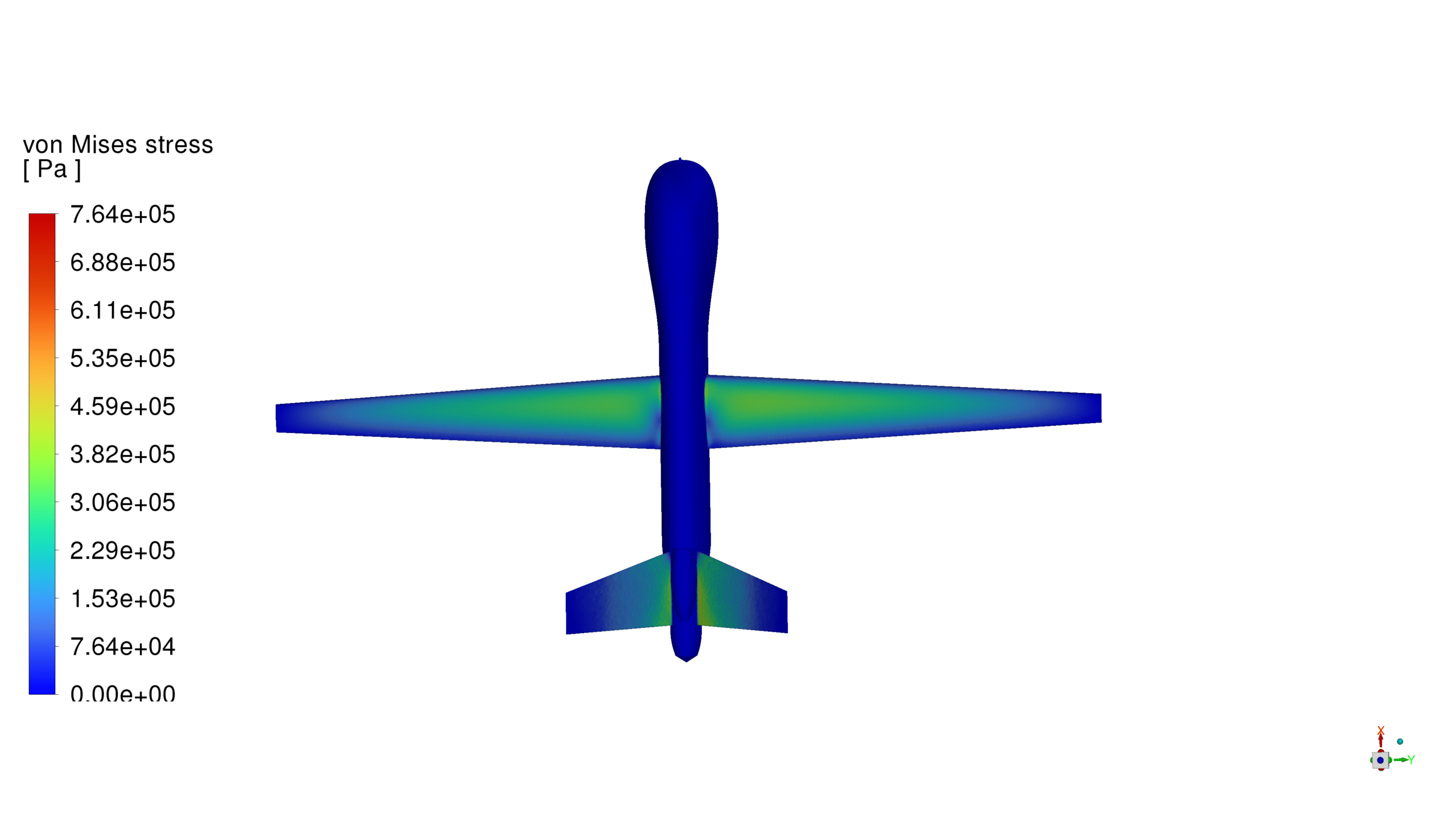

According to the extracted contours, it is observed that, as expected, the greatest displacement occurs at the wing tips of the UAV and the greatest stress is at the wing-body connection. Fsi

Fsi

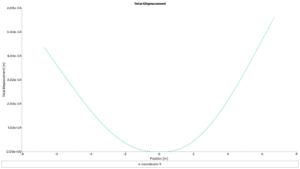

It is also seen in the diagrams that the amount of displacement decreases from the wingtips to the fuselage junction and reaches zero at the fuselage. Although the fuselage displacement may sometimes not be zero, its amount is very small and is usually ignored. The two diagrams below are for the front and rear airfoils.Fsi
