What are Hydraulic Structures in Civil Engineering?

Hydraulic structures are civil engineering structures designed to manage or regulate water movement. Typically, these buildings are utilized for water resource management, flood control, irrigation systems, and hydroelectric power generation. Hydraulic structures may be divided into two primary classes:

– Water storage structures: Reservoirs, dams, and tanks are examples of water storage structures. They serve as water storage, flood control, and irrigation systems.

– Conveyance structures: These structures, such as canals, pipelines, and culverts, are designed to transport water. They serve the purposes of irrigation, drainage, and flood control.

The following are popular types of hydraulic structures:

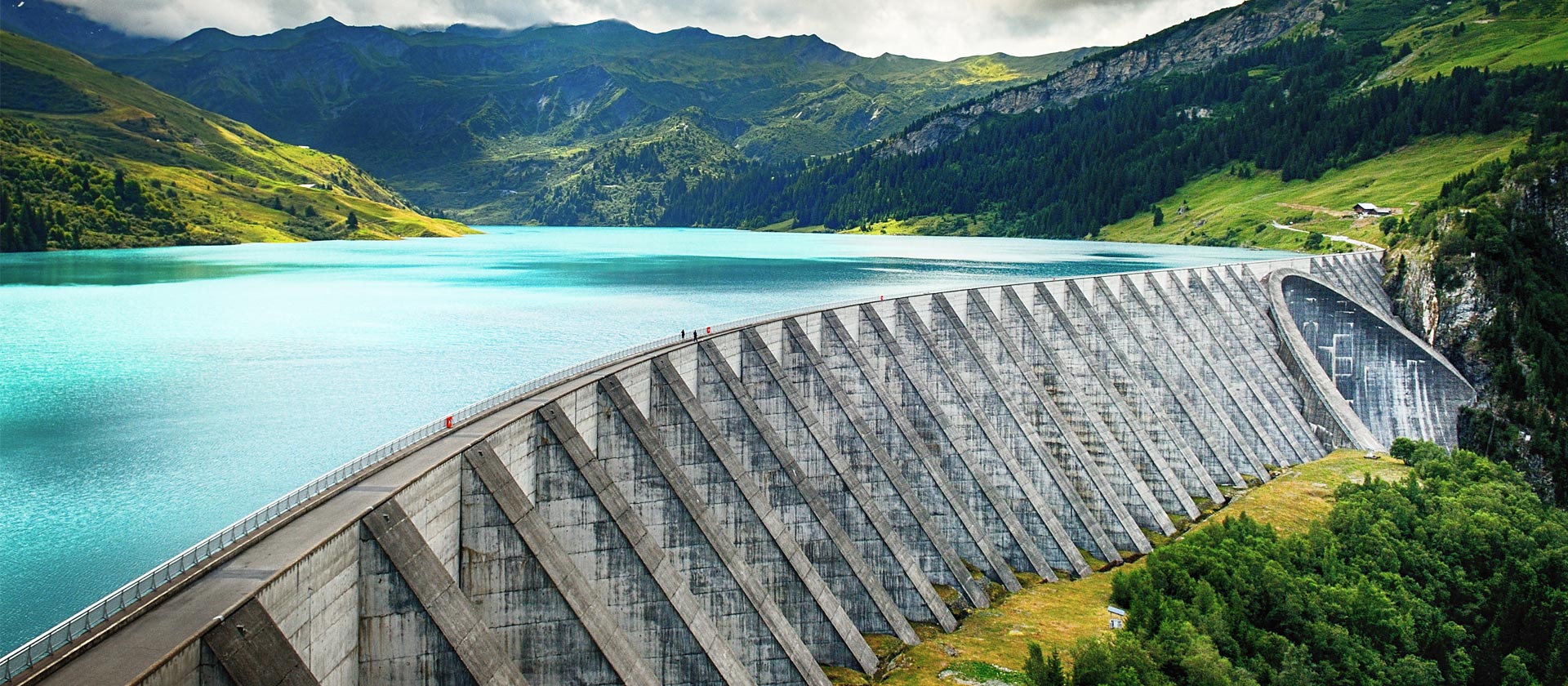

Dam1

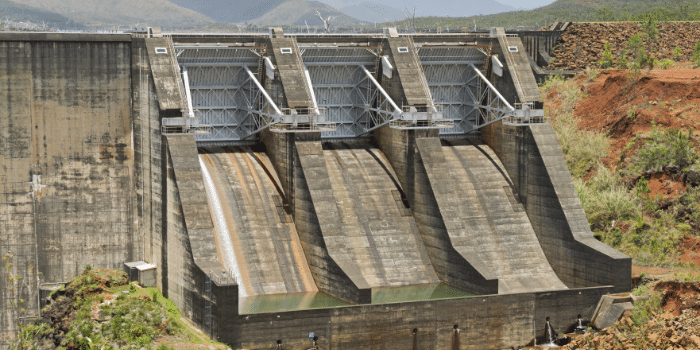

Dams are constructions constructed across rivers or streams to form a reservoir for water storage, flood control, or hydroelectric power generation.

Weir

Weirs are structures constructed across a river or stream to regulate water flow. These structures can be utilized for irrigation, flood control, and water diversion.

Culvert

Culverts are structures that enable water to flow beneath a road or other impediment. Typically, they are utilized for drainage reasons.

Canal

Canals are man-made channels created to convey water from one location to another. They serve as irrigation, water supply, and transportation channels.

Pumping Station

Pumping stations are constructions that employ pumps to transport water from one site to another. Typical applications include water delivery, irrigation, and flood control.

Overall, hydraulic structures serve a crucial role in managing and controlling the flow of water, which is crucial for many elements of contemporary life, including agriculture, industry, and urban growth.

In drainage, irrigation, and hydraulic projects, hydraulic structures are crucial. Failure of hydraulic structures could result in significant losses of life and property and damage to the environment and the economy. Aqueducts, pump stations, siphons, and sluices are a few examples of water-related infrastructures built to facilitate human needs and desires and improve the quality of life. Other examples include drainage channels, rivers, irrigation canals, bank and foot protection work, dams, spur dikes, bridges, and culverts.

Structures completely or partially submerged in water are known as hydraulic structures. The purpose of hydraulic structures is to alter the normal flow of water bodies in one of several ways: by diversion, disruption, storage, or outright cessation. Hydraulic structures are divided into three categories: special-purpose structures (structures for hydropower generation or inland waterways), water-retaining structures (dams and barrages), and water-conveying structures (artificial channels).

How can CFD simulation be applied in Hydraulic Structures in Civil Engineering Industries?

CFD (Computational Fluid Dynamics) simulation may be used to study and optimize the performance of hydraulic structures in civil engineering sectors. Following are some examples of applications for CFD simulation:

2 1Dam and spillway design: CFD simulation may be used to assess the flow of water over a dam or through a spillway. This can assist engineers in optimizing the design of these buildings to ensure they can withstand the anticipated water flow and prevent damage or failure.

Particularly for dam owners and operators, today’s technical difficulties are complex. Spillway scours, riprap-damaging flows, river debris collecting in the wrong places, and uneven overtopping of training walls are all examples of flow issues around dams. Vibrations in the trash rack, increased bearing wear, and even the creation of an air-core vortex can all be caused by unbalanced flow into powerhouse units. Dam owners and operators may wish to think about using a computational fluid dynamics model to reduce uncertainty and increase project success before investing significant construction and ongoing maintenance costs to fix these complicated issues.

CFD modeling offers a better knowledge of the underlying causes and potential solutions for flow issues close to dams and power plants. Engineers can solve energy dissipation issues, determine the causes of uneven Spillway scour patterns and even predict thermal currents using CFD modeling skills. Flow eddies, waves, lake recirculation patterns, sediment transport, riverbed scour, and even dynamic gate-opening flows can all be modeled by engineers. The CFD numerical models may help your project if it has a difficult flow issue by lowering maintenance and construction costs, lowering the risk of failure, and restoring the smooth operation of your hydropower facility.

Design of pumping stations: CFD simulation may be used to study the water flow through a pumping station. This can assist engineers in optimizing the design of pumps and pipelines to ensure they can manage the anticipated flow rates and pressures.

Canal and culvert design: CFD simulation may be used to assess water flow in a canal or culvert. This can assist engineers to improve the design of these structures to ensure they can withstand the anticipated flow rates and prevent erosion and sedimentation.

Flood modeling: CFD simulation may be used to model the flow of water during a flood. This allows engineers to maximize the design of flood control systems, such as levees and flood walls, by predicting the amount and severity of flooding.

Bridge Scour: In marine and coastal environments, sediment transport and the resulting local scour can cause structures to fail. The precise forecast of the local scours magnitude and knowledge and understanding of the principles governing erosion and sediment movement is essential for the structural design.

3 1Bridge scour can cause bridges to fall unexpectedly, which could result in fatalities if it happens while people are using the bridge. These often start with an initial risk assessment, followed by a more in-depth evaluation of particular bridges based on average speeds. Suppose these conventional techniques indicate that scour protection should be taken into account. In that case, this is a costly undertaking that may be made more cost-effective if the size of the bridge that has to be protected could be more precisely limited. This necessitates a more thorough hydraulic understanding of the complicated flow patterns found inside many bridges.

Shear stress predictions on the existing bed are already a potent output because they can identify potential zones of erosion of the existing bed material and guide the selection of material for scour protection compared to critical shear stress for specific bed material sizes (sands, gravels, and cobbles). We can also directly relate the hydraulic model to a sediment transport model to predict the anticipated bed evolution for a specific bed material composition.

Urban Drainage: One of the major problems for a large city is urban flooding. Accurately forecasting urban drainage flows is crucial in reducing or eliminating flood risks. The urban drainage system is the only means of transporting floodwater from urban areas in most cities. The major system, also known as the overland system, is made up of surface paths and temporary storage spaces, and the minor system, also known as the below-ground system, is made up of pipes and maintenance holes.

A civil and environmental engineer’s modeling objectives and scale requirements differ from an automotive engineer’s requirements. Designing large-scale structures and flows, multiphase flows, including gas-liquid, solid-liquid, and liquid-liquid flows, as well as chemical and biological processes, is typical for civil and environmental engineers.

CFD presents itself as a useful tool for examining the domain space for physical system design and performance variables and for diagnosing or troubleshooting system behavior in its contemporary version as computer-aided engineering (CAE) software. When a large number of design variations need to be analyzed or when physical testing may be disallowed owing to restrictions like scale, cost, accessibility, or the existence of physical or environmental risks, the application of CFD may supplement or replace existing analytical techniques.

This post just looked at a few CFD applications that can help improve Hydraulic Structures in Civil Engineering. The Mechanical business has many CFD applications, ranging from Spillways to modeling an Open Channel with a Side Outlet, Water Pollution in the Meandering River, and Sedimentation in Urban Sewer Conduits to assess the main parameters such as velocity, volume fraction, and pressure, all of which are key challenges in the industry.

Most aspects of the Hydraulic Structures industry rely on fluid dynamics. Although physical prototypes are required for later phases of development, CFD studies may significantly speed up design and optimization in the early stages.

3D Computational Fluid Dynamics is a more affordable option than physical modeling when examining complex flows around bridge piers and abutments. It has the advantage that the user may extract velocity and shear stress information at any place, and tests have shown that it compares favorably to physical models in terms of forecasts for the water surface profile.

In general, CFD modeling may offer useful insights into the performance of hydraulic structures in civil engineering sectors. Engineers may improve the design of these structures so that they are safe, efficient, and effective in managing and controlling the flow of water by utilizing CFD simulation.

Using numerical methods to solve mathematical equations, computational fluid dynamics (CFD) simulates fluid flow, heat, and mass transfer, chemical reactions, and other comparable fluid patterns. With the development of numerical computing capabilities, the use of CFD in engineering and industrial applications has increased since the beginning of the 21st century. The results of numerical models have frequently been viewed with doubt by researchers because the traditional approach in hydraulics uses experimental physical models. As a result, it is accustomed to using physical models along with numerical models. A confirmed numerical approach with experimental data or a case study might be employed to evaluate hydraulic problems more thoroughly from the experimental investigation.

Water flow in real-world settings, such as rivers, Stormwater, and wastewater systems, can be predicted and shown using CFD modeling. Simply said, CFD offers the useful advantages of physical modeling within appropriate time and cost constraints.

CFD has recently become more affordable after initially being utilized mainly for large projects to benefit from its enhanced accuracy. But as technology has advanced, the cost has significantly decreased, making it possible for smaller communities to benefit from this cutting-edge research.

MR CFD services in the Hydraulic Structures in Civil Engineering Industries

MR CFD  conducted numerous outsourced simulation projects for industrial and research Hydraulic Structures in Civil Engineering applications. With several years of experience simulating various problems in various CFD fields using ANSYS Fluent software, MR CFD  is ready to offer extensive services of simulation configurations.

Open Channel Flow

The Flow of the Open Channel The ANSYS Fluent CFD Simulation Training Package is a full set of training tools that show step-by-step how to use the ANSYS Fluent software to model open channel flow. 4 1The package comes with 10 hands-on tasks that cover a wide range of open channel flow-related topics, such as:

-Introduction: This part gives an overview of open channel flow, including its features, types, and uses.

– Shape and Meshing: This part talks about how to make the open channel’s 3D shape and how to mesh the model.

– Boundary conditions and solver settings: This part goes over how to choose the right turbulence model and numerical method, as well as how to set up the simulation’s boundary conditions and solver settings.

– Running the simulation: This part tells you how to run the simulation and watch how the answer is coming together, as well as how to find and fix convergence problems.

– Post-processing and analysis: This part talks about how to visualize the flow field, velocity profiles, and other key factors, as well as how to measure and study open channel flow characteristics.

The package comes with input files, boundary conditions, and other tools to help you get started with your open-channel flow modeling projects. By doing the tasks, you will learn more about open channel flow and how it affects the behavior of fluids. You will also learn more about the ANSYS Fluent software and how it can be used to simulate fluid flow and heat transfer. The Open Channel Flow Engineers and students who want to simulate open channel flow and improve the design and performance of open channel systems will find the ANSYS Fluent CFD Simulation Training Package to be a useful tool.

Free Surface Flow

The Free Surface Flow ANSYS Fluent Training Package is a complete set of training tools that show step-by-step how to use the ANSYS Fluent software to model free surface flow. The package comes with 10 hands-on tasks that cover a wide range of free surface flow-related topics, such as:

-Introduction: This part gives an introduction to free surface flow, including what it is, how it works, and what kinds of things it can be used for.

– shape and meshing: This part talks about how to make the free surface flow model’s 3D shape and how to make the model’s mesh.

– Boundary conditions and solver settings: This part goes over how to choose the right turbulence model and numerical method, as well as how to set the boundary conditions and solver settings for the simulation.

– Running the simulation: This part tells you how to run the simulation and watch how the answer is coming together, as well as how to find and fix convergence problems.

– Post-processing and analysis: This part talks about how to post-process and analyze the simulation data, such as how to see the free surface, velocity profiles, and other key factors, as well as how to measure and study the flow characteristics of the free surface.

The package comes with input files, boundary conditions, and other tools to help you get started with your own free surface flow modeling projects. By doing the tasks, you will learn more about free surface flow and how it affects how fluids behave. You will also learn more about the ANSYS Fluent software and how it can be used to simulate fluid flow and heat transfer. Overall, the Free Surface Flow ANSYS Fluent Training Package is a helpful tool for engineers and researchers who want to simulate free surface flow and improve the design and performance of free surface systems, such as water treatment plants, wastewater treatment plants, and coastal engineering projects.

Pump

The Pump CFD Simulation Training Package for ANSYS Fluent is a complete set of training tools that show step-by-step how to use the ANSYS Fluent software to model different kinds of pumps. There are 6 CFD projects in the package that cover a wide range of pump types, such as:

– Screw pump: This part explains how to simulate a screw pump, including how to make the 3D shape, mesh, boundary conditions, and solver settings that are needed.

5 1– Axial flow pump: This part goes over how to simulate an axial flow pump, including creating the 3D modeling, meshing, boundary conditions, and solver settings needed for the simulation.

– Centrifugal pump: This part goes over how to simulate a centrifugal pump, including how to make the 3D modeling, meshing, boundary conditions, and solver settings that are needed for the simulation.

– Ram pump: This part goes over how to simulate a ram pump, including how to make the 3D shape, mesh, boundary conditions, and solver settings that are needed.

– Twin Screw Pump: This part explains how to simulate a twin screw pump, including creating the 3D modeling, meshing, boundary conditions, and solver settings needed for the simulation.

– Radial Flow Pump: This part goes over how to simulate a radial flow pump, including creating the 3D modeling, meshing, boundary conditions, and solver settings that are needed for the simulation.

The package comes with input files, boundary conditions, and other tools to help you get started with your own pump modeling projects. By doing the tasks, you will learn more about how to build and optimize pumps, as well as how to use the ANSYS Fluent software to simulate fluid flow and heat transfer. Overall, the Pump CFD Simulation Training Package for ANSYS Fluent is a helpful tool for engineers and students who want to simulate different types of pumps and improve their design and performance.

Spillway

The Spillway CFD Simulation Training Package for ANSYS Fluent is a full set of training tools that show step-by-step how to use the ANSYS Fluent software to model different kinds of spillways. The package comes with 6 CFD projects that cover a wide range of types of the slope, such as:

– Transient and Steady-State Solvers: This part explains how to simulate a spillway using both transient and steady-state solvers, including how to create the 3D modeling, meshing, boundary conditions, and solver settings needed for the simulation.

– Wide-Edge with Lateral Slope: This part explains how to simulate a spillway with a wide edge and a lateral slope, including how to make the 3D shape, mesh, boundary conditions, and solver settings that are needed for the simulation.

– Stepped (Stair) Spillway: This part goes over how to simulate a stepped (stair) spillway, including how to make the 3D modeling, meshing, boundary conditions, and solver settings that are needed for the simulation.

– Labyrinth Spillway: This part explains how to simulate a labyrinth spillway, including creating the 3D modeling, meshing, boundary conditions, and solver settings needed for the simulation.

– Lotus Overflow: This part explains how to simulate a lotus overflow spillway, including creating the 3D modeling, meshing, boundary conditions, and solver settings needed for the simulation.

– Ogee Spillway: This part explains how to simulate an ogee spillway, including how to make the 3D shape, mesh, boundary conditions, and solver settings that are needed.

The package comes with input files, border conditions, and other tools to help you get started with your own spillway modeling projects. By doing the tasks, you will learn more about how to build and optimize a spillway, as well as how to use the ANSYS Fluent program to simulate fluid flow and heat transfer. Overall, the Spillway CFD Simulation Training Package for ANSYS Fluent is a useful tool for engineers and students who want to simulate different types of spillways and improve their design and performance.

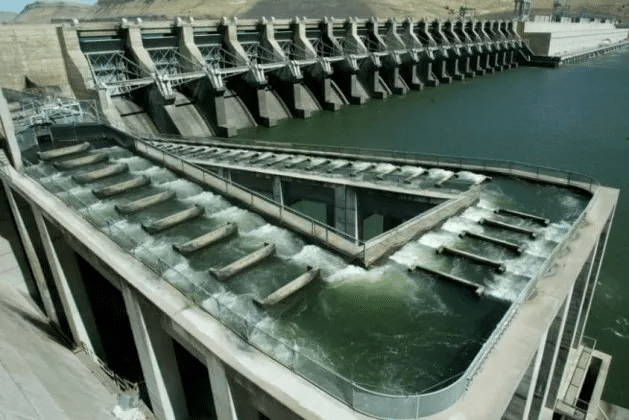

6 1MR CFD is ready to offer extensive modeling, meshing, and simulation services. Our essential simulation services for Hydraulic Structures in Civil simulations are categorized as follows:

  • Dam structures
  • Aquatic organism passage (AOP)
  • River features
  • lakes/reservoirs, and coastal systems
  • Sediment transport and scour
  • Stormwater best management practice devices
  • Stormwater structures
  • municipal water and wastewater treatment systems
  • Water treatment tanks and processes

Hydraulic Structures in Civil Engineering MR CFD Projects

There are several MR CFD simulation projects in Hydraulic Structures in Civil engineering. Following are some examples of CFD simulation projects in Hydraulic Structures in Civil engineering:

Compound Channel with Non-Prismatic Floodplain

The goal of this problem is to use ANSYS Fluent software to simulate a two-phase flow in a compound channel. This simulation is based on the information in a reference article called “Application of the Shiono and Knight Method in Compound Channels with Non-Prismatic Floodplains,” and we compare and verify its results with the results in the article. Most natural waterways (floodplains) are made up of the main channel through which the natural flow of water moves. When the flow of water rises, however, one or more flood layers form in the area around the main channel. In this case, we can assume that the cross-section of the channel is not a simple physical shape. Compound channels are the name for these kinds of channels. The goal of this program is to study what happens when water and air move together in a compound channel.

Horizontal Axis Tidal Turbine

ANSYS Fluent software is used to model a horizontal-axis water turbine for the current job. The article “Performance of horizontal axis tidal current turbine by blade configuration” is used to compare and confirm the results of the CFD simulations. The water flows past the water turbine at a speed of 1 m.s-1. Since the water flow hits the turbine blades and creates a torque force on the blades, the blades start to turn, which causes the water around the blades to flow in a circular motion. The current model is made in three dimensions, so the parts that have to do with the rotor blades have the shape of an airfoil-type S814.

Turbine Hydropower in Waterline Optimization

This paper “Numerical analysis of lift-based in-pipe turbine for predicting hydropower harnessing the potential in selected water distribution networks for waterlines optimization” models and simulates the possibility of running a power plant inside a pipe. It does this by using a spherical turbine based on a lift-based in-pipe. NACA airfoils are used to make the shapes for turbine hydrofoils. To do this, the ANSYS Fluent software was used to simulate and examine a CAD model of a spherical lift turbine based on its top and bottom volume discharge rates. The time series of changes in the discharge is used to figure out the time series of power sources. In the past few years, saving water and energy has been one of the world’s major worries, and it is likely to become even more important soon. In this case, there have been many technical ideas for replacing pressure relief valves with power generators to make energy and keep the pressure of water delivery networks safe. Using the hydraulic energy efficiency of water, which can be directly turned into power, increases the energy efficiency of water supply systems. This method uses a clean energy source, which is often overlooked when it comes to water supplies. It also lowers the amount of energy that the system needs from the power grid and the costs of running the system.

FSI Method for Water Turbine

The FSI (Fluid-Structure Interaction) method is a powerful tool for simulating the behavior of water turbines, which involves the interaction of fluid flow and structural deformation. The ANSYS Fluent CFD Simulation Training Package for FSI Method for Water Turbine provides a comprehensive set of training materials that covers the simulation of a water turbine using the FSI method in ANSYS Fluent software.7

Cavitation in a Cross-Flow Turbine, Studying Airfoil Effect in the Entrance (3 different models)

In this project, cavitation in a cross-flow turbine was simulated using the CFD numerical modeling method and the Ansys Fluent software. In most turbines, the flow of fluid is either vertical or circular. In this turbine, the flow is crosswise. This type of turbine moves slowly and is used in places that need a low head and a high flow. This job was done in three main parts. In the first case, there is no airfoil at the entrance. In the second case, an airfoil is put at the entrance to avoid cavitation. In the third case, compared to the second case, the angle of the airfoil is 15 degrees in a clockwise direction.

Oscillatory Wave and its Effect on Fin Motion

The product comes with a full guide on how to use ANSYS Fluent software to model how a flexible fin moves in an oscillating wave. It has step-by-step steps on how to make the 3D shape of the fin, how to mesh the domain, how to set up the boundary conditions, and how to set the solver settings for the simulation. The learning product also has input files, boundary conditions, and other tools to help you get started with your own modeling projects for oscillatory wave and fin motion. By doing the tasks, you will learn more about how oscillatory waves affect the movement of fins and how the ANSYS Fluent software can be used to simulate fluid flow and heat transfer. Overall, the oscillatory wave and how it affects the movement of the fins The ANSYS Fluent CFD Simulation Learning Product is a useful tool for engineers and students who want to use the ANSYS Fluent software to simulate the effect of oscillatory waves on the movement of fins and improve their design and performance.

Earthquake Effect on Dam

ANSYS Fluent software can be used to simulate the effect of earthquakes on dams. The simulation can be used to analyze the structural integrity of the dam and its ability to withstand the forces generated by the earthquake. To simulate the effect of an earthquake on a dam using ANSYS Fluent software, you will need to create a 3D model of the dam and the surrounding environment. The model should include the geometry of the dam, the water reservoir, and the surrounding terrain. You will also need to define the boundary conditions, such as the earthquake loading, the water level, and the soil properties. Once you have created the 3D model and defined the boundary conditions, you can use ANSYS Fluent software to simulate the fluid-structure interaction (FSI) between the water and the dam. The FSI simulation will help you to analyze the dynamic response of the dam to the earthquake loading and the resulting water pressure. The ANSYS Fluent software provides a comprehensive set of tools for simulating fluid flow, heat transfer, and structural mechanics. It is widely used in engineering and research communities for simulating complex fluid-structure interaction problems, including the effect of earthquakes on dams. Although there is no specific tutorial available for simulating the effect of earthquakes on dams using ANSYS Fluent software, there are many resources available online, including user guides, tutorials, and forums, that can help you get started with your own simulation project.

Archimedes Screw Turbine (AST)

8The Archimedes Screw engine (AST) is a type of hydroelectric engine that uses a spinning screw to turn the movement of water into mechanical energy. Simulations of computational fluid dynamics (CFD) can be used to study how well the AST works and improve its design for maximum efficiency. To use CFD to demonstrate how an AST works, you will need to make a 3D model of the rotor and the fluid domain around it. The model should show the shape of the screw, where the water goes in and out, and the surroundings around it. You will also need to describe the boundary conditions, such as the rate of water flow, the speed of the screw’s spin, and the pressure at the inlet and exit. Once you’ve made the 3D model and set the boundary conditions, you can use CFD tools like ANSYS Fluent to predict the flow of fluids and pressure distribution inside the turbine. The program will help you figure out how well the AST works and where it can be improved, like the shape and size of the screw, the angle of the blades, and how far apart the blades are. ANSYS Fluent has all the tools you need to simulate fluid flow, heat transfer, and turbulence. It is used a lot in engineering and study to simulate complicated fluid flow problems, like how well hydroelectric generators like the AST work. Even though there isn’t a specific lesson for using ANSYS Fluent software to simulate the performance of an AST, there are many user guides, tutorials, and groups online that can help you get started with your own simulation project.

Rotation of a Cube Considering Sloshing

With ANSYS Fluent software, it can be hard and complicated to simulate the movement of a cube with sloshing. But with the right training and help, it is possible to make an accurate modeling of the fluid-structure interaction (FSI) between the cube and the moving fluid. To use ANSYS Fluent to simulate the spinning of a cube with sloshing, you will need to make a 3D model of the cube and the fluid domain around it. The model should include the geometry of the cube, the fluid region, and the border conditions, such as the properties of the fluid, the starting conditions, and the speed of spinning of the cube. Once you’ve made the 3D model and set the boundary conditions, you can use ANSYS Fluent software to mimic the flow of fluids and pressure distribution inside the cube. The simulation will help you figure out how to improve the FSI between the cube and the moving fluid by looking at the form and size of the cube, the properties of the fluid, and the speed of the spin. ANSYS Fluent has a full set of tools for modeling fluid movement, heat transfer, and the mechanics of structures. It is used a lot in engineering and study to simulate complicated fluid-structure interaction problems, like the spinning of a cube with water moving through it. You can sign up for ANSYS Fluent training classes to learn how to use the software to model the rotation of a cube with sloshing. These lessons teach you how to use the ANSYS Fluent software to make simulations that are correct and run quickly. ANSYS Fluent also has user guides, tutorials, and groups that can help you get started with your own modeling project.

Cavitation in a Radial Flow Pump

ANSYS Fluent software can be used to simulate cavitation in a radial flow pump, which can help examine the pump’s performance and find places where it could be better. Cavitation is a common problem with pumps that can cause them to work less well, wear out faster, or even break. With the right training and direction, it is possible to use ANSYS Fluent software to make an accurate modeling of cavitation in a radial flow pump. To use the ANSYS Fluent program to generate cavitation in a radial flow pump, you will need to make a 3D model of the pump and the fluid domain around it. The geometry of the pump, the fluid domain, and the boundary conditions, such as the properties of the fluid, the speed of the pump, and the conditions at the input and exit, should all be part of the model. Once you’ve made the 3D model and set the boundary conditions, you can use ANSYS Fluent software to mimic the flow of fluid and pressure inside the pump. The program will help you figure out what causes cavitation and where you can make changes, such as the shape and size of the pump’s impeller, the properties of the fluid, and the conditions at the pump’s input and exit. ANSYS Fluent has all the tools you need to simulate fluid flow, heat transfer, and turbulence. It is used a lot in engineering and study to simulate complicated fluid flow problems, like how well pumps and generators work. Follow ANSYS Fluent lessons to learn how to model cavitation in a radial flow pump using ANSYS Fluent software. Many lessons for ANSYS Fluent cover different parts of fluid flow models, such as cavitation in pumps. These lessons show you step-by-step how to use ANSYS Fluent software to make simulations that are correct and efficient. ANSYS Fluent also has user guides, tutorials, and groups that can help you get started with your own modeling project.

Water Wheel (Pelton Wheel)

9ANSYS Fluent software can be used to simulate a water wheel, also called a Pelton wheel, which can help study the wheel’s performance and find ways to make it better. A water wheel is a type of engine that uses the energy of moving water to power a machine. With the right training and help, ANSYS Fluent software can be used to make an accurate recreation of a water wheel. To use ANSYS Fluent software to generate a water wheel, you will need to make a 3D model of the wheel and the flowing domain around it. The model should include the shape of the wheel, the fluid domain, and the border conditions, such as the properties of the fluid, the conditions at the entrance and exit, and the speed at which the wheel turns. Once you’ve made the 3D model and set the boundary conditions, you can use ANSYS Fluent software to mimic the fluid flow and pressure distribution inside the water wheel. The simulation will help you figure out how well the wheel works and what needs to be changed, such as the shape and size of the blades, the properties of the fluid, and the conditions at the input and exit. ANSYS Fluent has all the tools you need to simulate fluid flow, heat transfer, and turbulence. It is used a lot in engineering and study to simulate complicated fluid flow problems, like how turbines and other devices that change energy work. You can sign up for ANSYS Fluent training classes to learn how to model a water wheel with the software. These lessons teach you how to use the ANSYS Fluent software to make simulations that are correct and run quickly. ANSYS Fluent also has user guides, tutorials, and groups that can help you get started with your own modeling project.

Sloshing Tank

ANSYS Fluent software can be used to simulate a sloshing tank. This can help study the fluid mechanics of the tank and find places where it could be improved. A sloshing tank is a type of liquid storage tank that is made to hold fuels, chemicals, and water that move around when they are stored. ANSYS Fluent software can be used to make an accurate example of a sloshing tank with the right training and direction. To use ANSYS Fluent software to recreate a swirling tank, you will need to make a 3D model of the tank and the fluid domain around it. The geometry of the tank, the fluid domain, and the boundary conditions, such as the properties of the fluid, the conditions at the inlet and exit, and the moves of the tank, should all be part of the model. Once you’ve made the 3D model and set the boundary conditions, you can use ANSYS Fluent software to mimic the fluid flow and pressure distribution inside the moving tank. The simulation will help you figure out what needs to be changed in the tank, such as the shape of the tank, the properties of the fluid, and the conditions at the entrance and exit. ANSYS Fluent has all the tools you need to simulate fluid flow, heat transfer, and turbulence. It is used a lot in engineering and study to simulate complicated fluid flow problems, like how swirling tanks work. You can sign up for ANSYS Fluent training classes to learn how to model a moving tank with this software. These lessons teach you how to use the ANSYS Fluent software to make simulations that are correct and run quickly. ANSYS Fluent also has user guides, tutorials, and groups that can help you get started with your own modeling project.

Open Channel with a Side Outlet

ANSYS Fluent software can be used to simulate an open channel with a side exit so that the flow and spread of pressure inside the channel can be studied and areas for improvement can be found. An open channel with a side exit is a type of fluid flow system that is often used in civil engineering projects like drainage systems and irrigation systems. With the right training and help, it is possible to use ANSYS Fluent software to make an accurate model of an open channel with a side exit. To use ANSYS Fluent to generate an open channel with a side exit, you will need to make a 3D model of the channel and the fluid domain around it. The model should include the shape of the channel, the fluid domain, and the border conditions, such as the properties of the fluid, the conditions at the entrance and exit, and the geometry of the side outlet. Once you have made the 3D model and set the boundary conditions, you can use ANSYS Fluent software to mimic the fluid flow and pressure distribution inside the channel. The example will help you figure out how the fluid moves through the tube and out of the side outlet. ANSYS Fluent has all the tools you need to simulate fluid flow, heat transfer, and turbulence. It is used a lot in engineering and study to simulate complicated fluid flow problems, like how fluid moves through open pathways with side outlets. If you want to learn how to use ANSYS Fluent software to model an open channel with a side outlet, you can find free tutorials for ANSYS Fluent. These lessons show step-by-step how to use ANSYS Fluent software to make accurate and efficient models. ANSYS Fluent also has user guides, tutorials, and groups that can help you get started with your own modeling project.

Hydraulic Structures in Civil Engineering Industrial Companies

Various industrial firms specialize in the design, building, and maintenance of civil engineering hydraulic structures. Among the most prominent are:

Bechtel Corporation: Bechtel is a multinational engineering, construction, and project management corporation with substantial experience in the design and construction of hydraulic infrastructure, such as dams, levees, and canals.

Kiewit Corporation: Kiewit is a construction and engineering business that specializes in infrastructure projects, such as dams, locks, and spillways.

AECOM: AECOM is a global engineering and construction corporation that provides design, construction, and maintenance services for hydraulic structures.

Stantec: Stantec is a multinational engineering and consulting firm that provides a variety of services for hydraulic structures, including design, construction, and risk evaluation.

Black & Veatch: Black & Veatch is a multinational engineering, construction, and consulting firm that specializes in infrastructure projects, such as dams, levees, and canals.

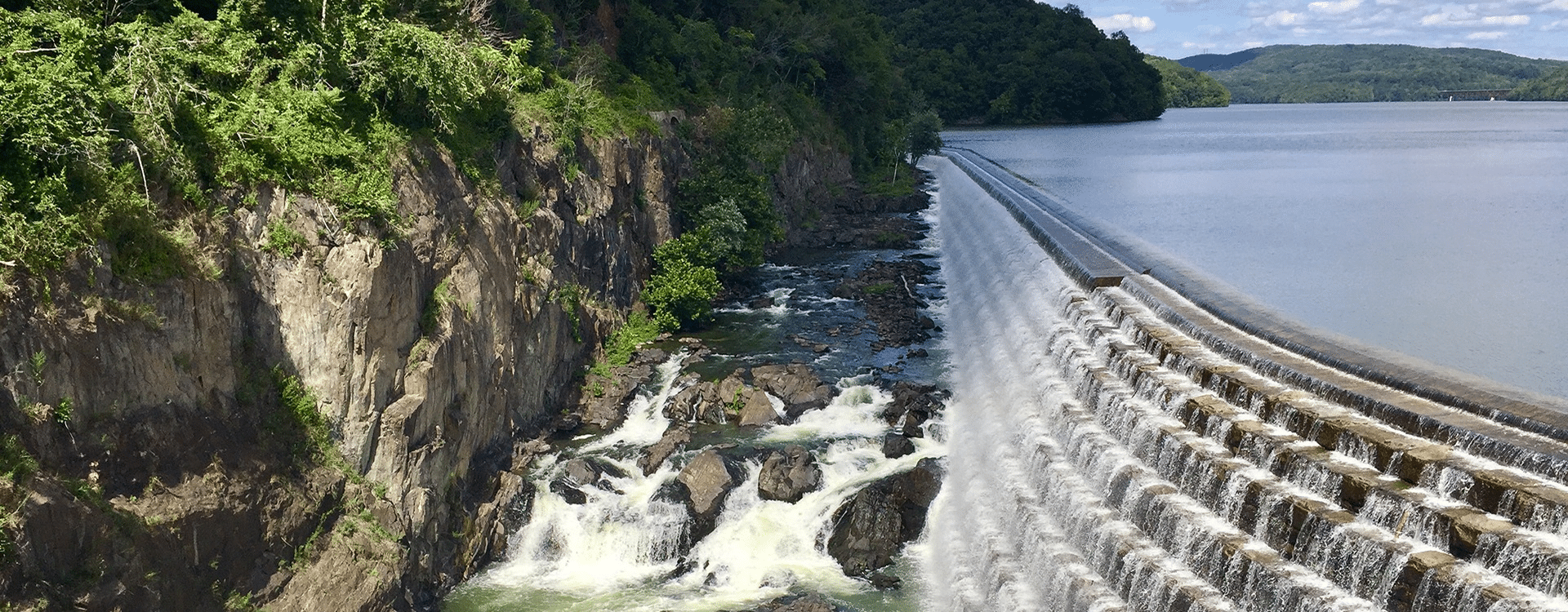

10These businesses have substantial expertise in the design, building, and maintenance of hydraulic structures in civil engineering, and they have participated in global projects. They know and means to complete difficult projects on schedule and under budget while maintaining high standards of quality and safety.

MR CFD Industrial Experience in the Hydraulic Structures in Civil Engineering Field

Following is an example of Hydraulic Structures in Civil industrial projects recently simulated and analyzed by MR CFD in cooperation with related companies.

Pelton Wheel Turbine, Numerical Study, Industrial Application

The Pelton Wheel Turbine is a type of hydraulic turbine that turns the energy of water into mechanical energy. It is used in hydroelectric power plants. A Numerical Study of the Pelton Wheel Turbine can be used to improve its design and performance and to predict how it will act under different working situations. The study uses computational fluid dynamics (CFD) tools like ANSYS Fluent to model how water flows through the turbine and figure out how much torque and power it produces. The Pelton Wheel Turbine is used in industry to do things like make electricity from electrical power plants and make high-pressure water jets for cutting and cleaning in the industry. The numerical study can be used to maximize the design of the turbine for certain purposes, such as maximizing power output for a given flow rate or reducing cavitation and erosion in high-pressure water jet applications. Usually, the study includes making a 3D model of the Pelton Wheel Turbine, which shows the shape of the turbine blades, the nozzle, and the input and exit channels. The model is then “meshed” to make a numerical grid. ANSYS Fluent software is then used to mimic the flow of water through the turbine. The results of the modeling can be used to improve the design of the turbine, including the shape and size of the blades, the shape of the nozzle, and the location of the input and exit channels. Overall, a numerical study of the Pelton Wheel Turbine can give useful information about how the turbine works and how it behaves. This information can be used to improve the design of the turbine for certain commercial uses.


MR CFD  conducted numerous outsourced CFD simulation projects for industrial companies and research in Hydraulic Structures in Civil Engineering applications. With several years of experience simulating various problems in various CFD fields using ANSYS Fluent software, the MR CFD is ready to offer extensive  CFD Simulation, Training, and Consultation services.

You may find the Learning Products in the Hydraulic Structures in Civil Engineering CFD simulation category in Training Shop. You can also benefit from Hydraulic Structures in Civil Engineering Training Packages appropriate for Beginner, Intermediate, and Advanced users of ANSYS Fluent. Also, MR CFD is presenting the most comprehensive Hydraulic Structures in Civil Engineering Training Course for all ANSYS Fluent users from Beginner to Experts.

Our services are not limited to the mentioned subjects. The MR CFD is ready to undertake different and challenging projects in the Hydraulic Structures in the Civil Engineering modeling field ordered by our customers. We even carry out CFD simulations for any abstract or concept design you have to turn them into reality and even help you reach the best strategy for what you may have imagined. You can benefit from MR CFD expert Consultation for free and then Outsource your Industrial and Academic CFD project to be simulated and trained.

By outsourcing your project to MR CFD as a CFD simulation consultant, you will not only receive the related project’s resource files (Geometry, Mesh, Case & Data, …), but also you will be provided with an extensive tutorial video demonstrating how you can create the geometry, mesh, and define the needed settings(pre-processing, processing, and post-processing) in the ANSYS Fluent software. Additionally, post-technical support is available to clarify issues and ambiguities.
