Heat pipe CFD Simulation Using VOF Multiphase Model

$160.00 Student Discount

  • The problem numerically simulates a Heat pipe using ANSYS Fluent software.
  • We design the 3-D model by the Design Modeler software.
  • We Mesh the model by ANSYS Meshing software, and the element number equals 18000.
  • We perform this simulation as unsteady (Transient).
  • We use the VOF Multi-Phase model to define Mass Transfer in the form of Evaporation-Condensation.



Click on Add To Cart and obtain the Geometry file, Mesh file, and a Comprehensive ANSYS Fluent Training Video.

To Order Your Project or benefit from a CFD consultation, contact our experts via email ([email protected]), online support tab, or WhatsApp at +44 7443 197273.

There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via [email protected] after you buy the product.

Special Offers For Single Product

If you need the Geometry designing and Mesh generation training video for one product, you can choose this option.
If you need expert consultation through the training video, this option gives you 1-hour technical support.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.
editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
The MR CFD certification can be a valuable addition to a student resume, and passing the interactive test can demonstrate a strong understanding of CFD simulation principles and techniques related to this product.
Enhancing Your Project: Comprehensive Consultation and Optimization Services
Collaborative Development of a Conference Paper on Cutting-Edge Topics with MR CFD
Collaborative Publication Opportunity: Contribute to an ISI Article and Get Featured in Scopus and JCR-Indexed Journals

Description

Heat pipe CFD Simulation Using Multiphase VOF Model, Ansys Fluent Training

In this project, a heat pipe using the multiphase VOF model has been simulated, and the simulation results have been investigated using ANSYS Fluent software. We perform this CFD project and investigate it by CFD analysis.

The present model is designed in three dimensions using the Design Modeler software. The dimensions of the present geometry include a rectangle 10 cm long and 1.2 cm wide.

This geometry is meshed in Ansys meshing software, and the total number of cells is 18000.

Also, due to the nature of the present problem, the transient solver has been used.

Heat Pipe Methodology

This study simulated the heat pipe problem using Ansys Fluent software. The project was analyzed using the multiphase VOF model and activating the mass transfer of evaporation and condensation.

A hot wall with a temperature of 400 K and a cold surface with a temperature of 300 K was assumed. Solving the problem in a time-dependent manner, the formation of water droplets in the upper part of the geometry and their downward movement were observed due to capillary and gravity.

Also, the Saturation property was entered piecewise linearly. Moreover, the realizable k-epsilon model is used to solve turbulent fluid equations.

Heat Pipe Conclusion

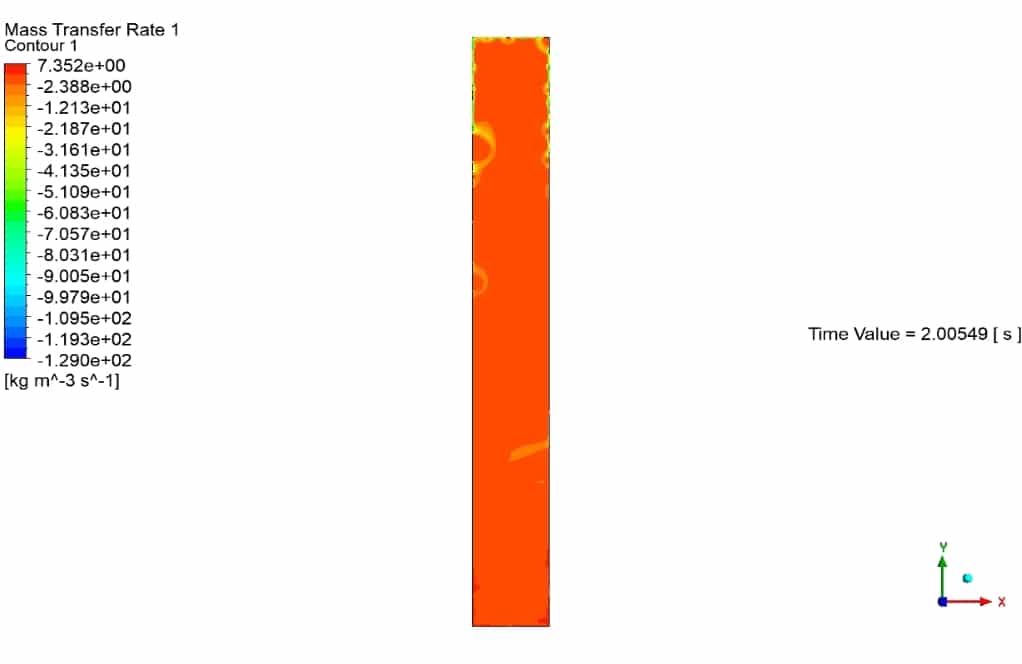

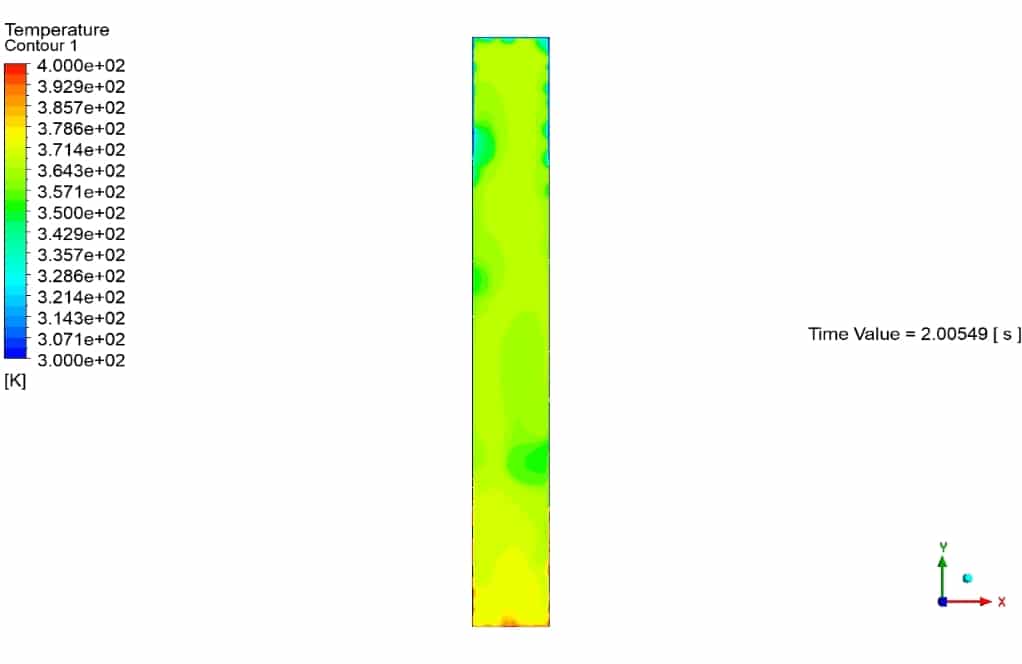

At the end of the solution process, two-dimensional contours related to water and vapor volume fraction, mass transfer rate,  and temperature are obtained.

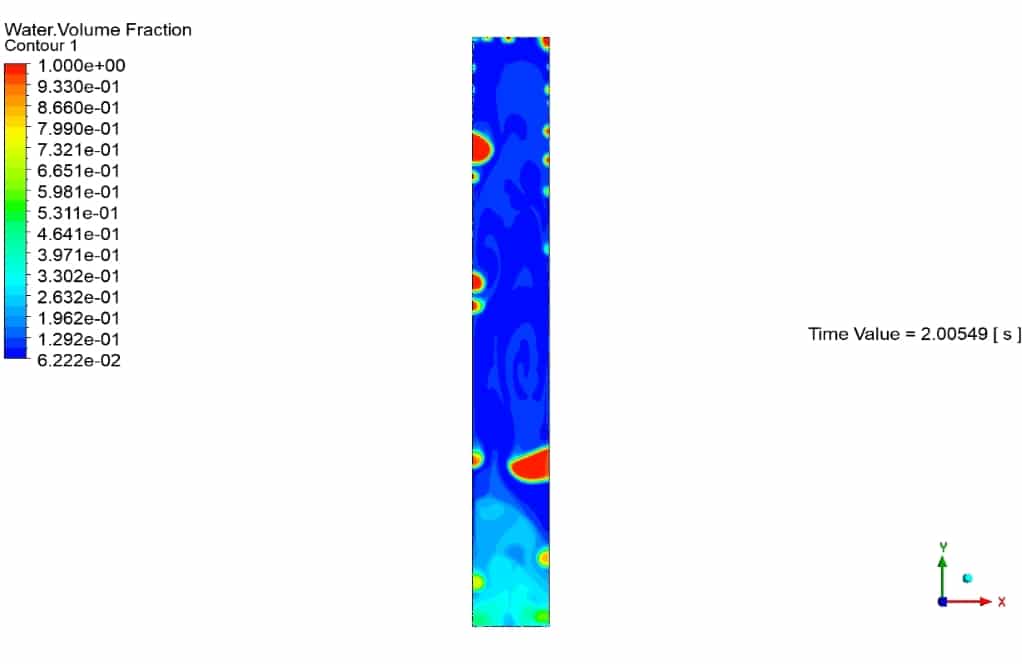

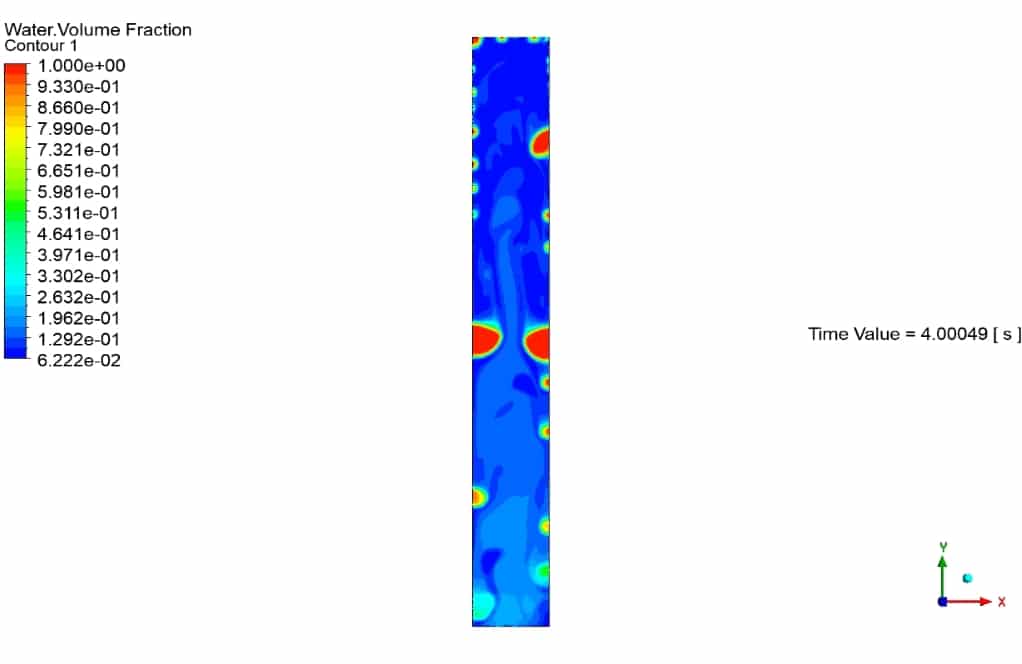

By observing the volume fraction contours of the water at two different times, it is clear that the repetition loop of the evaporation & condensation process has been established. The droplets formed at the top of the tube move downwards due to gravity and wall capillary.

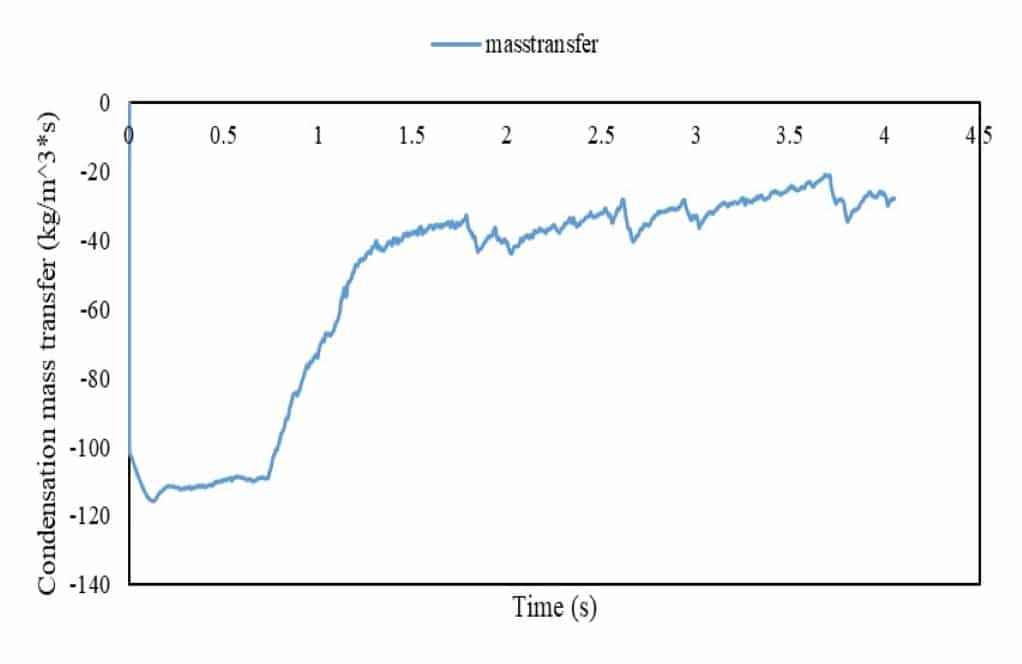

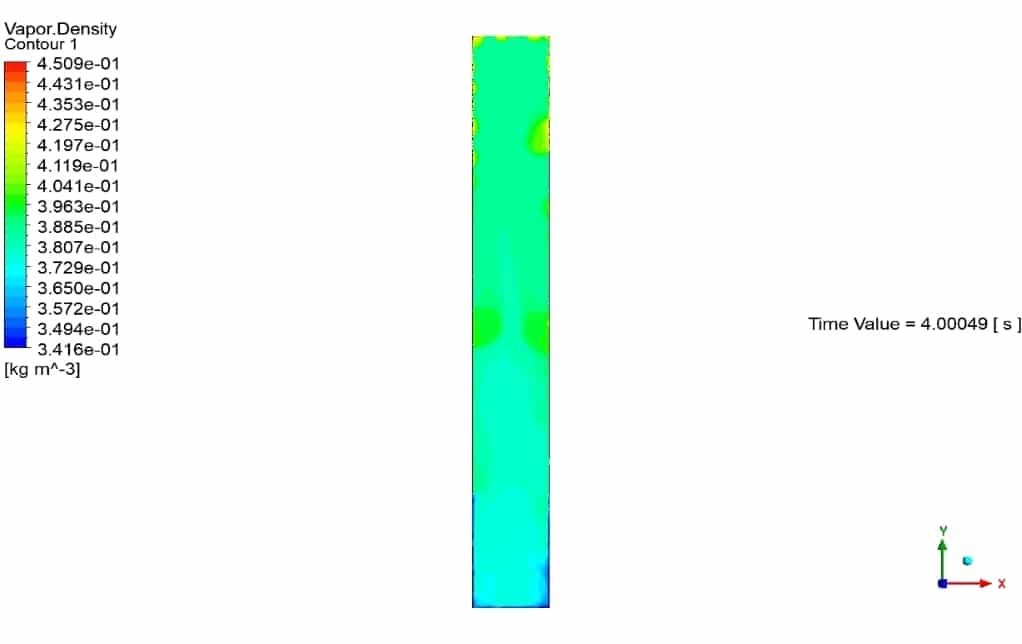

In addition, mass transfer, temperature, and vapor phase densities are included. The density of the vapor changes over time because it follows the ideal gas law. The mass transfer rate tended toward an average value. This indicates a balance between evaporation and condensation inside the heat pipe.

Heat Pipe
