- This project aimed to simulate the performance of a heat pump dryer designed for drying wet wood volatiles.
- The Volume of Fluid (VOF) method was employed to capture the interaction between air and liquid water phases.
- Species Transport Model was activated to simulate the mass transfer associated with water evaporation.
- A User-Defined Function (UDF) was developed to represent the evaporation process accurately.
To Order Your Project or benefit from a CFD consultation, contact our experts via email ([email protected]), online support tab, or WhatsApp at +44 7443 197273.
There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via [email protected] after you buy the product.
Description
Numerical Investigation of Heat and Mass Transfer in a Heat Pump Dryer for Efficient Drying of Wet Wood Plates Using CFD and UDF for Mass Transfer Modeling
Description
Heat pump dryers are advanced drying systems that utilize the principles of heat transfer and thermodynamics to remove moisture from materials efficiently. Unlike conventional dryers, heat pump dryers recycle heat within the system, reducing energy consumption and enhancing drying efficiency. These systems are particularly suitable for applications requiring precise temperature and humidity control, making them ideal for drying sensitive materials such as wood, food products, and textiles. By employing a closed-loop system with a heat pump, these dryers can achieve significant energy savings while maintaining the quality of the dried material.
This project aimed to simulate and analyze the performance of a heat pump dryer designed for drying wet wood volatiles placed on five separate plates. The system operates by circulating air with 40% initial humidity at a velocity of 2 m/s. A heater reduces the humidity of the air, which is then directed to dry the wet material on the plates. The drying process involves complex heat and mass transfer mechanisms, including evaporation, modeled using computational fluid dynamics (CFD).

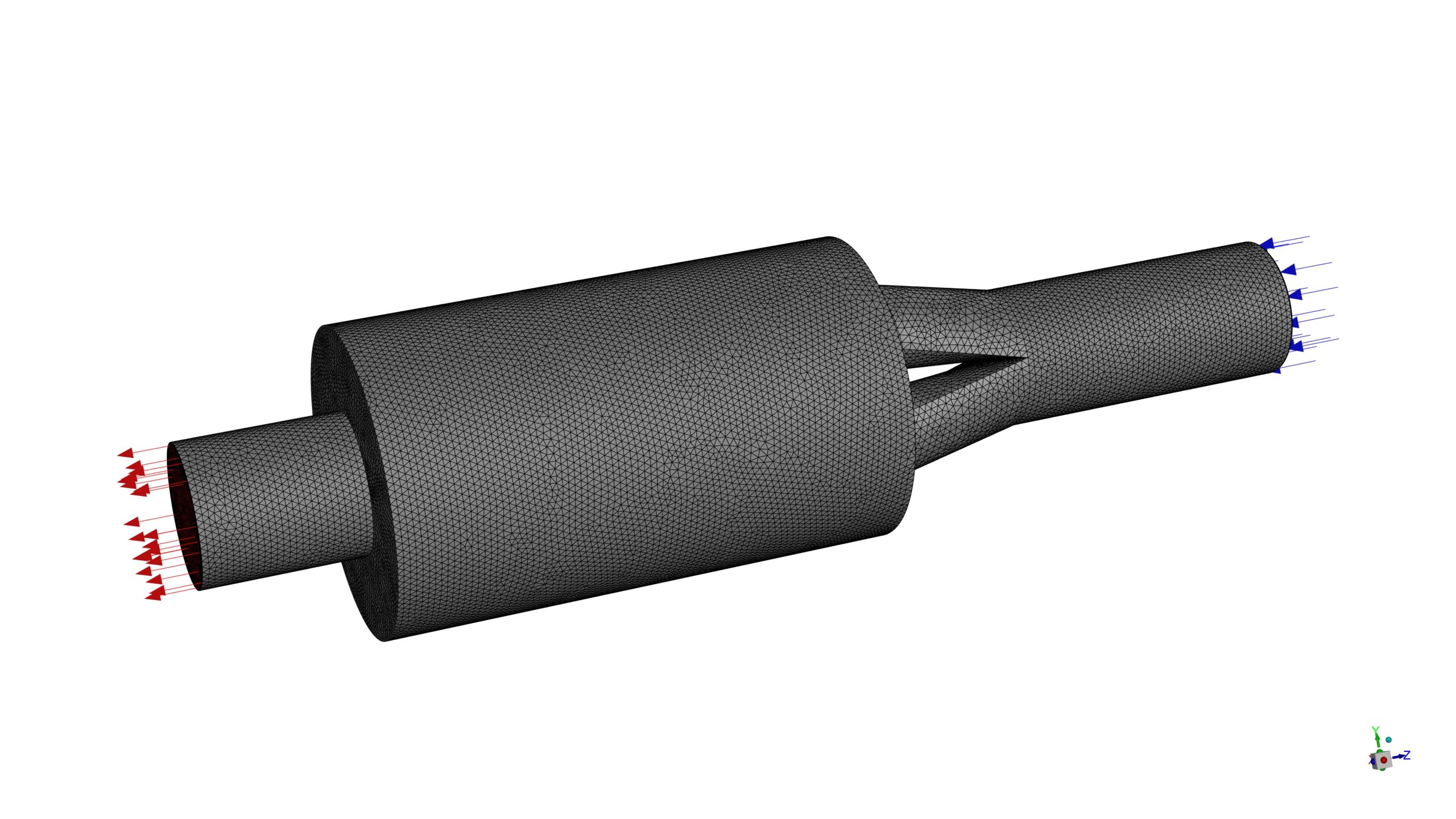

The geometry of the heat pump dryer, including the plates, was created in SpaceClaim. The design ensures efficient air circulation and contact with the wet surfaces. The mesh, consisting of approximately 500,000 elements, was generated in ANSYS Meshing, ensuring a balance between computational efficiency and result accuracy
Methodology
Simulation Setup in ANSYS Fluent The simulation was carried out in ANSYS Fluent using the following models and configurations:
- Multiphase Flow Modeling: The Volume of Fluid (VOF) method was employed to capture the interaction between air and liquid water phases.
- Species Transport Model: This model was activated to simulate the mass transfer associated with water evaporation.
- Evaporation Modeling with UDF: A User-Defined Function (UDF) was developed to represent the evaporation process accurately. The UDF incorporated:
- Mass transfer rate calculations between liquid water and air.
- Water vapor pressure estimation using the Antoine equation.
- Volume fraction-based contact area estimation between water and air.
- Enhanced evaporation under low humidity conditions.
- Boundary Conditions: The air inlet was set at a velocity of 2 m/s with 40% initial humidity. The heater was modeled to preheat the air, reducing its humidity before entering the drying chamber.
Results
The simulation provided detailed insights into the drying process, which were visualized through animations and plots. The key findings are summarized below:
Relative Humidity Distribution

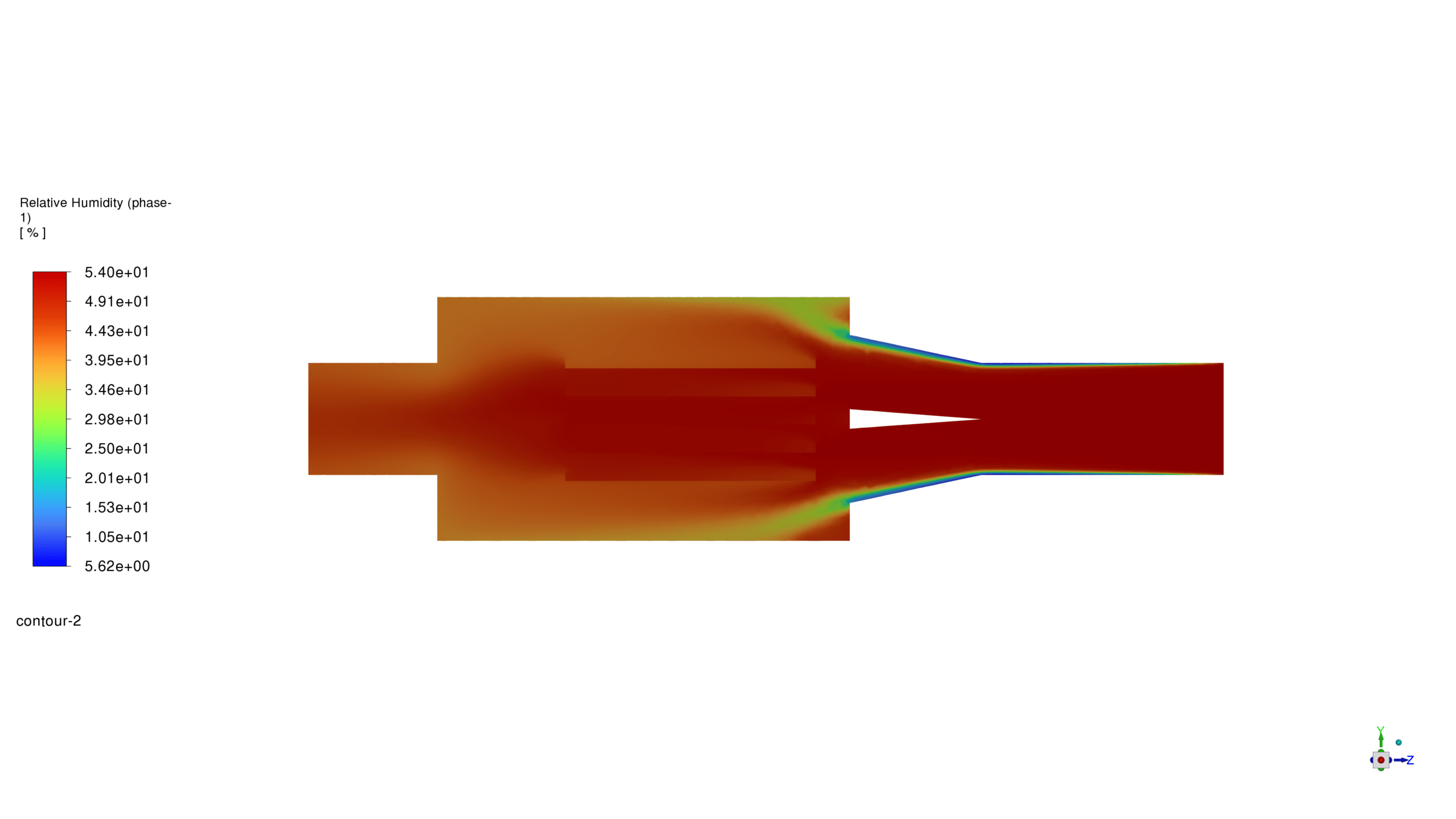

The relative humidity plot shows a gradual reduction in humidity as the air passes through the dryer. The regions near the wood plates demonstrate a higher moisture concentration due to evaporation. The air’s lower humidity towards the outlet indicates effective moisture removal facilitated by the heat pump dryer.
Molar Concentration of Water

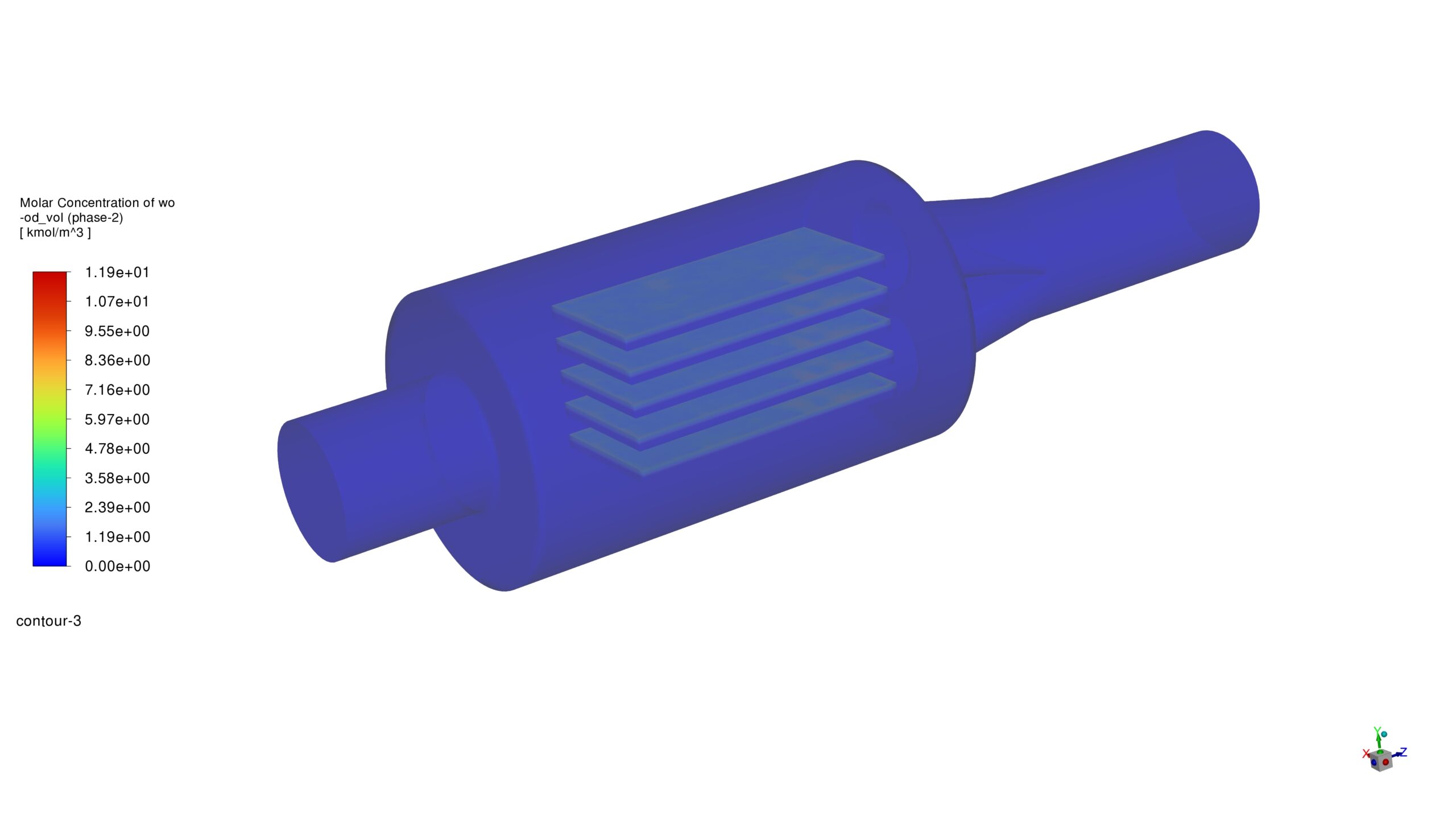

The molar concentration plot highlights the distribution of water vapor within the dryer. Near the wood plates, the vapor concentration is significantly higher, showcasing the evaporation process. The airflow removes the moisture, demonstrating the system’s efficiency in transporting water vapor to the outlet.
Temperature Distribution

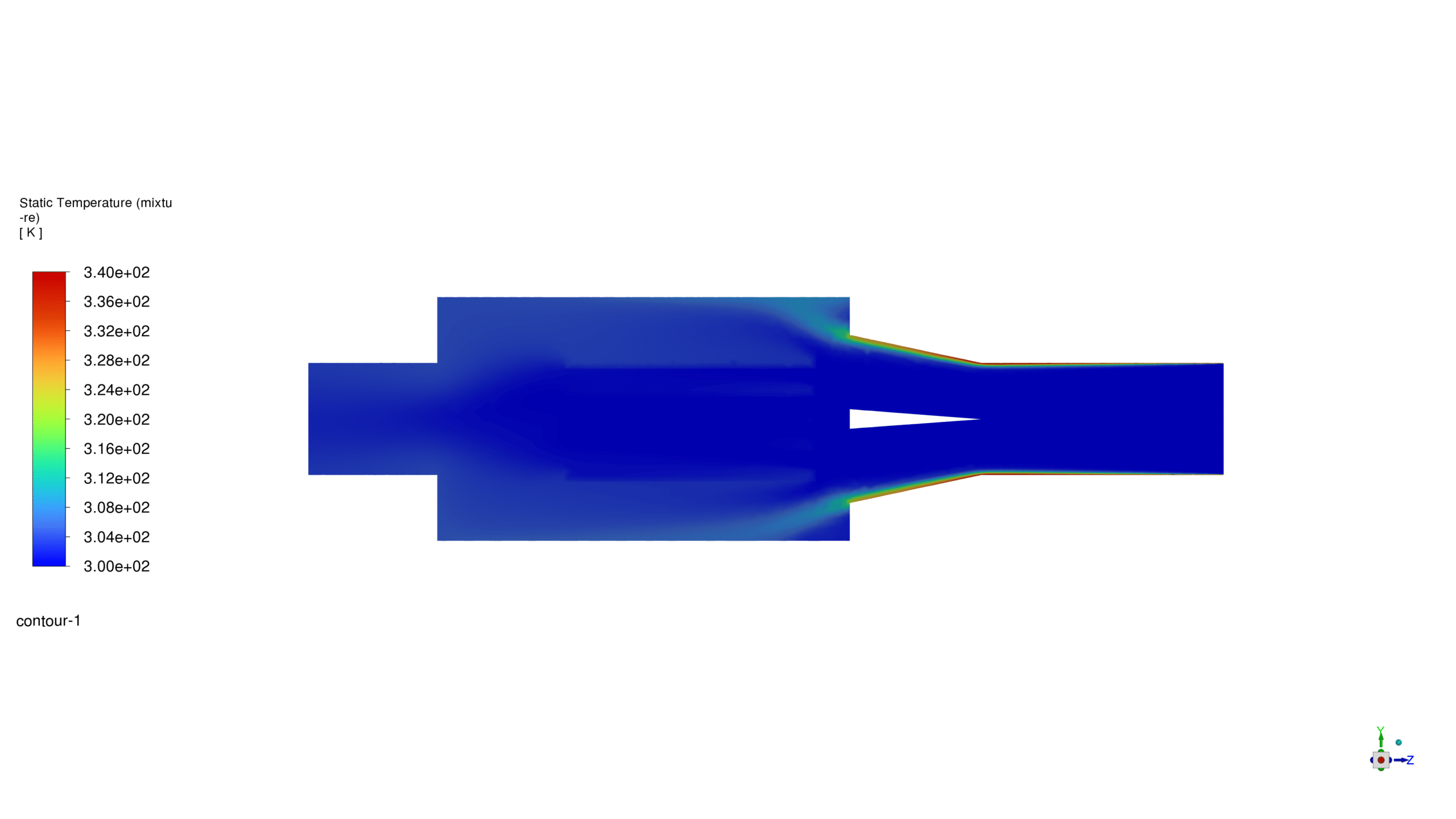

The temperature contour illustrates uniform heating in the drying chamber. Elevated temperatures near the inlet demonstrate the heating process, which lowers air humidity and facilitates water evaporation from the wood surfaces. The stable temperature throughout the domain ensures consistent drying.
Velocity Distribution

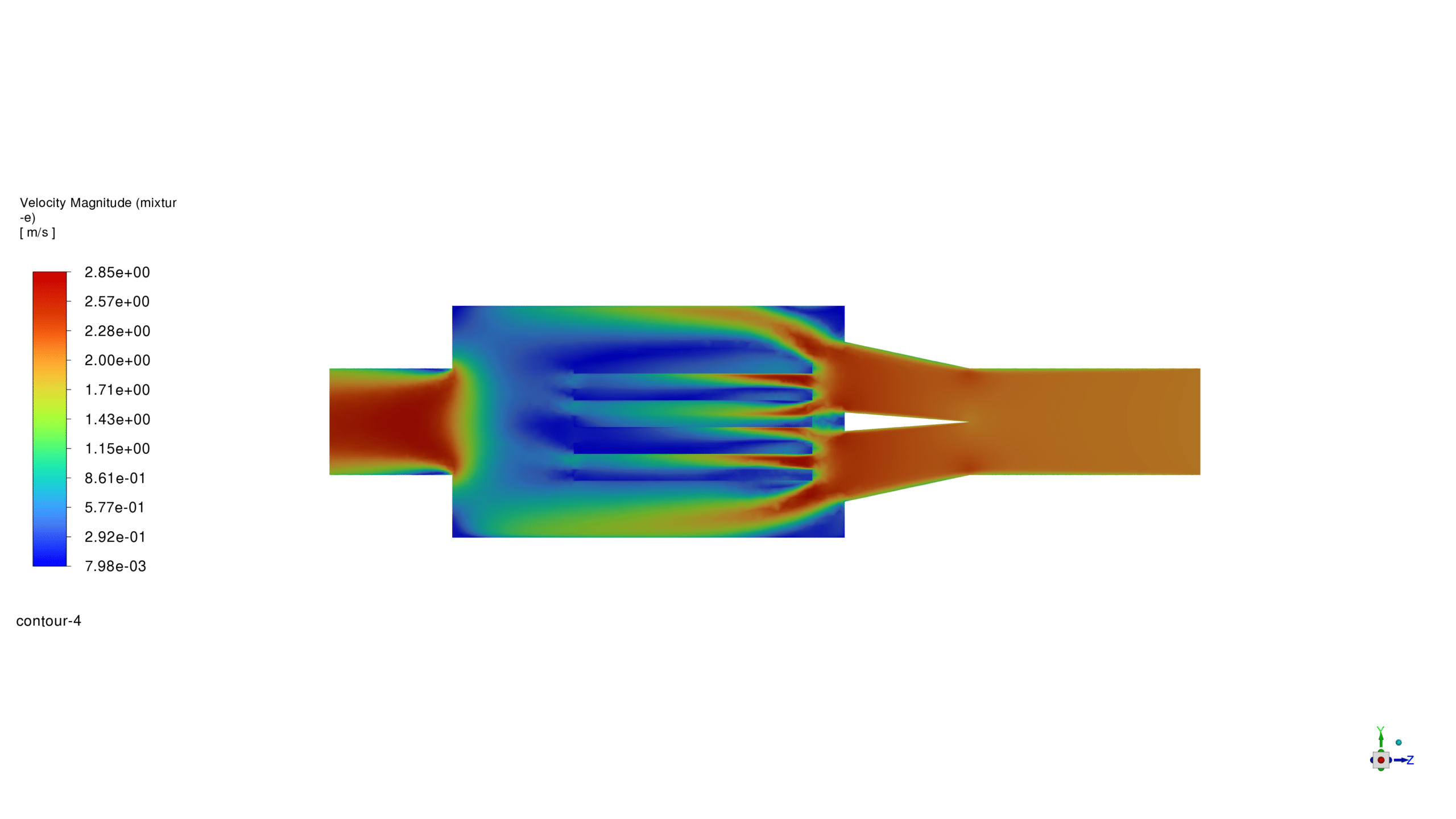

The velocity contour reveals airflow patterns inside the dryer. The air accelerates through constricted regions and interacts effectively with the wood plates. This enhances mass and heat transfer processes, which are critical for efficient drying. The uniform distribution across the plates ensures balanced drying across all surfaces.
Conclusion
The CFD simulation successfully demonstrated the heat pump dryer’s operational efficiency. The VOF method, species transport model, and custom UDF accurately represented the evaporation process. The results validate the system’s design, highlighting its potential for efficiently drying wet wood volatiles. Future work may focus on optimizing plate configuration and further exploring different airflow strategies to enhance drying performance.
