Radial PEMFC Fuel Cell CFD Simulation, ANSYS Fluent

$270.00 Student Discount

  • The problem numerically simulates a Radial Fuel Cell using ANSYS Fluent software.
  • We design the 3-D model with the Design Modeler software.
  • We mesh the model with ANSYS Meshing software, and the element number equals 2,393,706.
  • We use the Fuel Cell and Electrolysis Model to define a fuel cell.
  • We used the PEMFC sub-model to define a proton exchange membrane fuel cell.
  • We used the Species model to define H2, O2, and H2O.
Click on Add To Cart and obtain the Geometry file, Mesh file, and a Comprehensive ANSYS Fluent Training Video.

To Order Your Project or benefit from a CFD consultation, contact our experts via email ([email protected]), online support tab, or WhatsApp at +44 7443 197273.

There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via [email protected] after you buy the product.

Special Offers For Single Product

If you need the Geometry designing and Mesh generation training video for one product, you can choose this option.
If you need expert consultation through the training video, this option gives you 1-hour technical support.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.
editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
The MR CFD certification can be a valuable addition to a student resume, and passing the interactive test can demonstrate a strong understanding of CFD simulation principles and techniques related to this product.
Enhancing Your Project: Comprehensive Consultation and Optimization Services
Collaborative Development of a Conference Paper on Cutting-Edge Topics with MR CFD
Collaborative Publication Opportunity: Contribute to an ISI Article and Get Featured in Scopus and JCR-Indexed Journals
If you want training in any language other than English, we can provide you with a subtitled video in your language.

Description

Radial Fuel Cell, Proton Exchange Membrane Fuel Cell, PEMFC, CFD Simulation, ANSYS Fluent Tutorial

Description

In this project, we perform the numerical simulation of a Radial Fuel Cell using ANSYS Fluent software.

This product is the 3rd chapter of the Fuel Cell Training Course.

A fuel cell is an energy conversion device that converts the chemical energy of fuel into electrical energy. A fuel cell produces electricity through a chemical reaction.

Fuel cells have two electrical poles (electrodes) called anode and cathode. These chemical reactions take place in these electrodes and lead to the production of electricity.

In addition, fuel cells have an electrolyte and a catalyst. The electrolyte layer is used to transport charged particles (ions) between the electrodes, while the catalyst layer increases the speed of reactions in the electrode layers.The hydrogen is fed to the fuel cell as the main fuel. However, oxygen is also required for the reaction to take place.

One of the most important advantages of the fuel cell is that electricity is produced with the least amount of pollution. In fact, most of the oxygen and hydrogen input to the fuel cell is eventually released in the form of a harmless byproduct, that is, water. Another advantage of fuel cell is that fuel cell produces electricity chemically and not by combustion reaction. Therefore, the fuel cell is more efficient in producing energy from fuel.

There are different types of fuel cells. In this project, we have simulated the proton exchange membrane fuel cell (PEMFC).

Fuel cells have different configurations. In this project, we used a radial fuel cell. In a radial fuel cell, gas flow channels enter radially from the center of the cell and exit from its periphery.

Fuel Cell Methodology

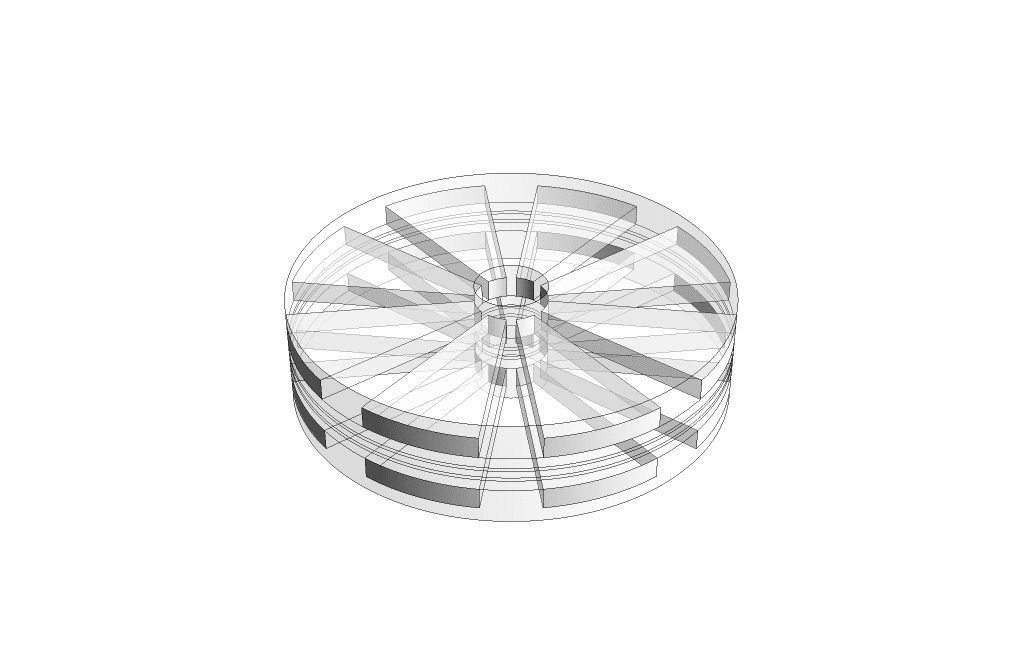

We simulated this project based on the CFD method by ANSYS Fluent software. First, we designed the geometry of the model in 3D using Design Modeler software. The computational domain of the model is related to the interior space of a  fuel cell.

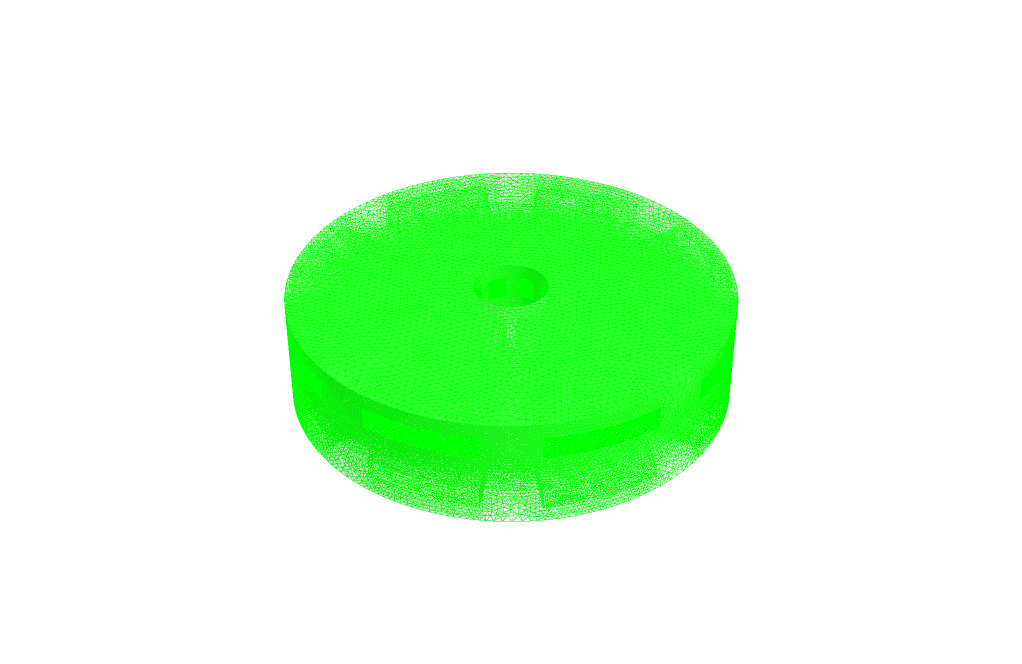

Then, we meshed the model using ANYS Meshing software. The meshing is unstructured, and 2,393,706 cells are generated. Finally, we performed the simulation process in Fluent software.

For this simulation, we used the fuel cell model in Ansys Fluent software. The fuel cell model is an add-on module in Ansys Fluent software.

There are three different fuel cell add-on modules available in the software. We have used the fuel cell and electrolysis model. Here, there are three submodels. We have used the PEMFC model.

In the fuel cell model setting, we determine the different layers of the fuel cell. These layers include the cathode and anode layers, along with the electrolyte layer. Each of the anode and cathode layers consists of current collectors, gas diffusion layers (electrode layers), catalyst layers, and flow channels.

Since we used the fuel cell model, the species transport model is automatically activated. The species transport model defines the species present in the fuel cell, including H2, O2, and H2O.

Fuel Cell Conclusion

After conclusion, we have obtained the contours related to electric potential, protonic potential, water content, current flux density magnitude, transfer current, and mass fraction of H2, O2, and H2O.

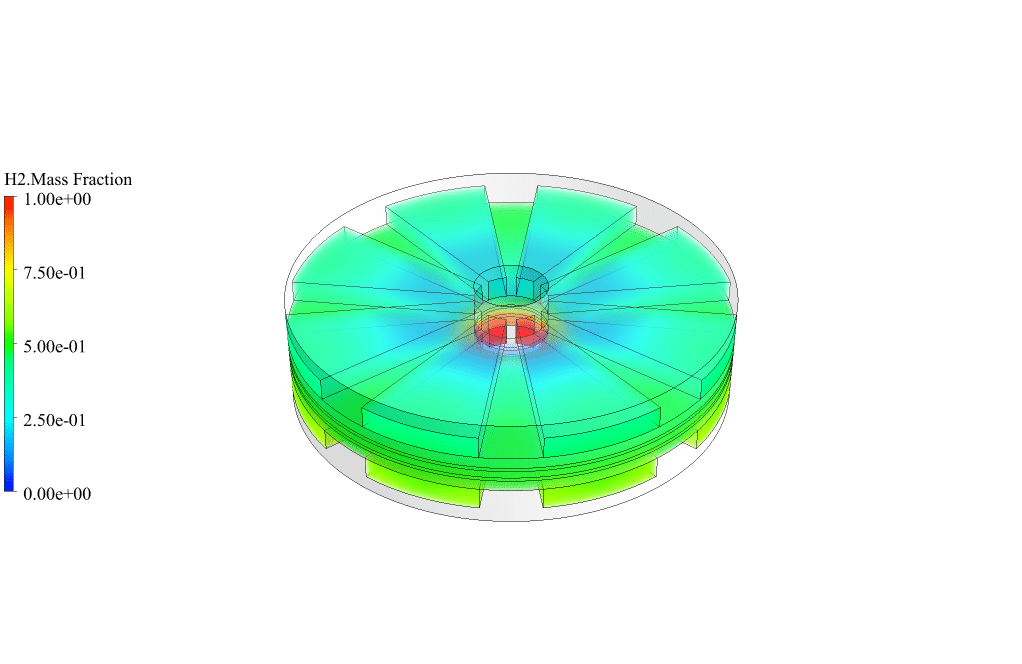

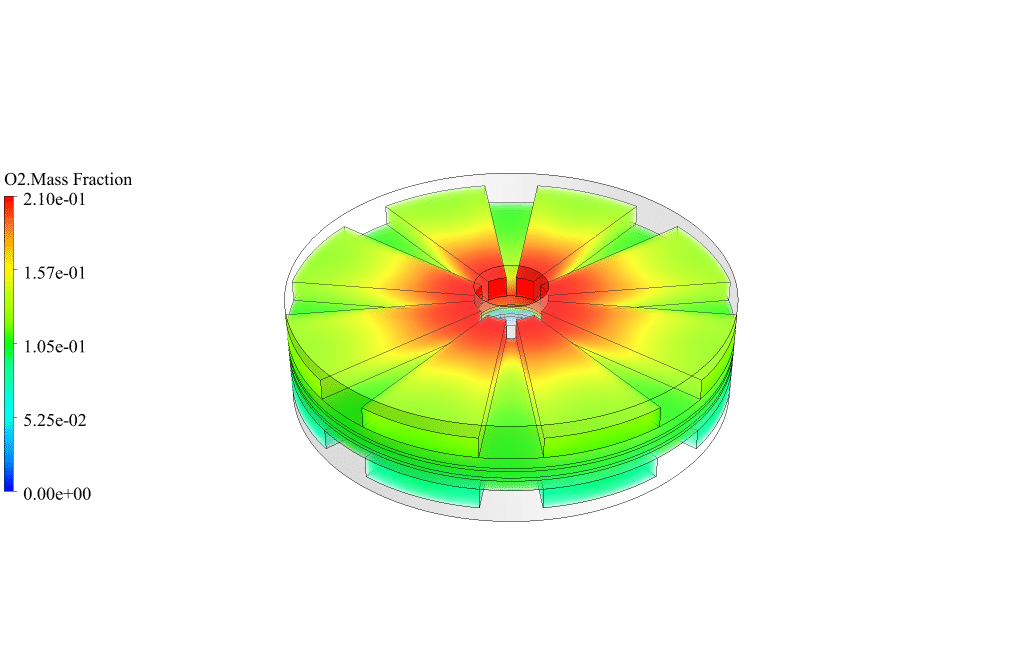

The H2, O2, and H2O mass fraction contours show that hydrogen enters from the anode side, oxygen enters from the cathode side, and water is produced in the cathode section. This behavior is exactly according to the functional mechanism of the PEMFC fuel cell system.

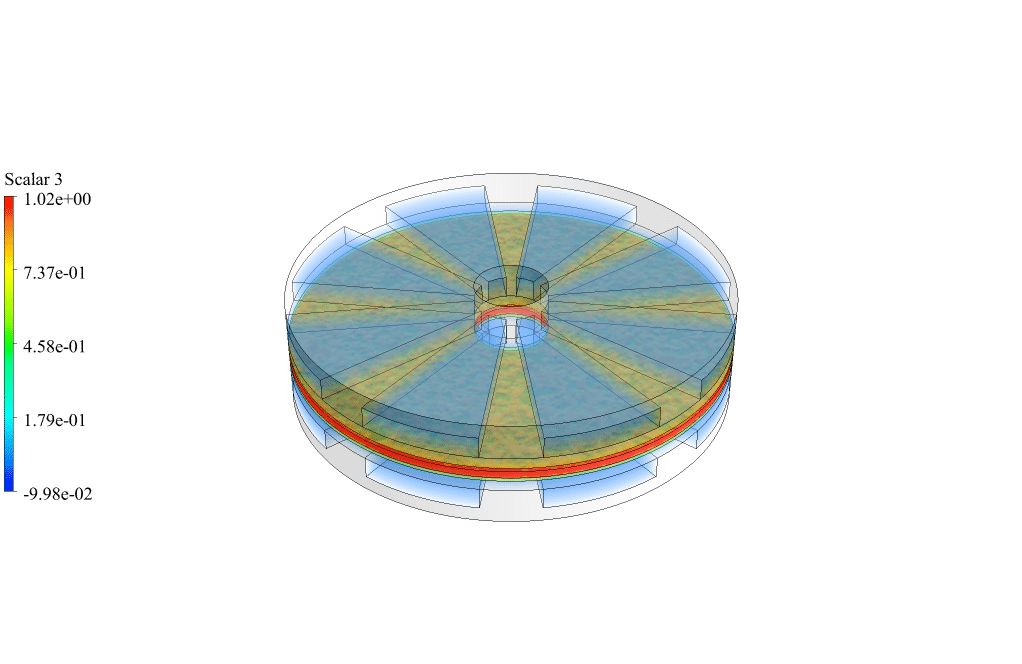

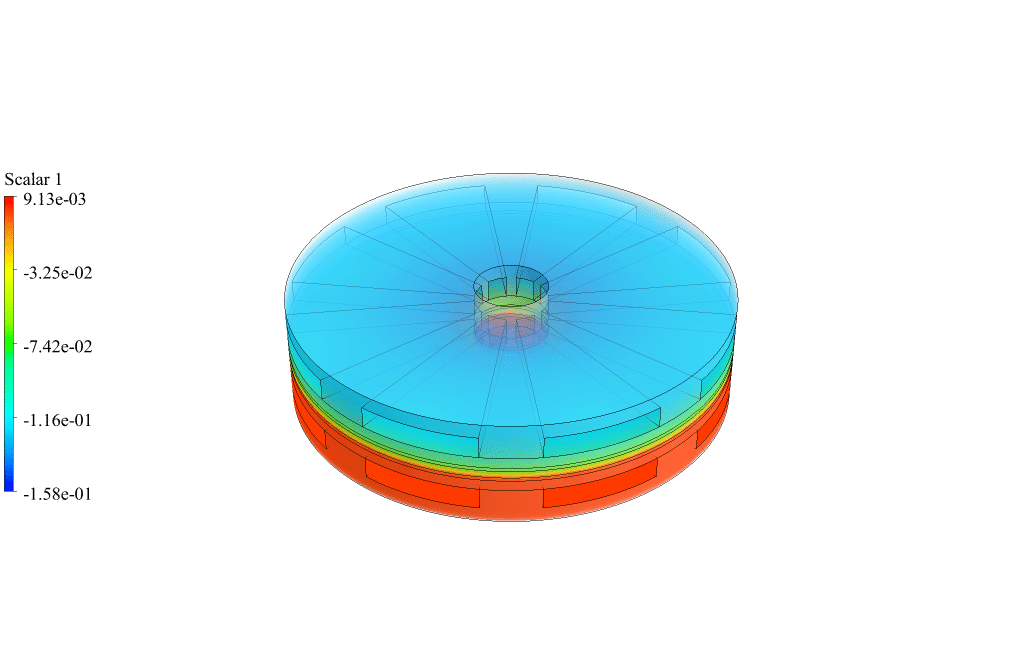

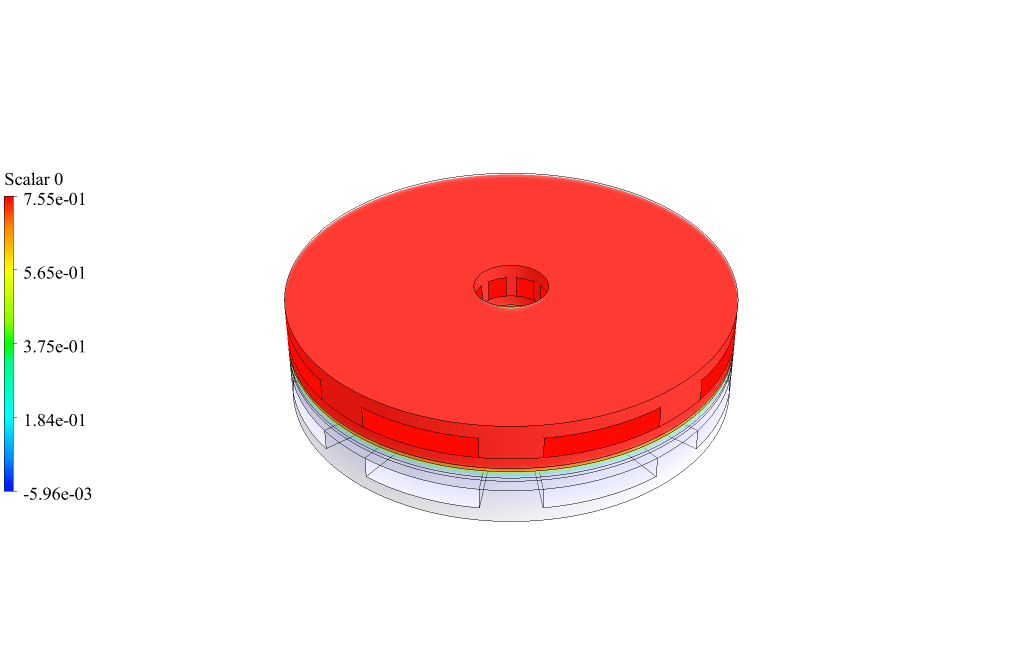

When we use the fuel cell model, some user-defined scalars (UDS) are enabled. Here, we obtained the contours of electric potential (scalar 0), protonic potential (scalar 1), and water content (scalar 3). These contours show that the potential equations of the fuel cell model are solved correctly. Hence, the effect of electrons and protons in fuel cell layers is understandable. In addition, the production of water in the fuel cell is also significant.

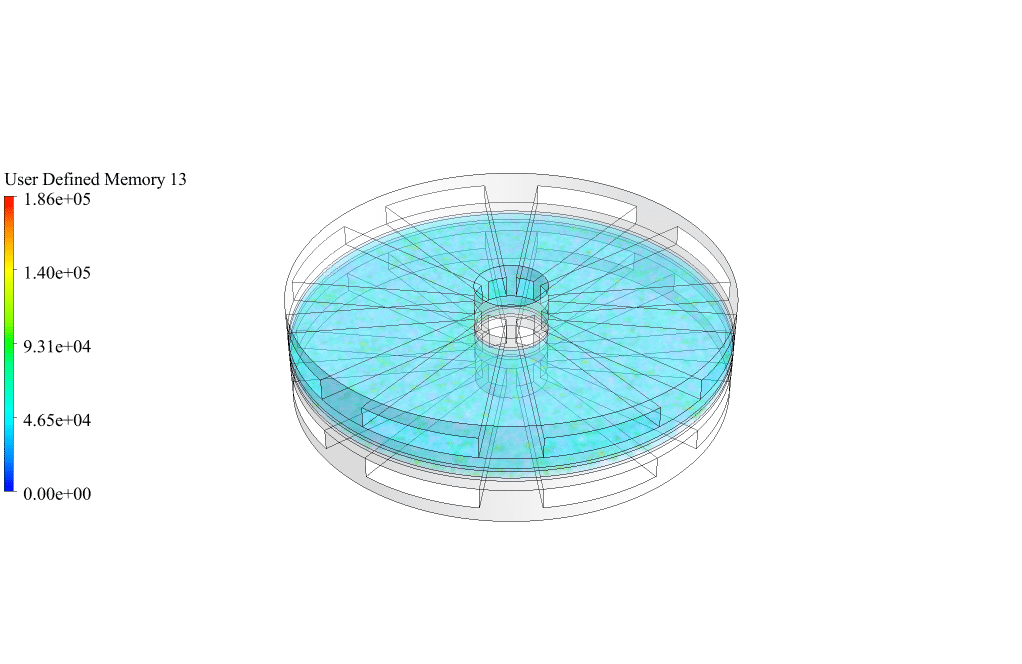

Also, when we use the fuel cell model, several user-defined memories (UDM) are enabled. Here, we obtained contours of current flux density magnitude (user-defined memory 3) and transfer current (user-defined memory 13). These contours show that the current is generated based on the voltage we defined for the fuel cell.
