T-junction, Thermal FSI, ANSYS Fluent CFD Simulation

Description

In this project, we present the CFD simulation of a T-junction Pipe under Thermal FSI in ANSYS Fluent software.

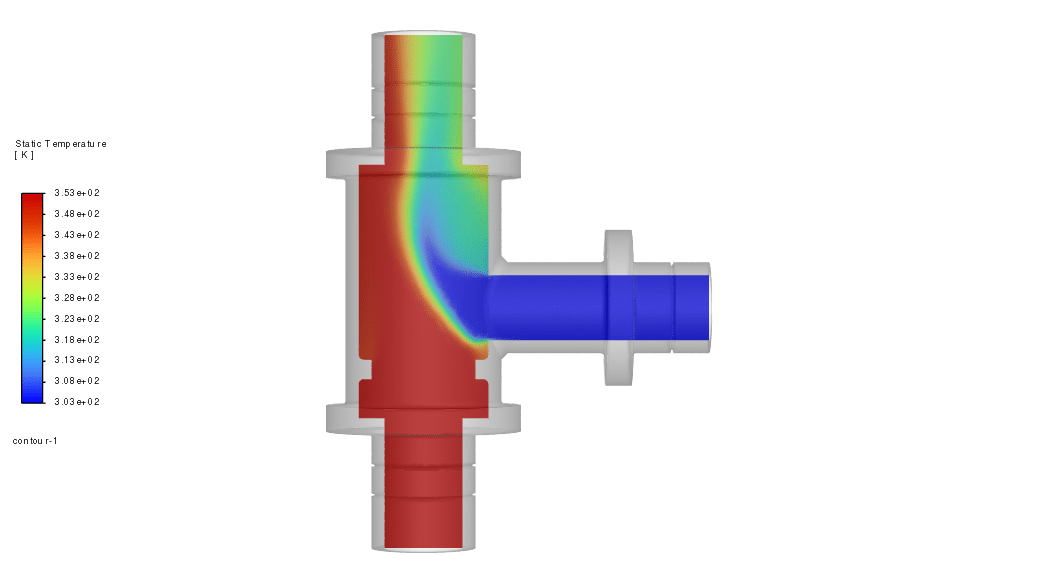

We studied a pipe containing a T-junction, from each branch of which a fluid of different temperature flows.

On the one hand, hydraulic fluid flow can generate a pressure load on the inner wall of the pipe, and on the other hand, two fluid flows with different temperatures may produce a thermal load on the pipe wall.

Therefore, we intend to analyze the fluid-structure interaction, which is known as FSI. As we also aim to take into account the thermal effect, it is called the thermal FSI.

Note that since we want to first analyze the effect of the fluid’s motion and thermal loads on the pipe wall and, consequently, the effect of pipe deformation on the neighboring fluid flowing, we use a two-way FSI approach.

Methodology

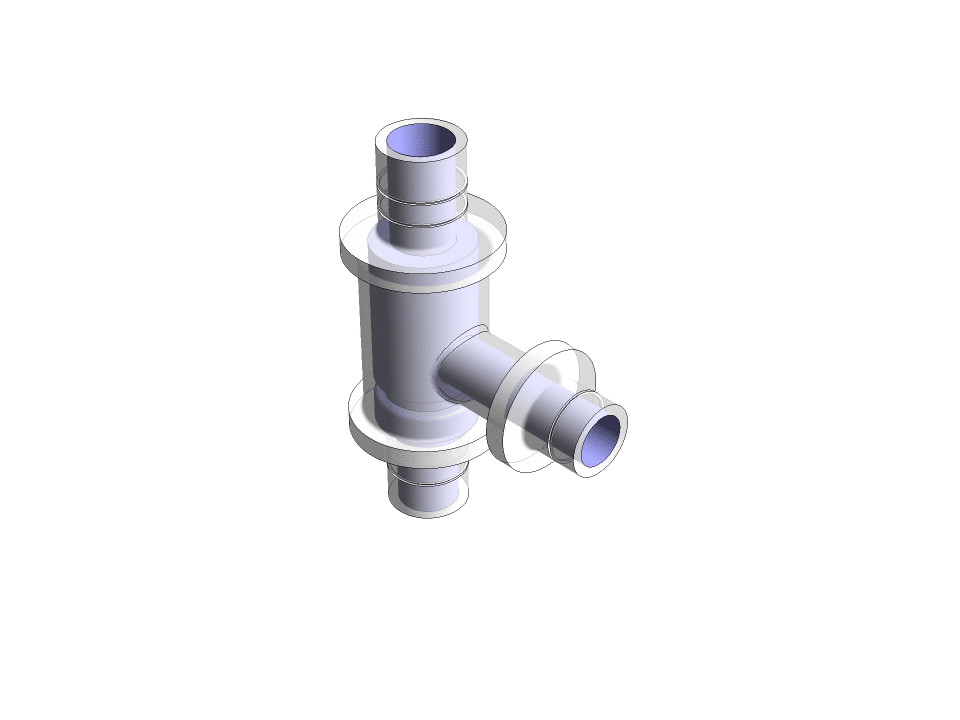

First, we modeled the computational domain in Design Modeler software. We designed a pipe with a T-joint that consists of a main pipeline and a branch. It consists of two regions: the inner fluid zone corresponds to the fluid flow, and the outer solid zone is dedicated to the pipe body.

Next, we meshed all domains in ANSYS Meshing software, so that about 1,451,000 elements were generated.

Finally, we performed the numerical simulation of the flow pipe in ANSYS Fluent.

Typically, an external solver is used as a system coupling to define data transfer between the fluid and structural solvers. However, in this project, we utilized the Fluent solver to model the fluid and solid interaction (without the need for an extrinsic solver).

This approach is known as intrinsic FSI. For this purpose, we used the Structure model to analyze FSI. Then, we used the linear elasticity method for structural analysis, meaning that the structure’s deformation is proportional to the amount of force exerted by the fluid.

Since solid body deformation affects fluid flow, we used the Dynamic Mesh model. This causes the mesh to deform over time in the fluid domain.

Conclusion

After the calculation process, we represent the analysis from the perspective of the interaction between fluids and solids.

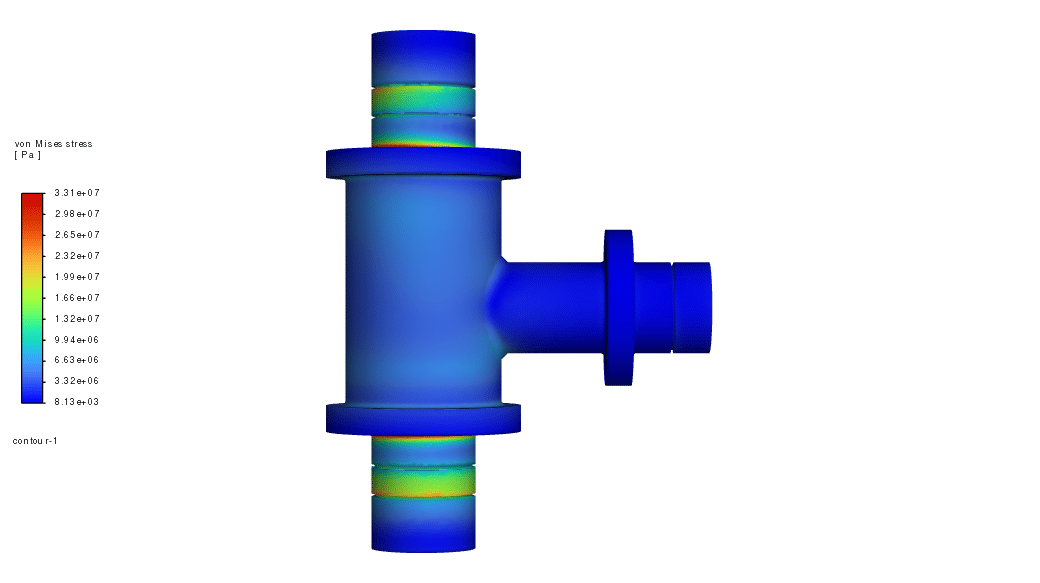

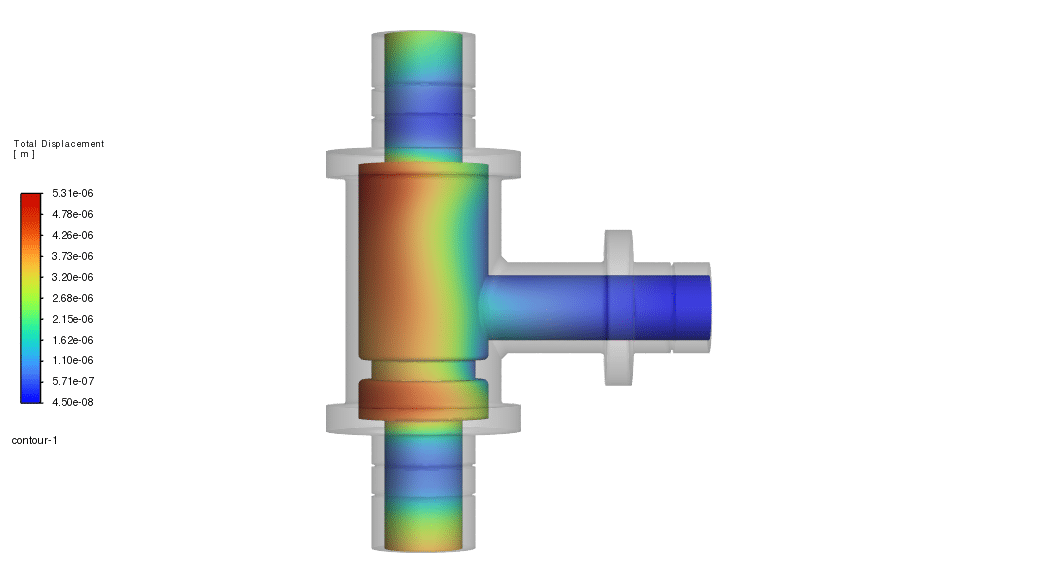

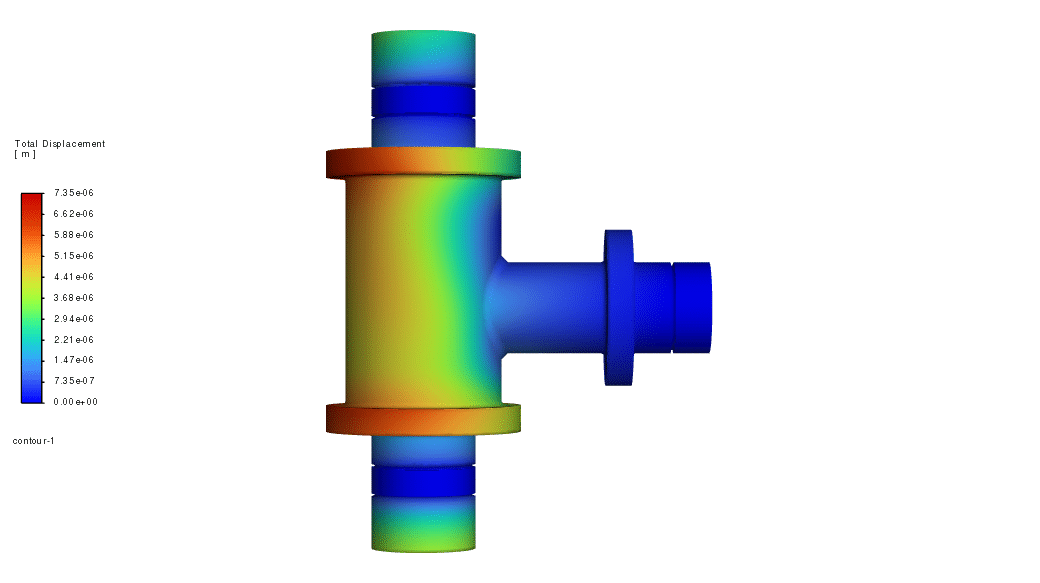

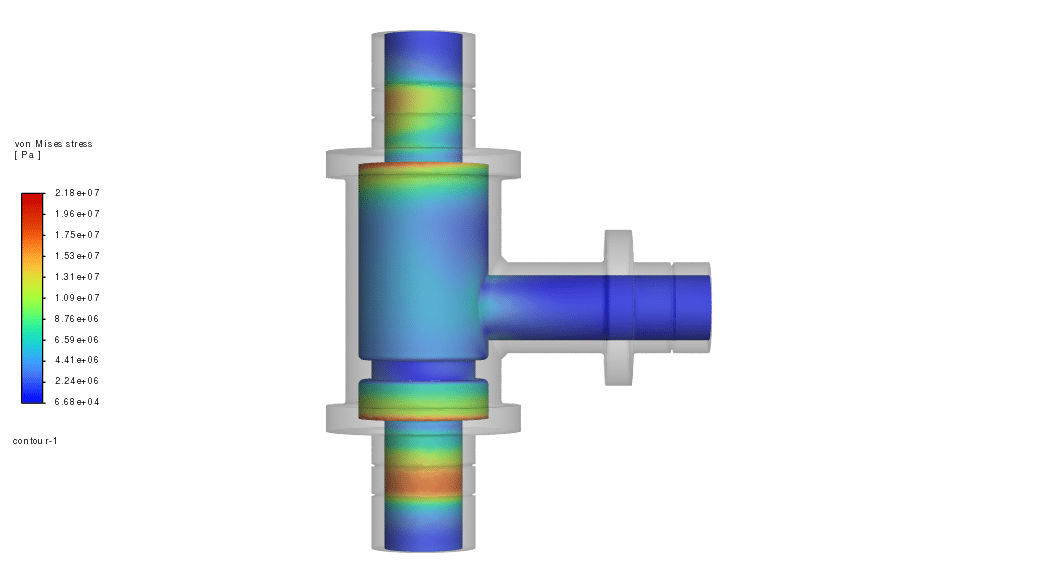

Therefore, we obtained the contour of distribution of the total displacement and von Mises stress, both for the inner wall of the pipe, which is exposed to the fluid flow, and for the outer wall of the pipe, which is freely movable.

The results showed that the maximum displacement occurs in the T-junction zones, between the supports applied to the end of each branch. This indicates that these regions undergo the highest deformation due to the fluid flowing.

Also, the highest stress is observed in the vicinity of each support. On the other hand, the branch containing the hotter fluid shows a higher stress, which could be due to thermal stress.
