Engine Room Ventilation System of Ship CFD Simulation

$100.00 Student Discount

  • The problem numerically simulates the engine room ventilation system of a ship using ANSYS Fluent software.
  • We design the 3-D model by the Design Modeler software.
  • We Mesh the model by ANSYS Meshing software, and the element number equals 706053.
  • Some energy sources are defined to determine the heat generation in diesel engines and motors.


Click on Add To Cart and obtain the Geometry file, Mesh file, and a Comprehensive ANSYS Fluent Training Video.

To Order Your Project or benefit from a CFD consultation, contact our experts via email ([email protected]), online support tab, or WhatsApp at +44 7443 197273.

There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via [email protected] after you buy the product.

Special Offers For Single Product

If you need the Geometry designing and Mesh generation training video for one product, you can choose this option.
If you need expert consultation through the training video, this option gives you 1-hour technical support.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.
editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
The MR CFD certification can be a valuable addition to a student resume, and passing the interactive test can demonstrate a strong understanding of CFD simulation principles and techniques related to this product.
Enhancing Your Project: Comprehensive Consultation and Optimization Services
Collaborative Development of a Conference Paper on Cutting-Edge Topics with MR CFD
Collaborative Publication Opportunity: Contribute to an ISI Article and Get Featured in Scopus and JCR-Indexed Journals
If you want training in any language other than English, we can provide you with a subtitled video in your language.


Engine Room Ventilation System of Ship, ANSYS Fluent CFD Simulation Training

This simulation is about a ship’s engine room ventilation system via ANSYS Fluent software.

On ships, the power needed to start compressors, pumps, fans, etc., is all supplied by electric motors. The engine room occupies the most significant space allocated to the various parts inside the ship.

Due to the accumulation of all these machines in this space, studying how heat is transferred is necessary.

The Optimal design of the air conditioning system to supply combustion air inside the equipment and regulate temperature and humidity inside this space is one of the most important points in the design of engine rooms and shipbuilding.

Engineers and researchers have always tried to optimize the air conditioning system’s design for ships by presenting new methods. Simulation and analysis of the ventilation system related to the ship’s engine room can help better explore new and innovative methods.

This project’s room consists of an air inlet (mass-flow type, 35 Kg/s) and two pressure outlets. The diesel engines and motors generate heat (12500 and 8333.333 W/m3, respectively) while working.

The injected air (300 K) is responsible for cooling the engine room and lowering the temperature of engines and motors.

The geometry of the present model is drawn by Design Modeler software. The model is then meshed by ANSYS Meshing software. The model mesh is unstructured, and 706053 cells have been created.

Engine Room Methodology

In this simulation, the energy model is activated because the primary goal of this project is heat transfer. A distinct volume is considered in the modeling to define the heat generated by motors and diesel engines. It is assumed that each volume produces a specific amount of heat.

A heat source must be defined in cell zone conditions to determine the amount of heat; That is, a certain amount of energy is produced per unit volume.

Engine Room Conclusion

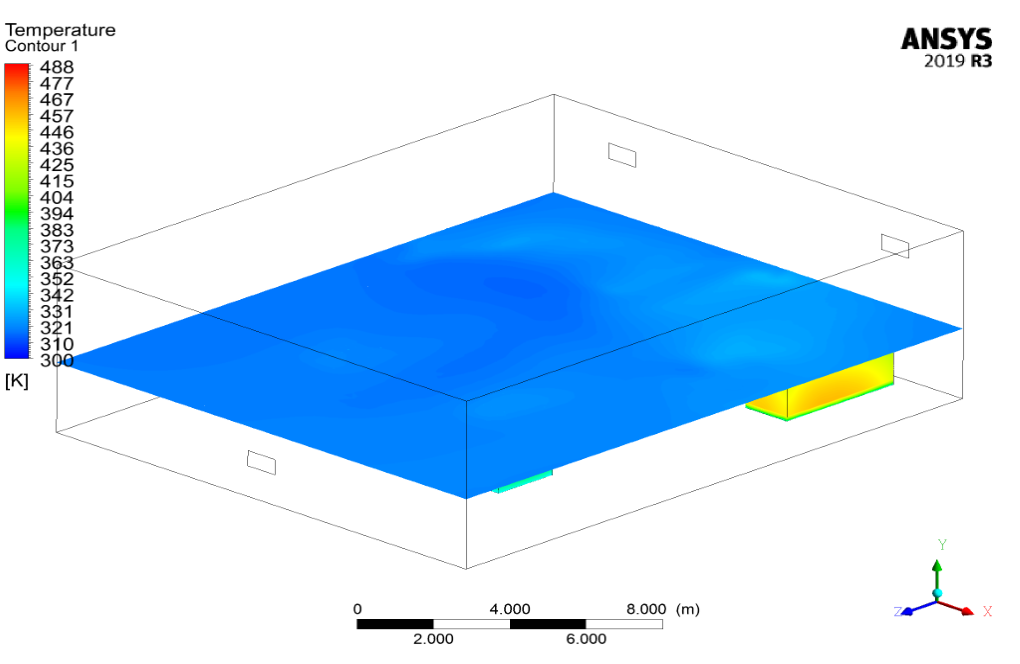

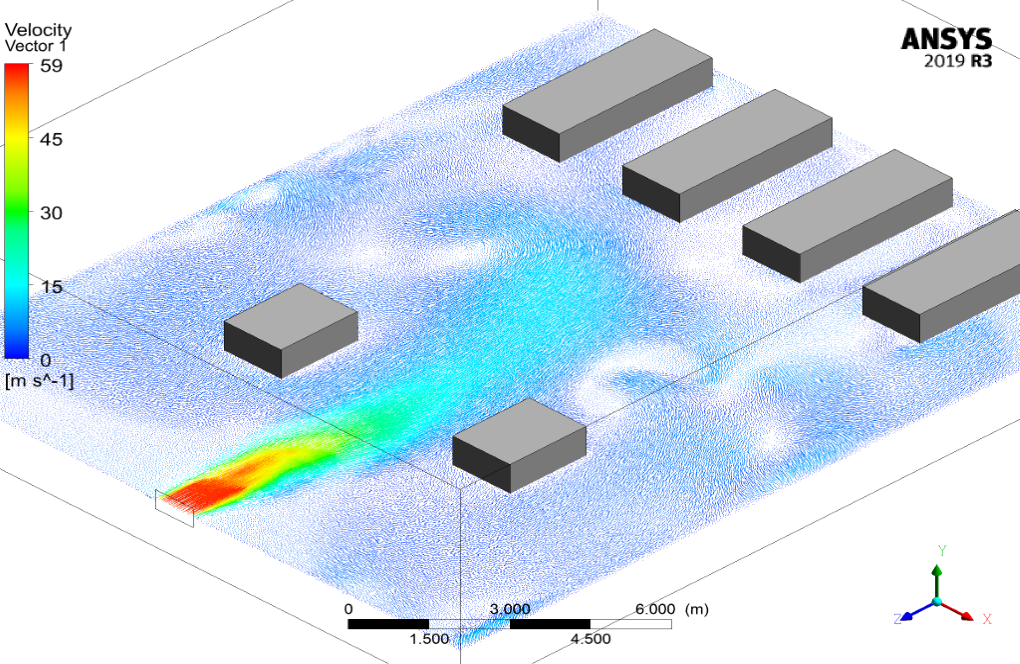

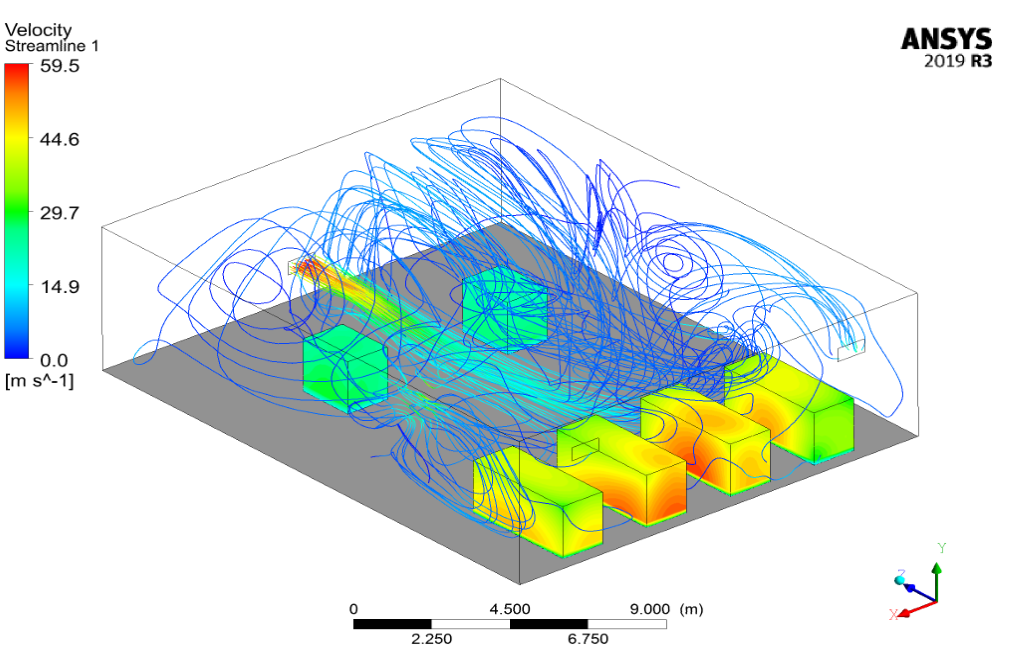

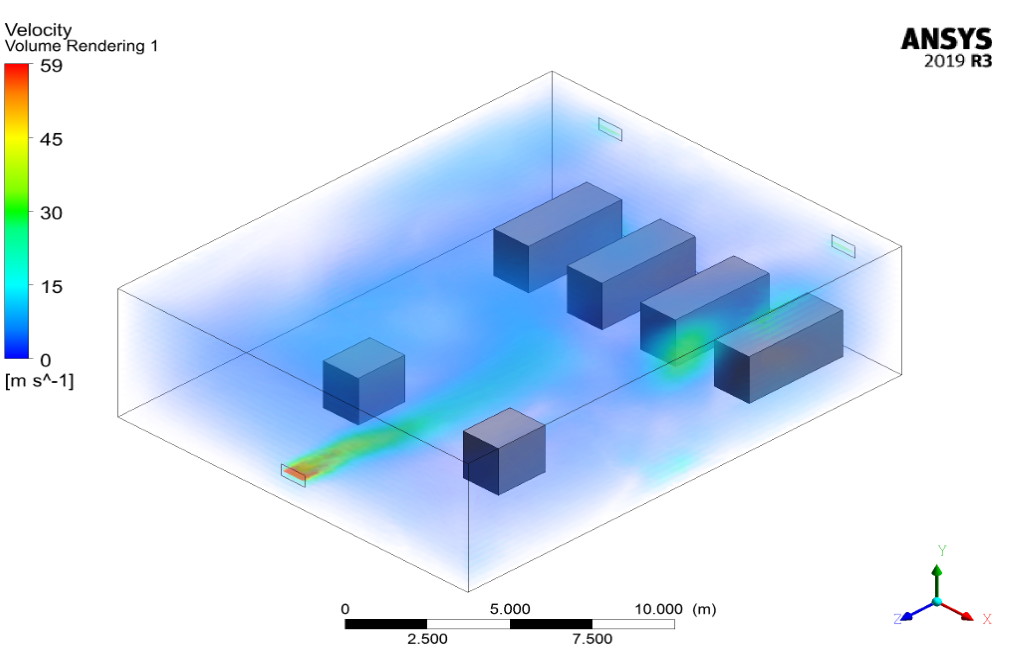

After simulation, the contours of temperature, velocity, and pressure are obtained. Also, streamline and velocity vectors are obtained. Streamlines indicate that the cooling air of the ventilation system enters the room and is well distributed in the space.

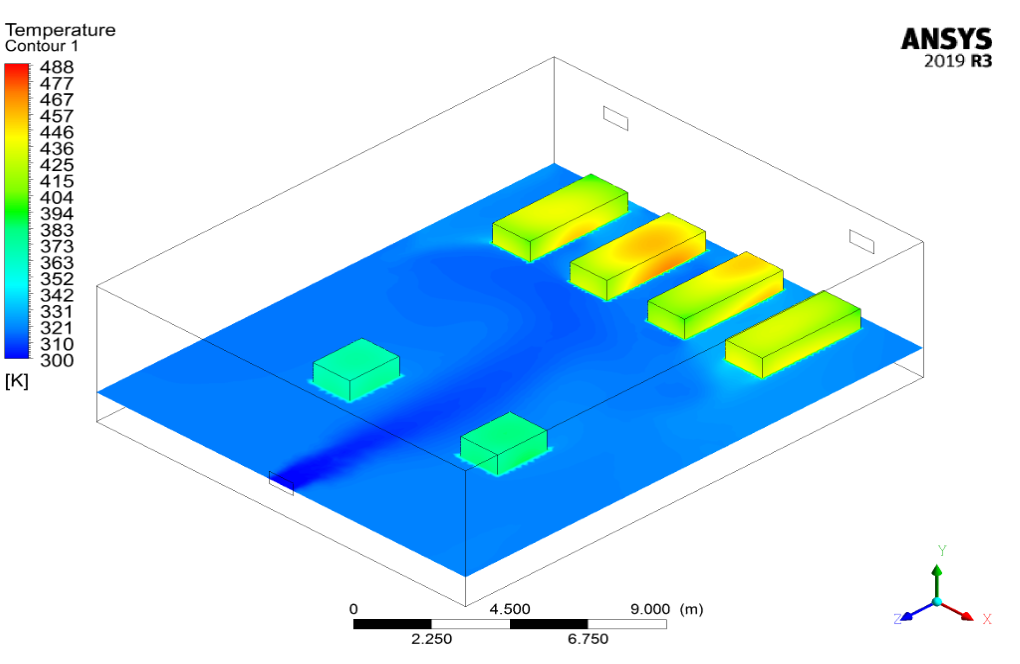

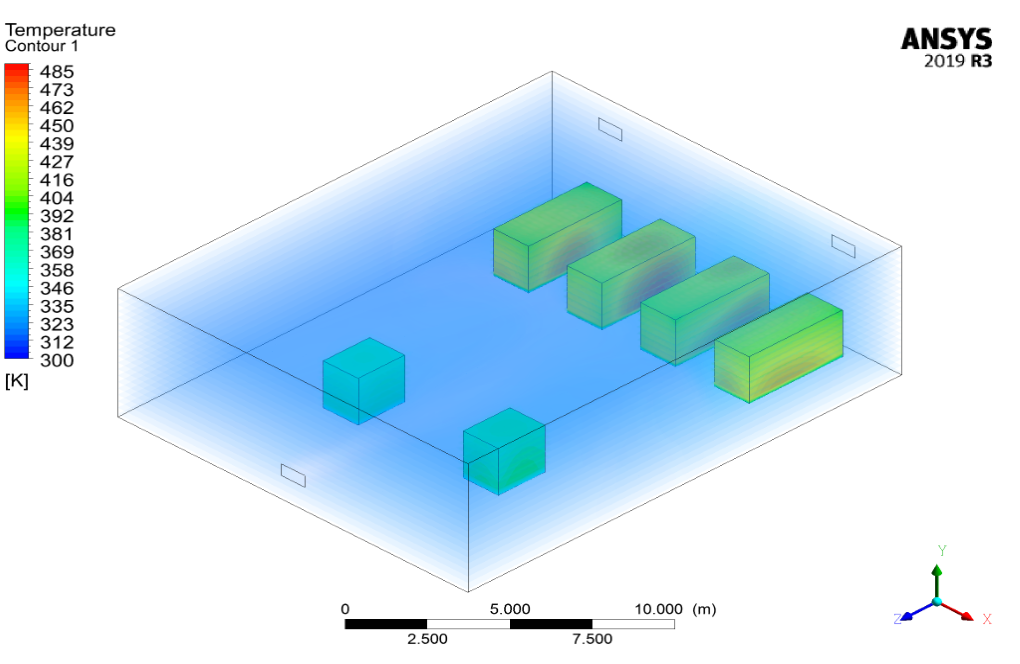

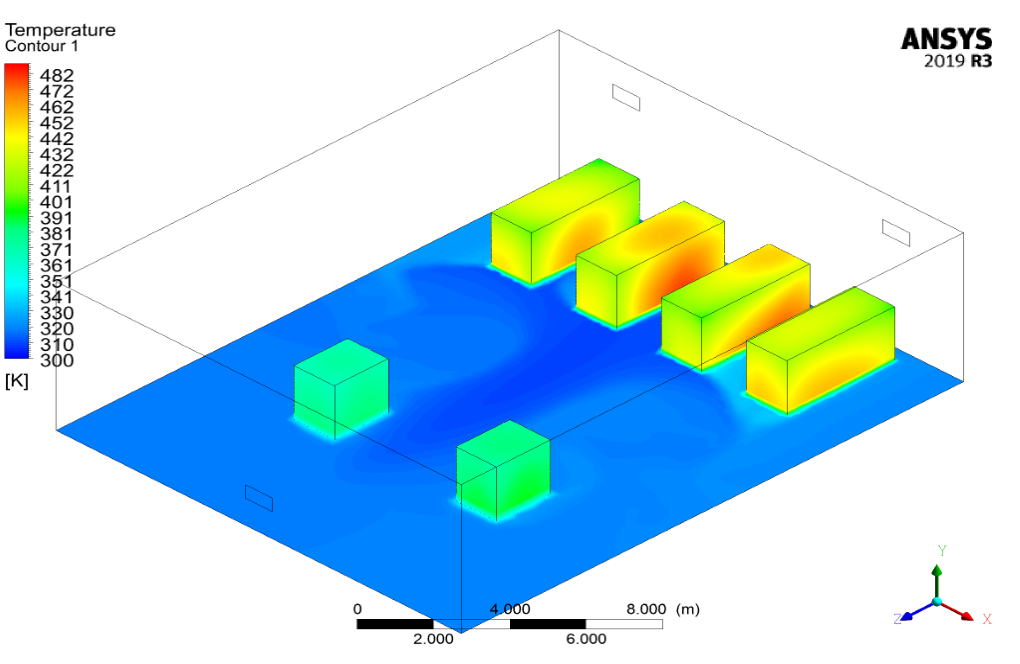

The temperature contour also shows that the motors and diesel engines have a high temperature, and cold air goes to the surface of the motors and engines to cool them.
