Finding Pressure Center of a Projectile CFD Simulation, ANSYS Fluent

$60.00 Student Discount

  • In this project, the flow around a projectile is modeled using ANSYS Fluent.
  • The geometry was created in SpaceClaim, and a mesh consisting of 2,871,393 elements was generated using ANSYS Meshing.
  • In this project we are going to find the center of pressure and calculate the lift force on the projectile .
Click on Add To Cart and obtain the Geometry file, Mesh file, and a Comprehensive ANSYS Fluent Training Video.

To Order Your Project or benefit from a CFD consultation, contact our experts via email ([email protected]), online support tab, or WhatsApp at +44 7443 197273.

There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via [email protected] after you buy the product.

Special Offers For Single Product

If you need the Geometry designing and Mesh generation training video for one product, you can choose this option.
If you need expert consultation through the training video, this option gives you 1-hour technical support.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.
editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
The MR CFD certification can be a valuable addition to a student resume, and passing the interactive test can demonstrate a strong understanding of CFD simulation principles and techniques related to this product.
Enhancing Your Project: Comprehensive Consultation and Optimization Services
Collaborative Development of a Conference Paper on Cutting-Edge Topics with MR CFD
Collaborative Publication Opportunity: Contribute to an ISI Article and Get Featured in Scopus and JCR-Indexed Journals
If you want training in any language other than English, we can provide you with a subtitled video in your language.



A projectile refers to a body that is thrown into the air and follows a path towards the target area without any propulsion. It may have lift surfaces to increase its range or to provide guidance.

The center of pressure is a point where all aerodynamic forces acting on the body can be assumed to act to this point, without creating any moment. Therefore, by determining the center of pressure and the lift force, we can simplify the trajectory analysis of a projectile to a point mass dynamics problem.

In this project, a projectile equipped with aerodynamic surfaces was simulated at a velocity of 130 m/s and an angle of attack of 5 degrees. The lift force was calculated, and the center of pressure under these conditions was found.

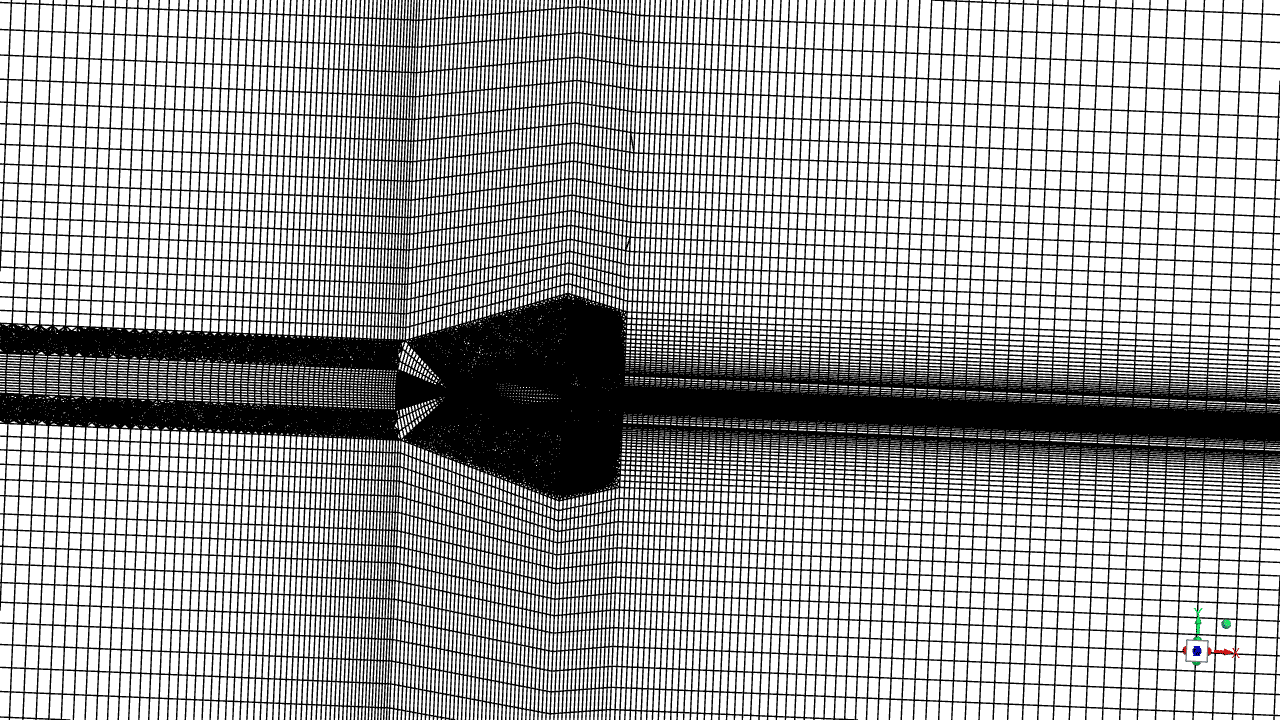

The geometry was designed in SpaceClaim® and meshed using ANSYS Meshing®. The mesh around the projectile body is unstructured, while it is structured in most of the remaining domain. The total element count is 2,871,393.


In this simulation, the turbulence effect is modeled with the k-ε standard model.

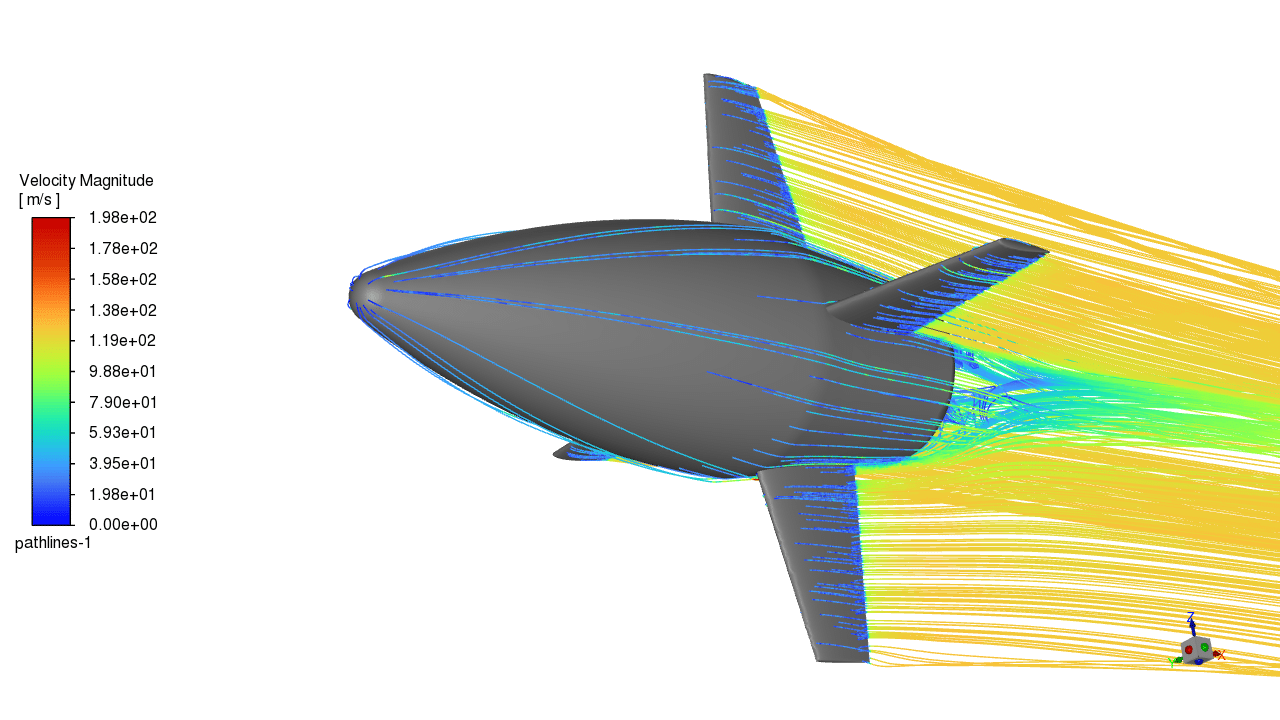

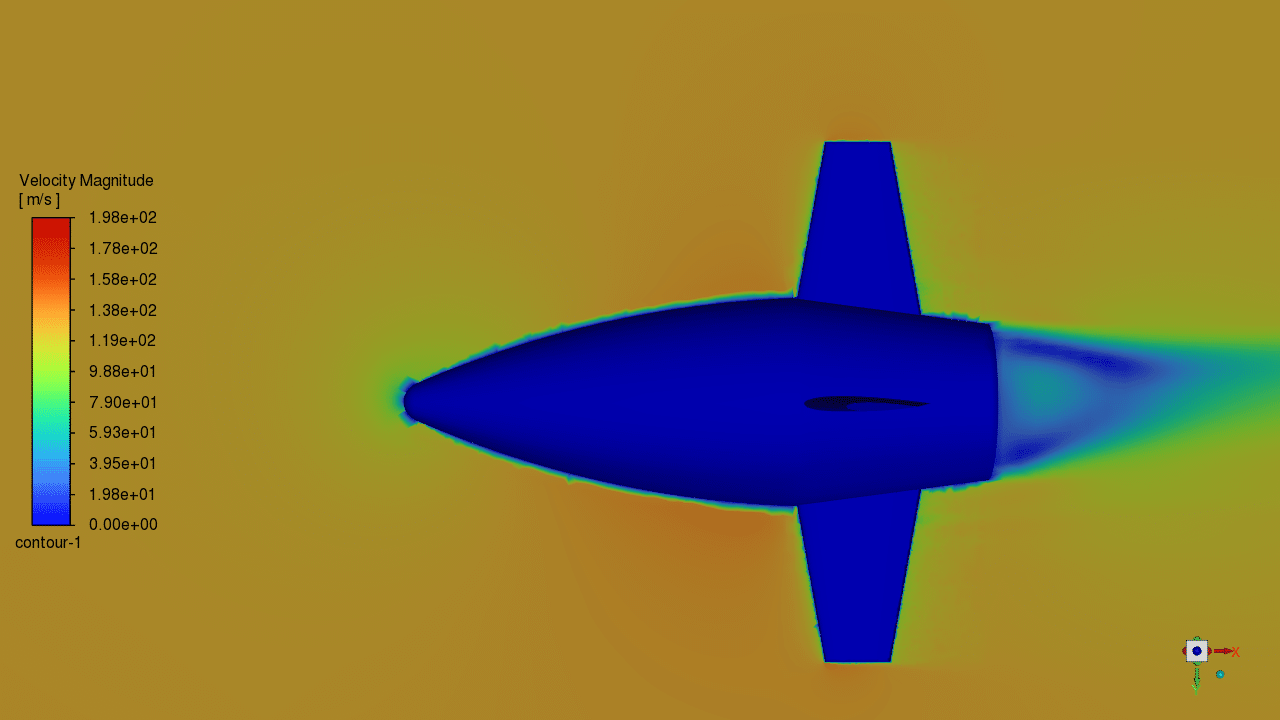

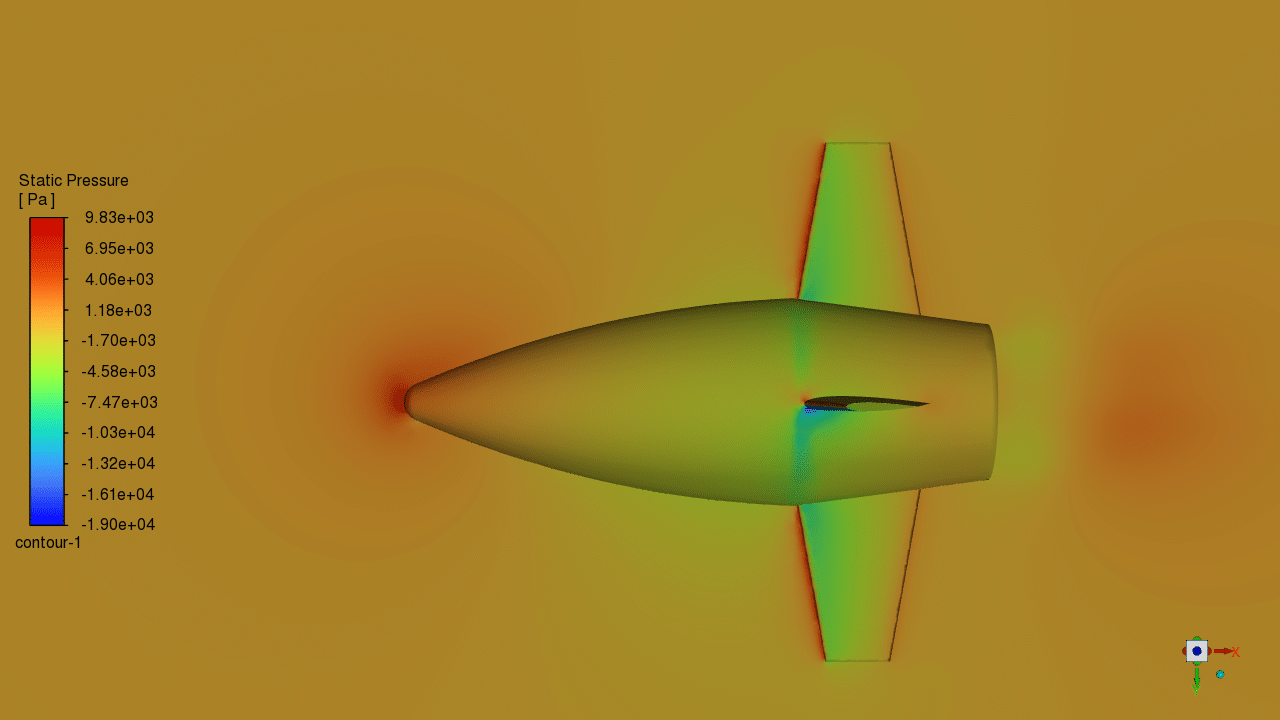

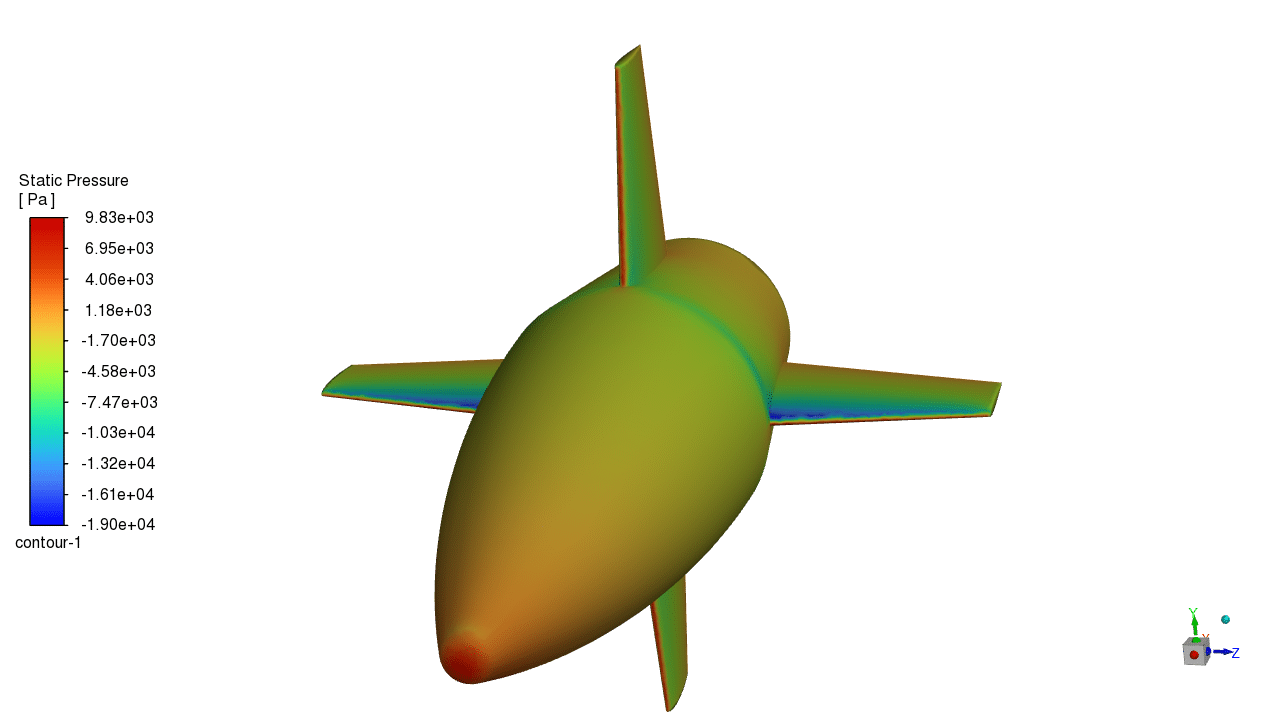

Contours of velocity and pressure around the projectile are presented; additionally, pathlines are tracked. The lift of the projectile is 109.55 N, and the location of the center of pressure is:

CP = (-0.0008655, -0.0423106, 0).
