  • The problem numerically simulates Sludge Flow Settling in a Pipe using ANSYS Fluent software.
  • We design the 3-D model by the Design Modeler software.
  • We Mesh the model by ANSYS Meshing software, and the element number equals 390742.
  • We use the Eulerian Multi-Phase model to define the sludge particles float on the water flow.
Click on Add To Cart and obtain the Geometry file, Mesh file, and a Comprehensive ANSYS Fluent Training Video.

To Order Your Project or benefit from a CFD consultation, contact our experts via email ([email protected]), online support tab, or WhatsApp at +44 7443 197273.

There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via [email protected] after you buy the product.

Special Offers For Single Product

If you need the Geometry designing and Mesh generation training video for one product, you can choose this option.
If you need expert consultation through the training video, this option gives you 1-hour technical support.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.
editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
The MR CFD certification can be a valuable addition to a student resume, and passing the interactive test can demonstrate a strong understanding of CFD simulation principles and techniques related to this product.
Enhancing Your Project: Comprehensive Consultation and Optimization Services
Collaborative Development of a Conference Paper on Cutting-Edge Topics with MR CFD
Collaborative Publication Opportunity: Contribute to an ISI Article and Get Featured in Scopus and JCR-Indexed Journals

Description

Description

This simulation is about Sludge flow Settling in a pipe via ANSYS Fluent software. We perform this CFD project and investigate it by CFD analysis.

In this project, the water enters the pipe with a velocity of 0.01 m/s with gravity considered -9.81 m/s2 on the y-axis. This water flow carries sludge particles.

The geometry of the present model is drawn by Design Modeler software. The geometry consists two-section, the lower section is resident water, and the upper section contains an outlet and inlet.

The model is then meshed by ANSYS Meshing software. The model mesh is unstructured, and 390742 cells have been created.

Sludge Flow Method

Sludge Flow is considered a multiphase flow because the sludge particles float on the water flow. So there is a need to use a Multiphase model in this simulation.

VOF, mixture and Eulerian models can be used as multiphase models. For sludge flows, the Eulerian Model is usually used. This model is known as the most complex multiphase model.

Sludge Flow Conclusion

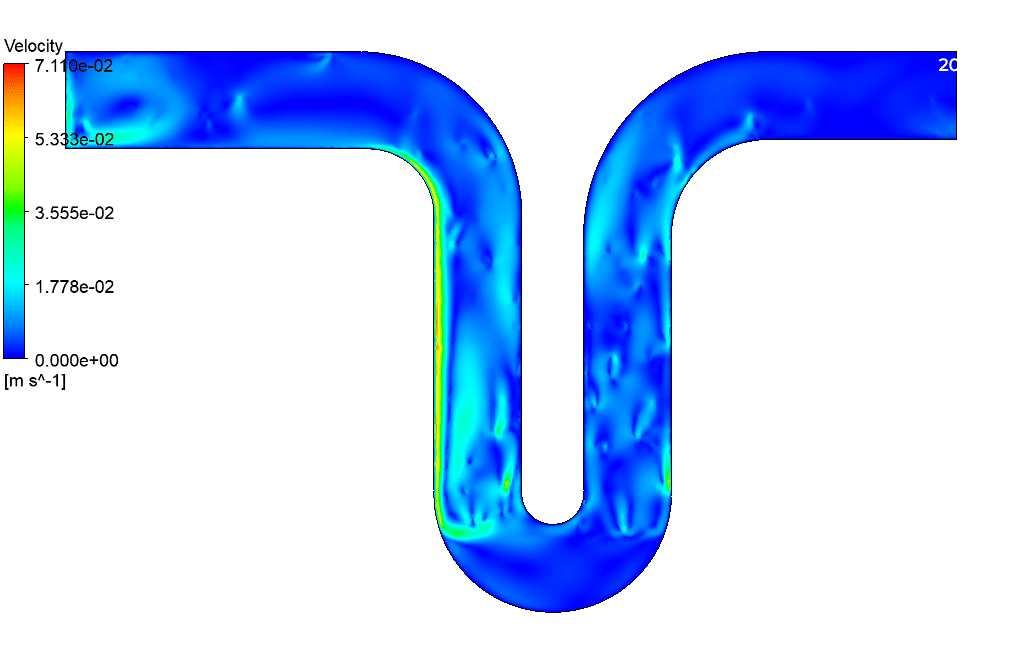

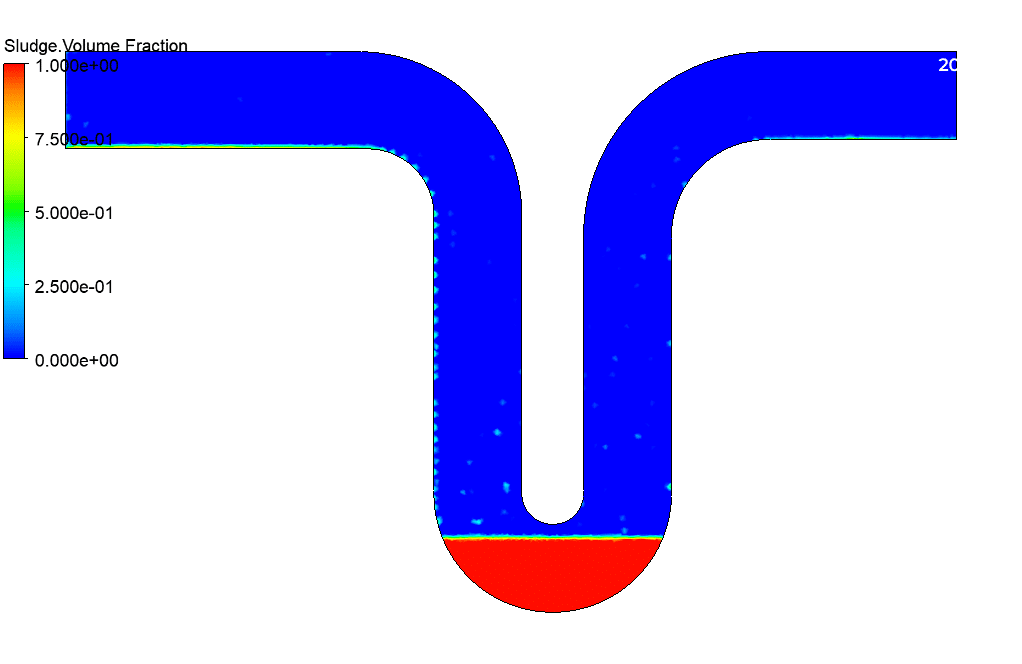

After simulation, two-dimensional contours of velocity and volume fraction of sludge and water are obtained. Also, the animation is obtained for the volume fraction of water and sludge.

The results show that the two-phase flow enters the pipe in a mixed manner. Then, over time, the sludge flow begins to settle, while water flow continues to move due to its lightness. The U-shaped structure of the tube leads to sedimentation.
