Trombe Wall CFD Simulation, Paper Numerical Validation, ANSYS Fluent

$240.00 Student Discount

  • The current CFD Analysis numerically Validates the Paper “The thermal performances of a solar wall” via ANSYS Fluent software.
  • We have designed and meshed the geometry using Design Modeler and ANSYS Meshing, producing 26,550  structured cells.
  • UDF is used for the heat source in the absorber.
Click on Add To Cart and obtain the Geometry file, Mesh file, and a Comprehensive ANSYS Fluent Training Video.

To Order Your Project or benefit from a CFD consultation, contact our experts via email ([email protected]), online support tab, or WhatsApp at +44 7443 197273.

There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via [email protected] after you buy the product.

Special Offers For Single Product

If you need the Geometry designing and Mesh generation training video for one product, you can choose this option.
If you need expert consultation through the training video, this option gives you 1-hour technical support.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.
editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
The MR CFD certification can be a valuable addition to a student resume, and passing the interactive test can demonstrate a strong understanding of CFD simulation principles and techniques related to this product.
Enhancing Your Project: Comprehensive Consultation and Optimization Services
Collaborative Development of a Conference Paper on Cutting-Edge Topics with MR CFD
Collaborative Publication Opportunity: Contribute to an ISI Article and Get Featured in Scopus and JCR-Indexed Journals
If you want training in any language other than English, we can provide you with a subtitled video in your language.



This product is validation of simulating a wall trombe based on the paper “The thermal performances of a solar wall “by ANSYS Fluent software.

A passive solar architectural element known as a trombe wall, is a thick, black-painted wall that faces south (or north, depending on the hemisphere) and is composed of a heat-absorbing material like stone or concrete. Glass or clear plastic coverings are placed a few inches apart from the wall. Solar energy is captured and stored in part by this arrangement.
The Trombe wall operates on the basic principles of solar energy heat transfer: absorption, conduction, and convection.

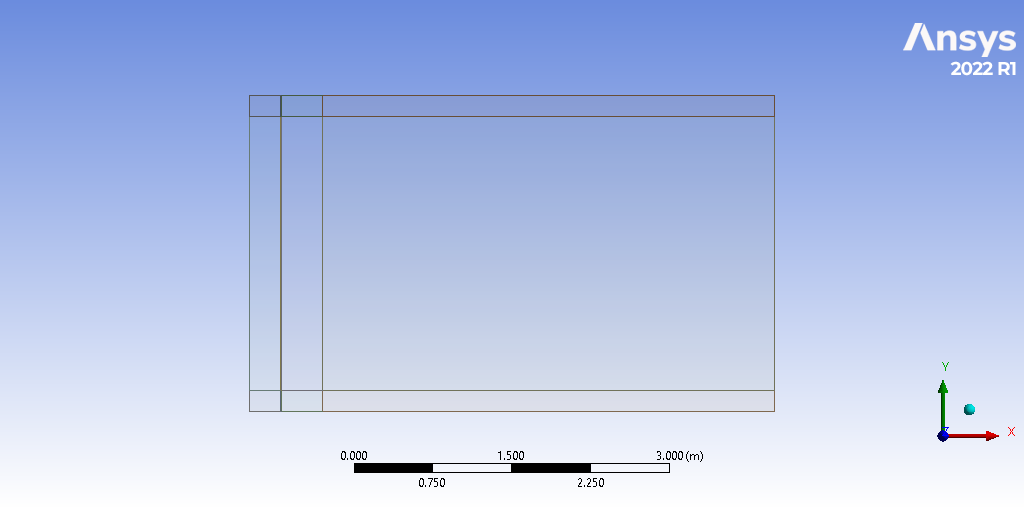

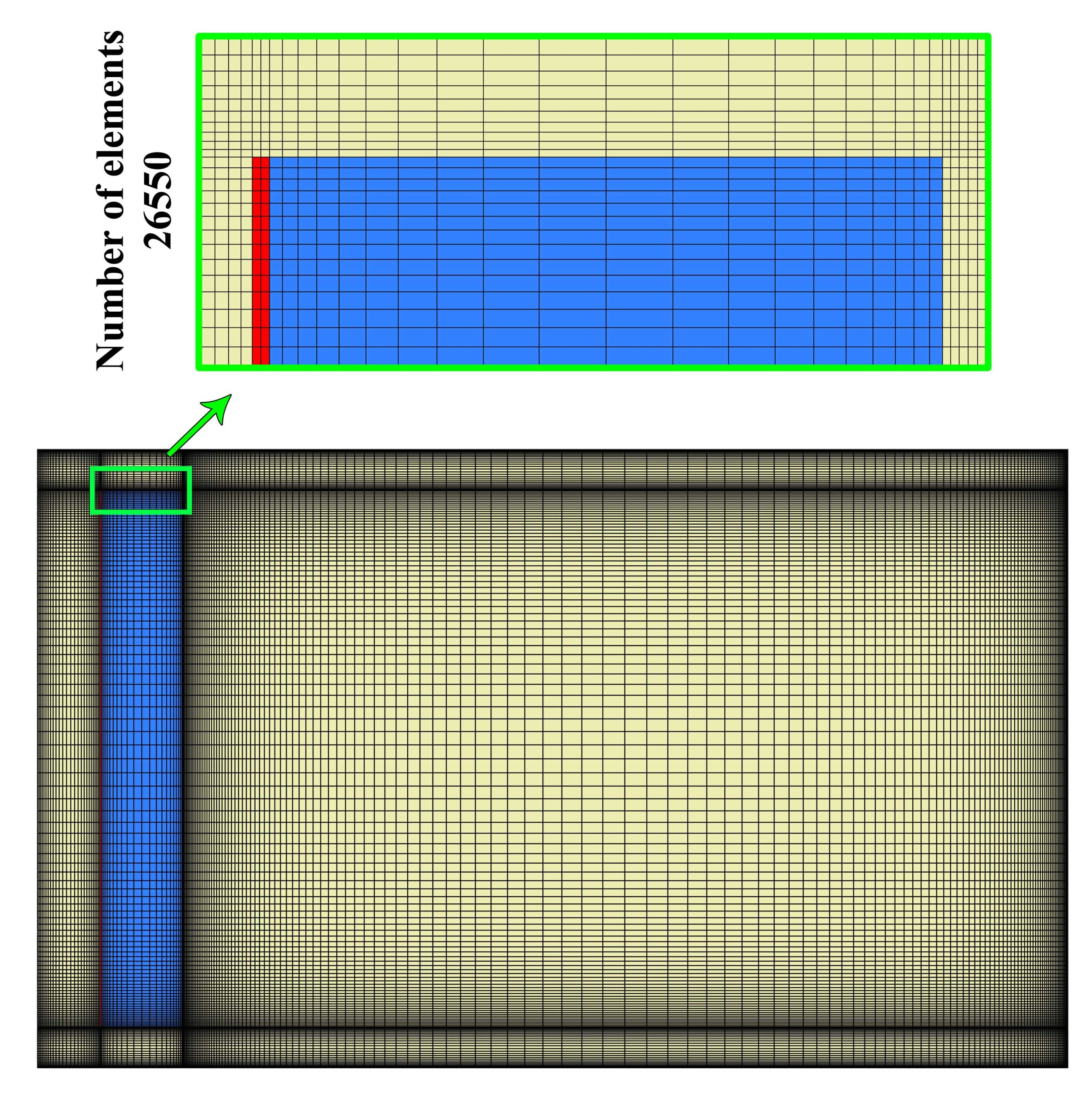

The 2-D geometry of this project is drawn in Design Modeler and meshed in ANSYS Meshing producing 26,550  structured elements.


This simulation is done transiently by considering y direction gravity. As the absorber is exposed to a volumetric heat flux, we defined a  heat source in the cell zone condition for absorber domain using UDF. The heat flux is defined in the following:

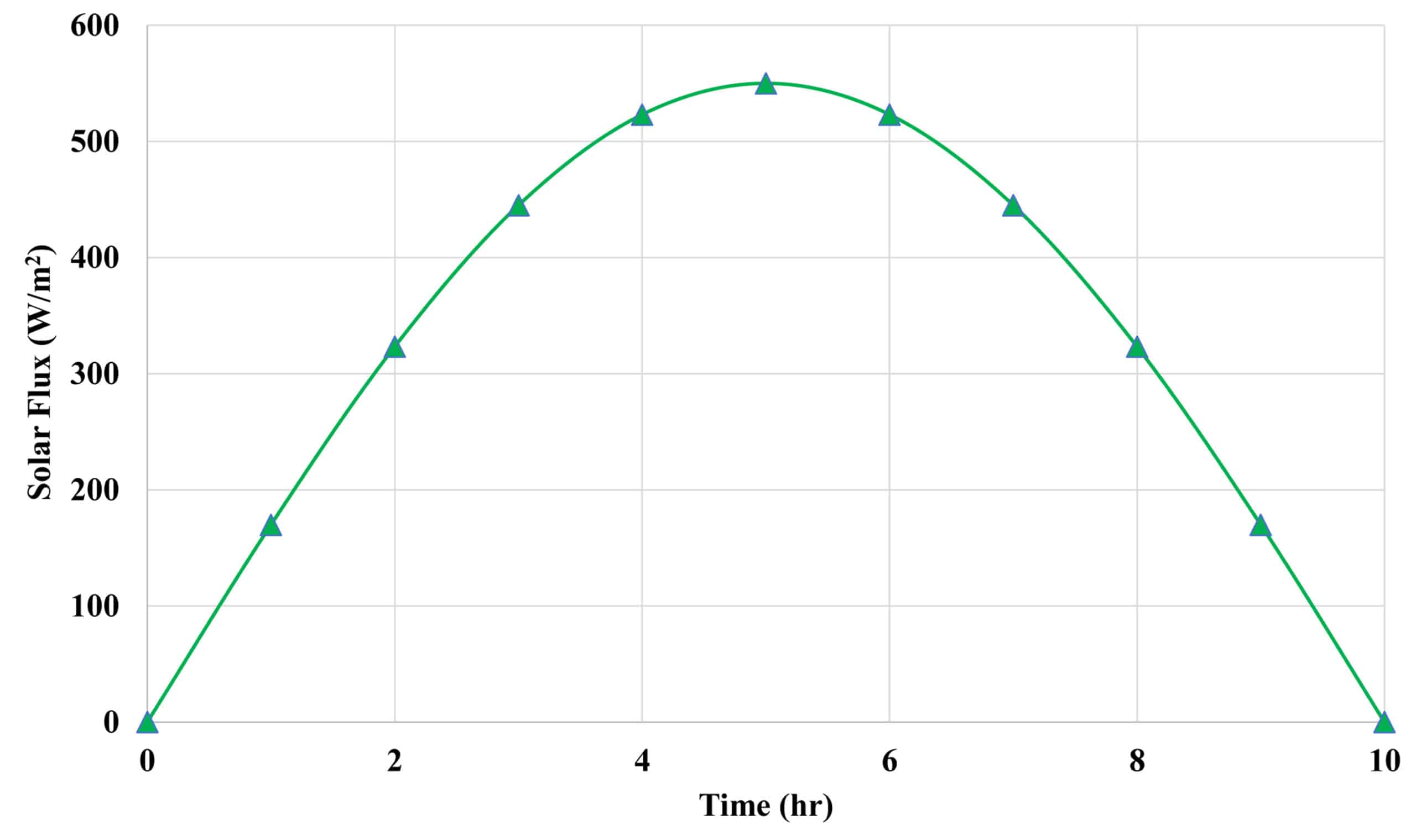

source heat flux = 55000*sin(3.14159265*time/36000)

The time step size is 1[s] and the number of time step is 86,400.

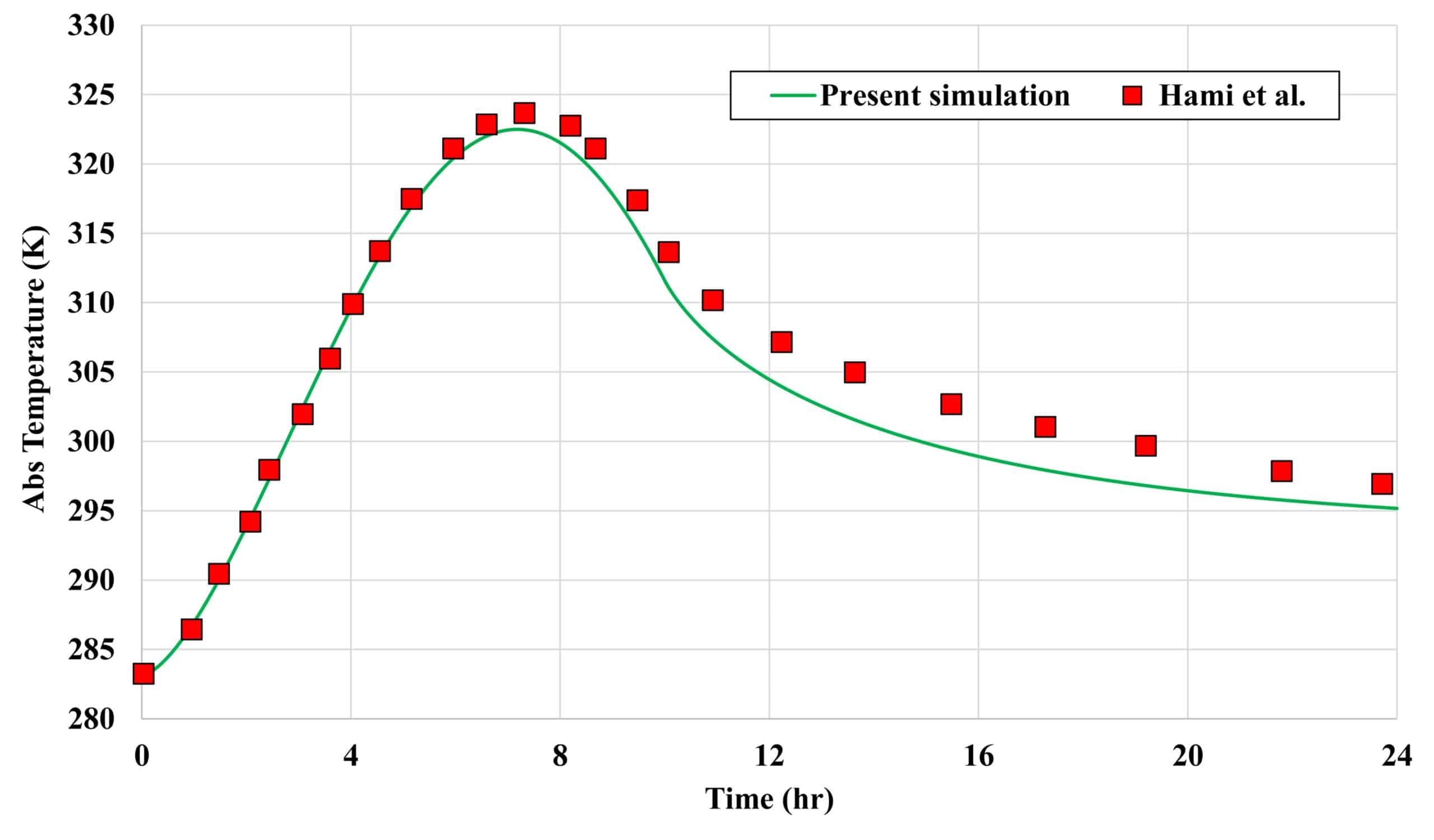

As shown in the figure below, the temperature of the absorber obtained from the simulation is compared with the numerical results of Mr. Hami et al. As can be seen in this figure, there is a good accuracy between the results, of course, in the areas before the temperature peak, the results are almost identical, and after the temperature peak, there is a slight difference between the results. The biggest difference in the temperature of the absorber after 13 hours from the start of the simulation was 1.2%, which can be said to be insignificant and acceptable.

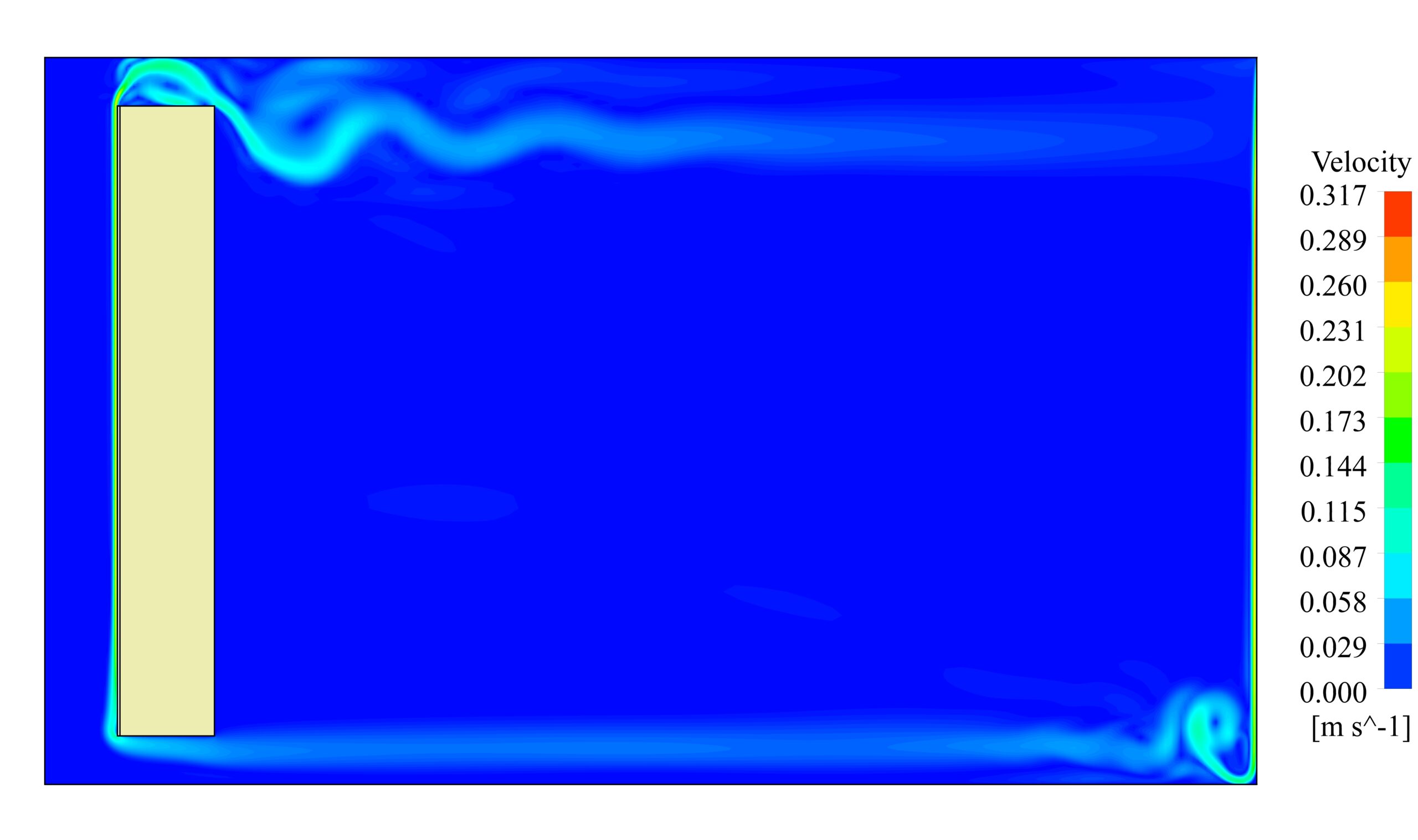

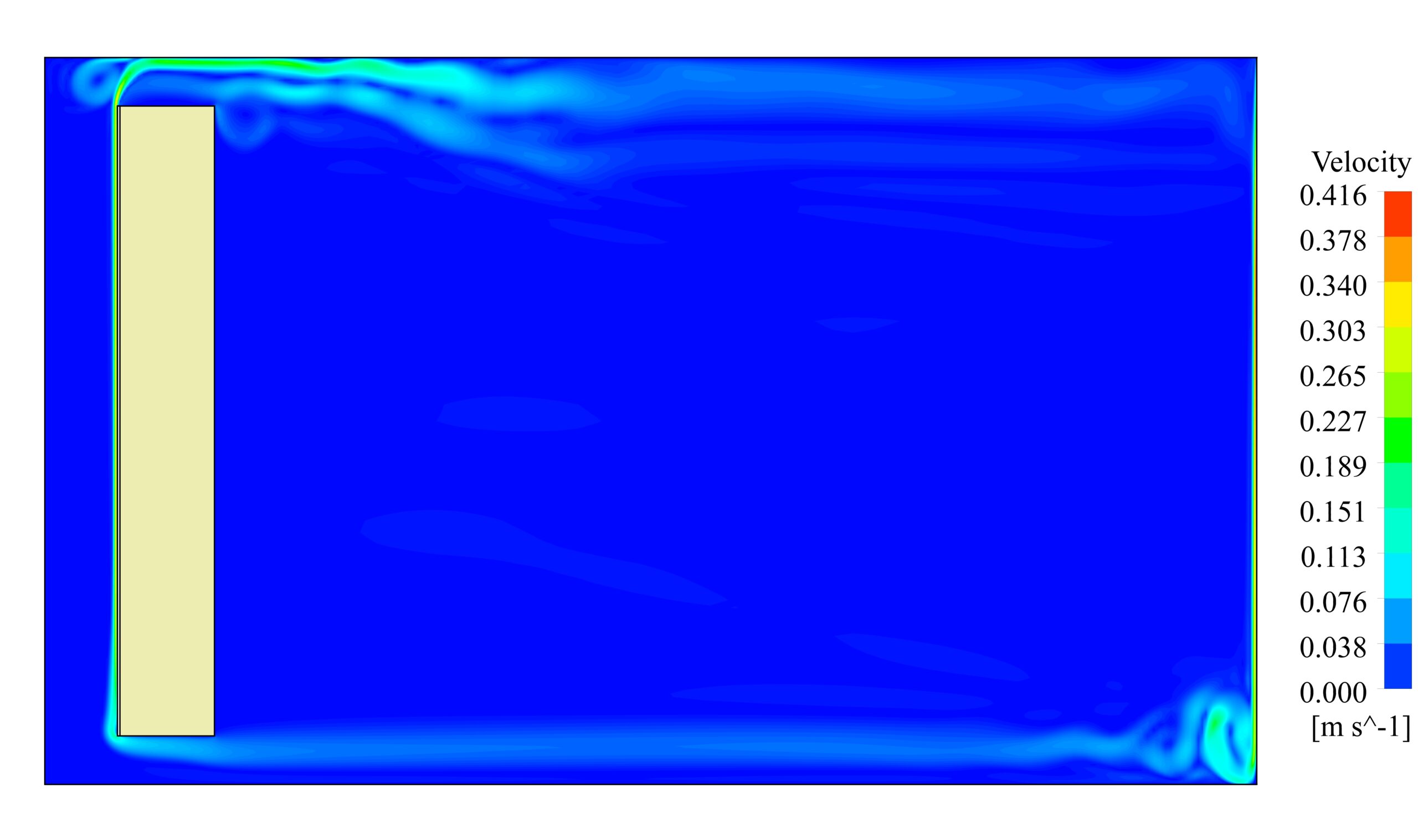

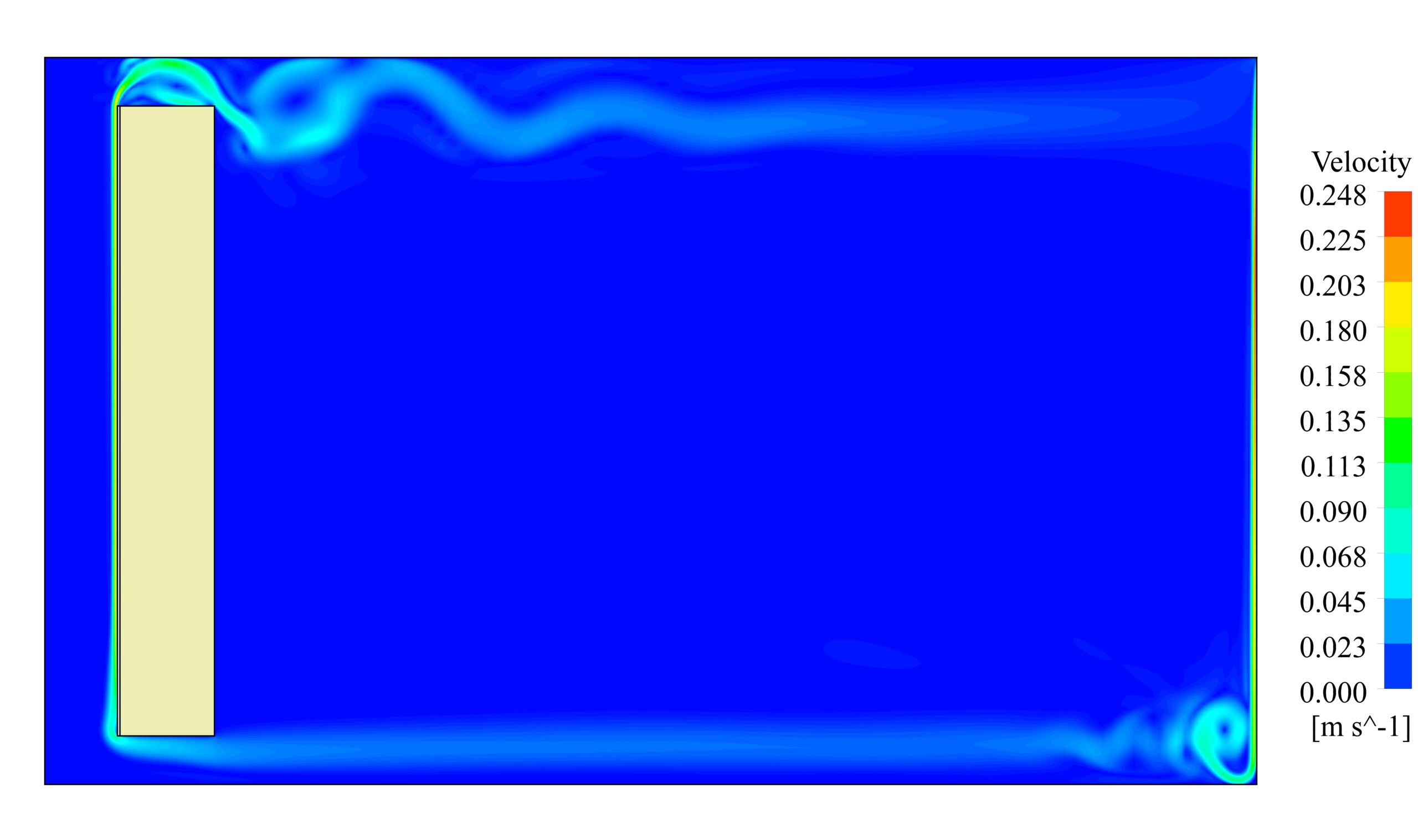

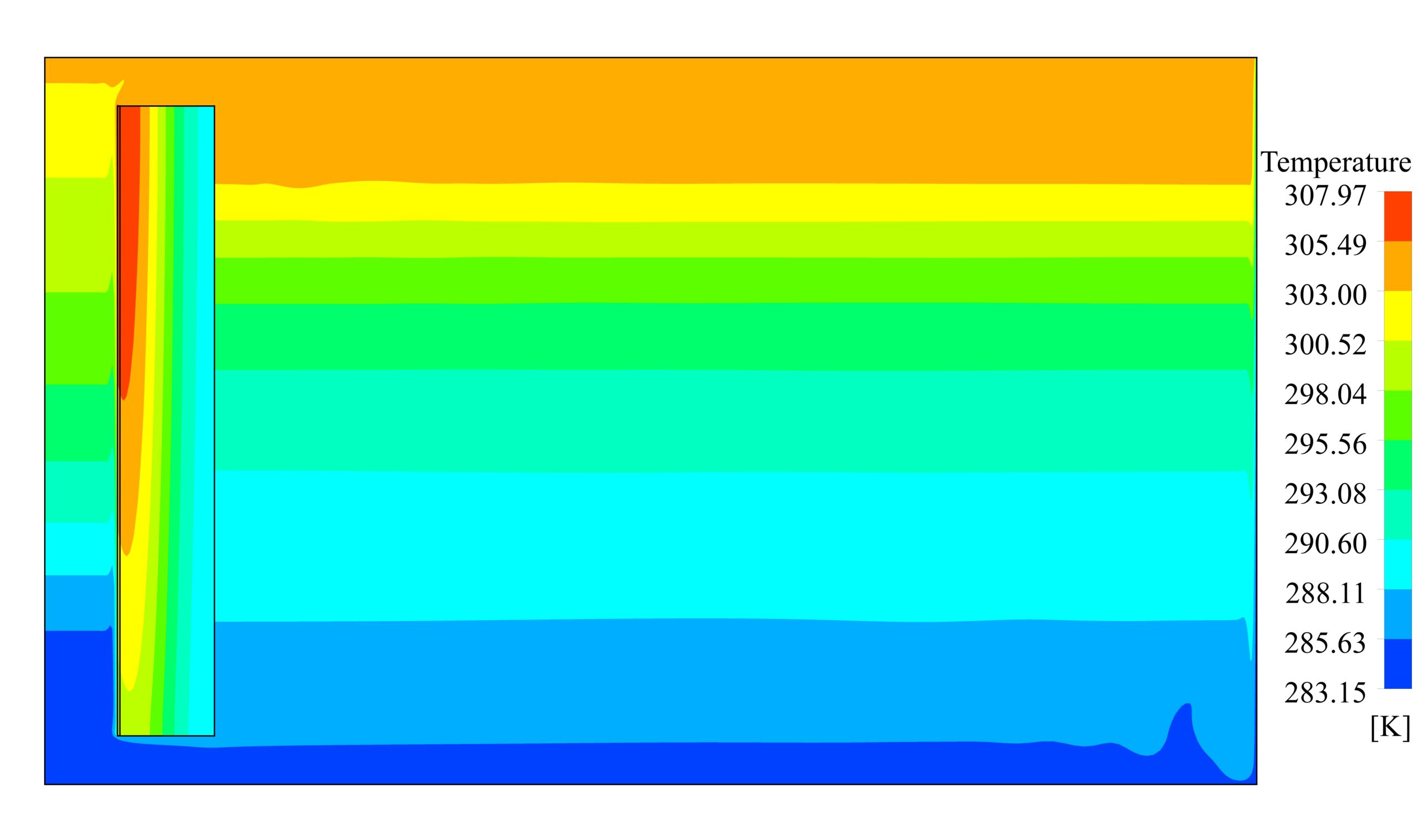

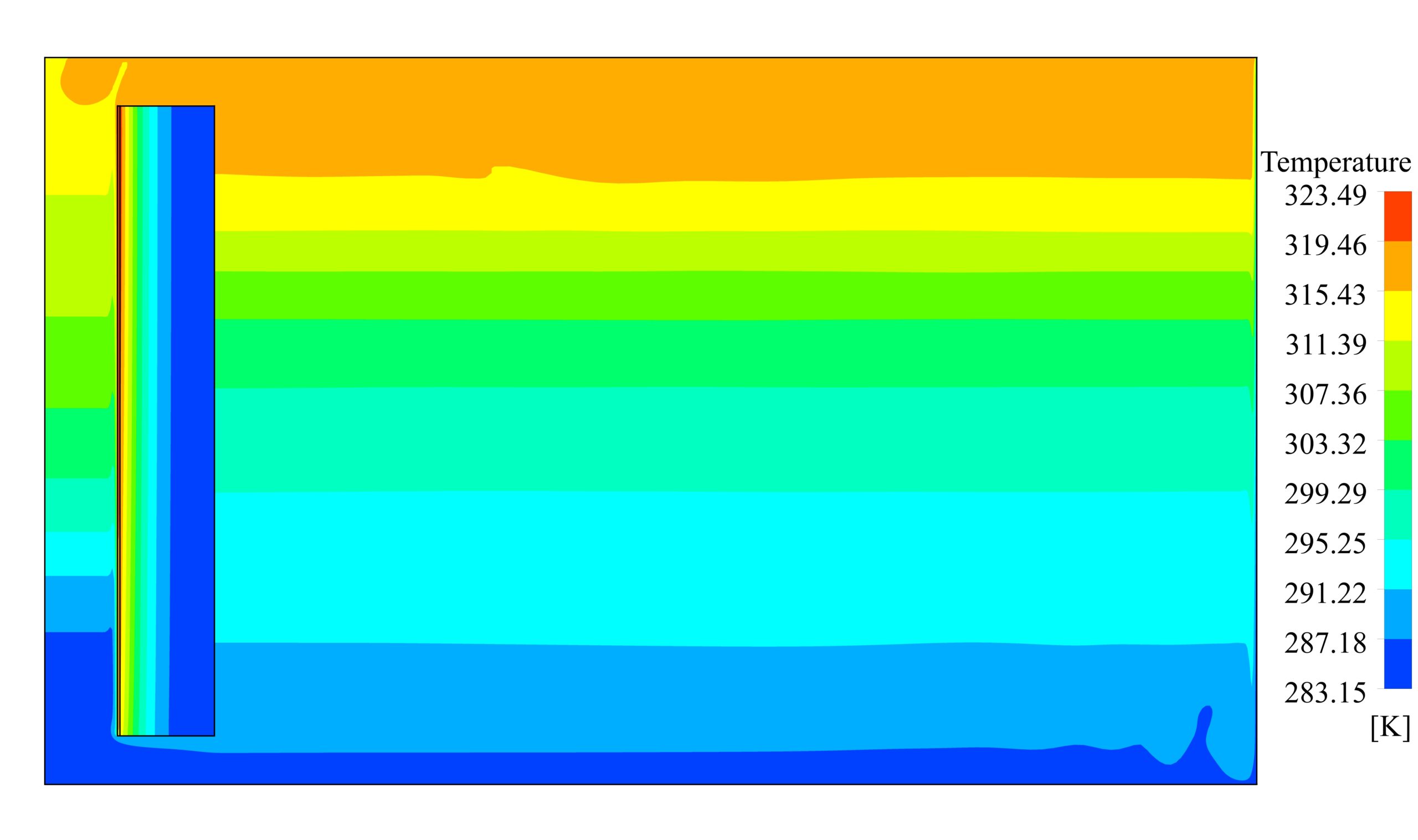

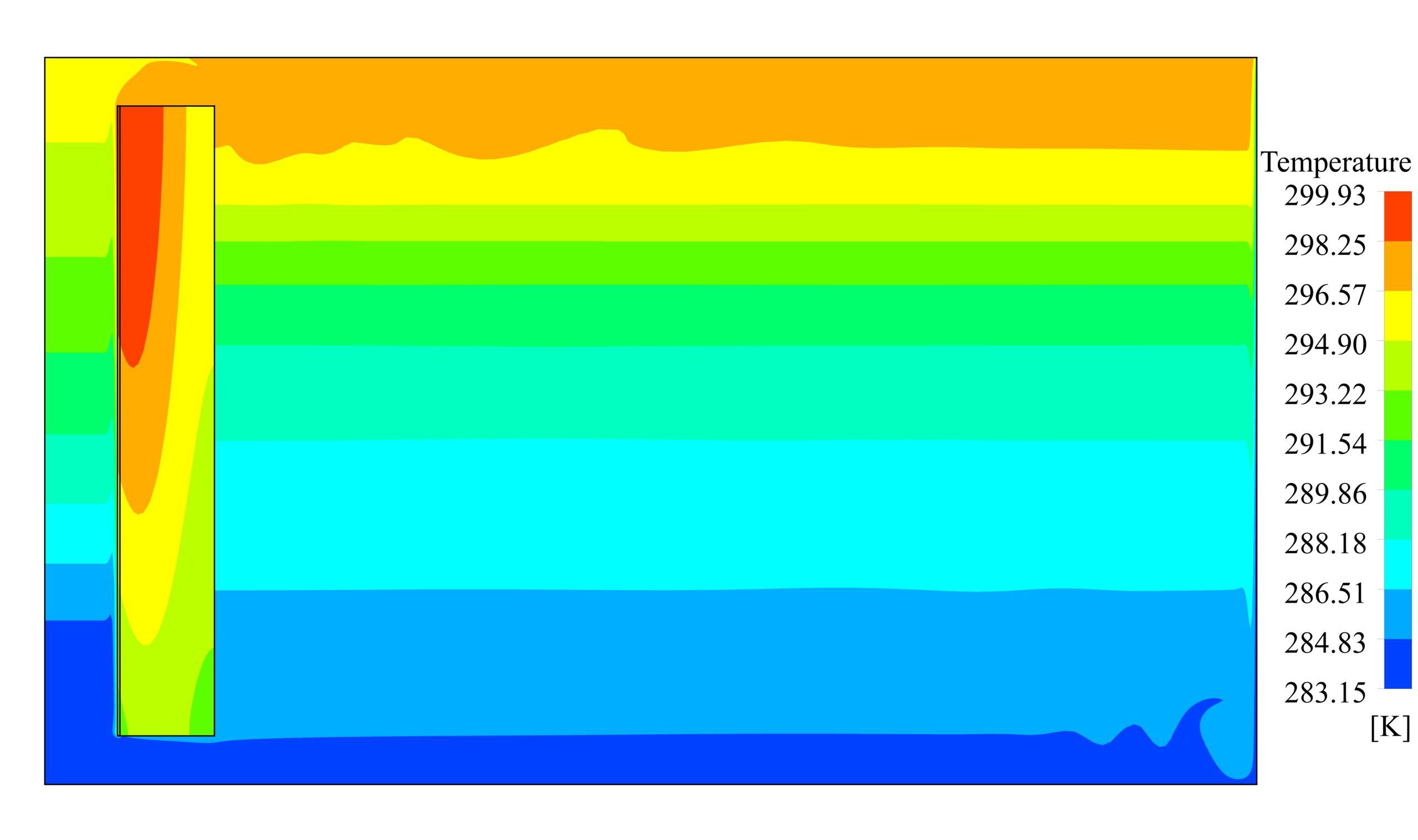

Also the contours of temperature and velocity are presented in the 6, 12 and 18 hours from the beginning of the simulation.
