  • The current CFD Analysis Validates the Paper ‘Aerodynamic analysis of an airborne wind turbine with three different aerofoil-based buoyant shells using steady RANS simulations’ via ANSYS Fluent software.
  • We have designed the geometry using ANSYS Design modeler software and created the mesh on this geometry using ICEM CFD software. The mesh type is hexahedra with 859,934 cells.
  • The k-ω SST turbulence model is used in this simulation.
  • The Pressure Coefficient parameter is compared and validated with the article results.

Special Offers For Single Product

If you need the Geometry designing and Mesh generation training video for one product, you can choose this option.
If you need expert consultation through the training video, this option gives you 1-hour technical support.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.
editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
The MR CFD certification can be a valuable addition to a student resume, and passing the interactive test can demonstrate a strong understanding of CFD simulation principles and techniques related to this product.

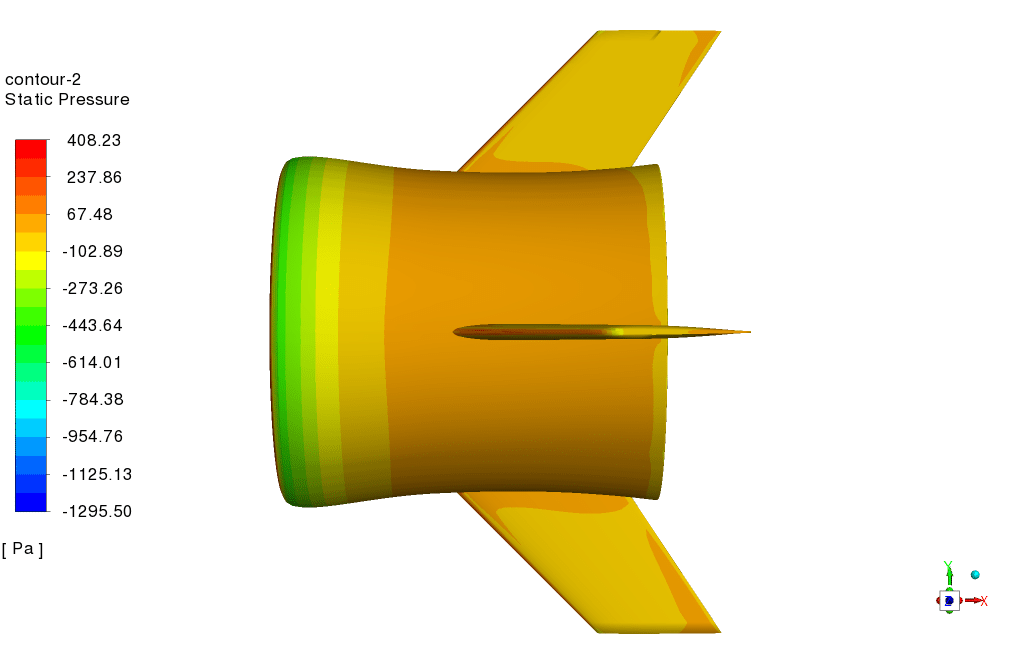

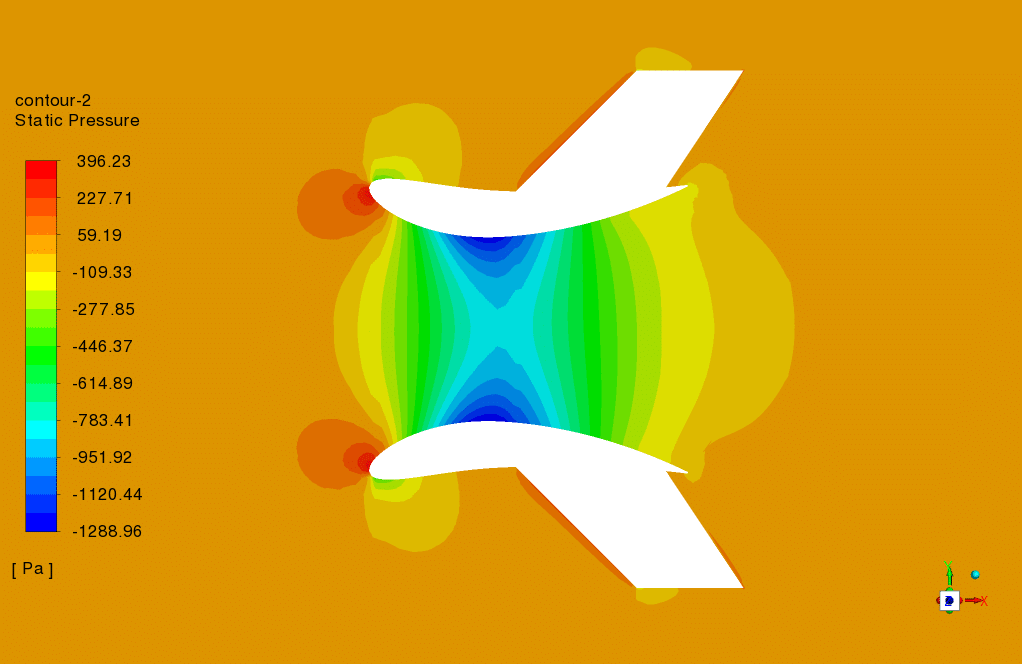

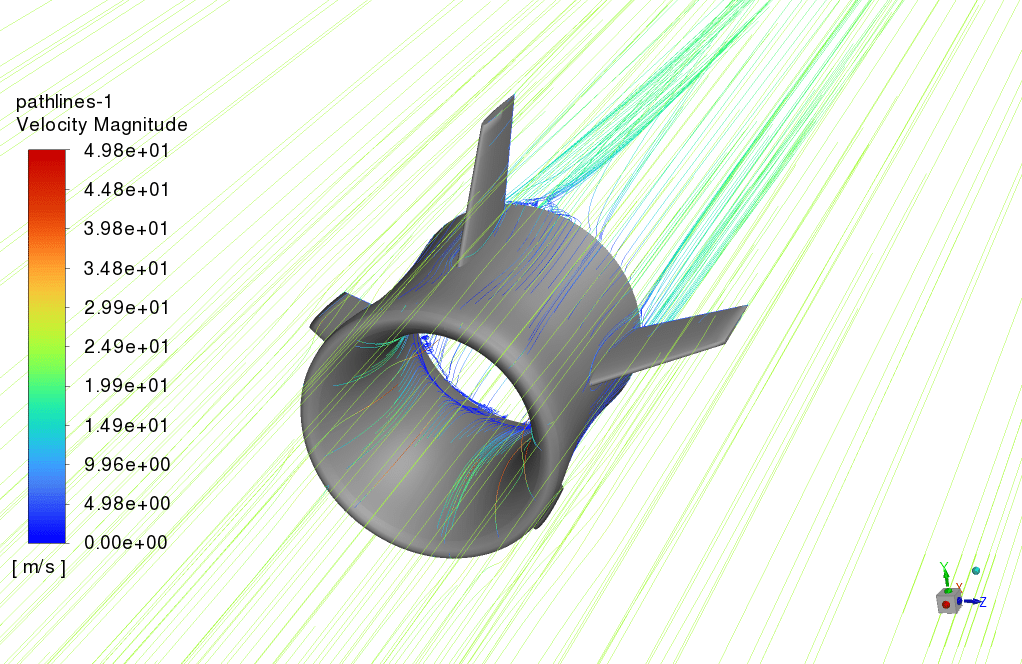

In this CFD Analysis, validation of the Paper ‘Aerodynamic Analysis of an Airborne Wind Turbine with Three Different Aerofoil-Based Buoyant Shells using Steady RANS Simulations‘ has been done by simulating the airborne part without the use of a turbine. The simulated pressure distribution has been compared with the paper. In this problem, the flow passes over the airborne at a speed of 25m/s.

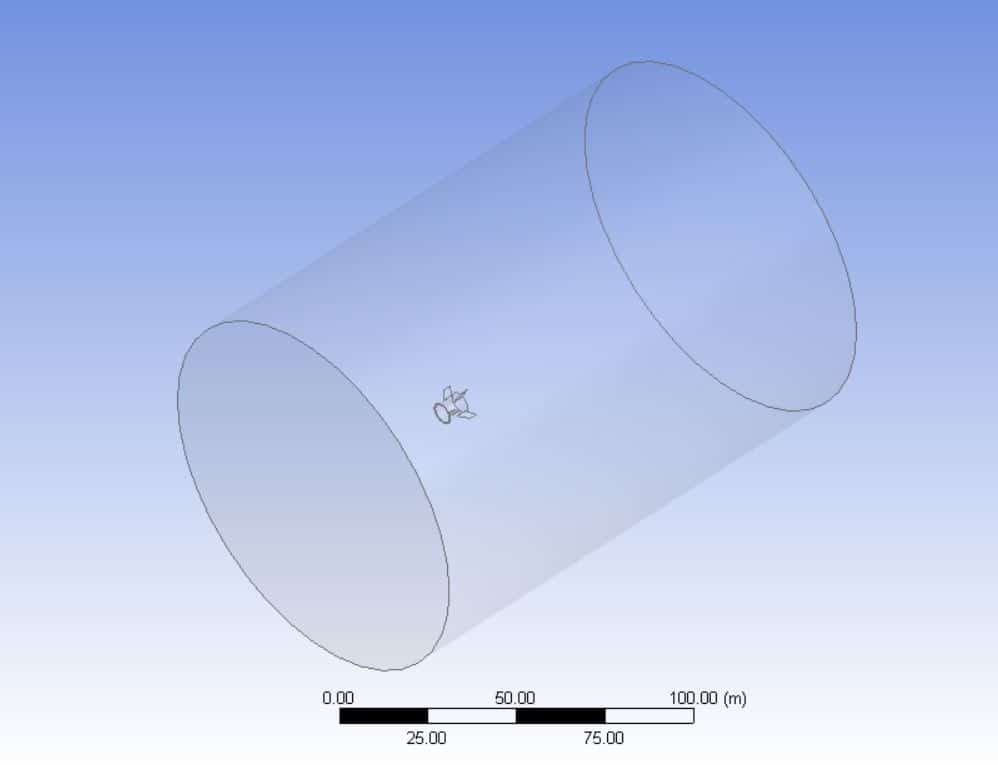

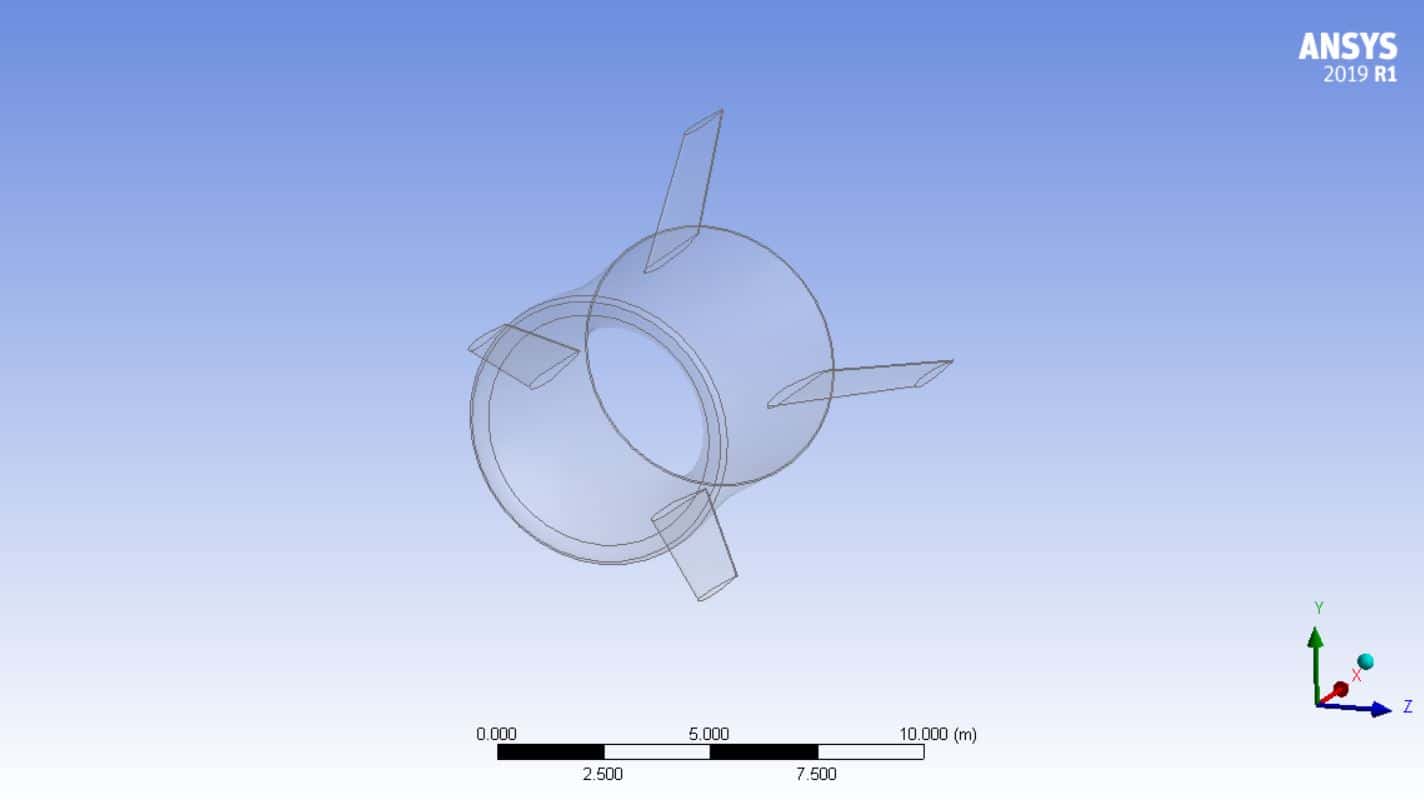

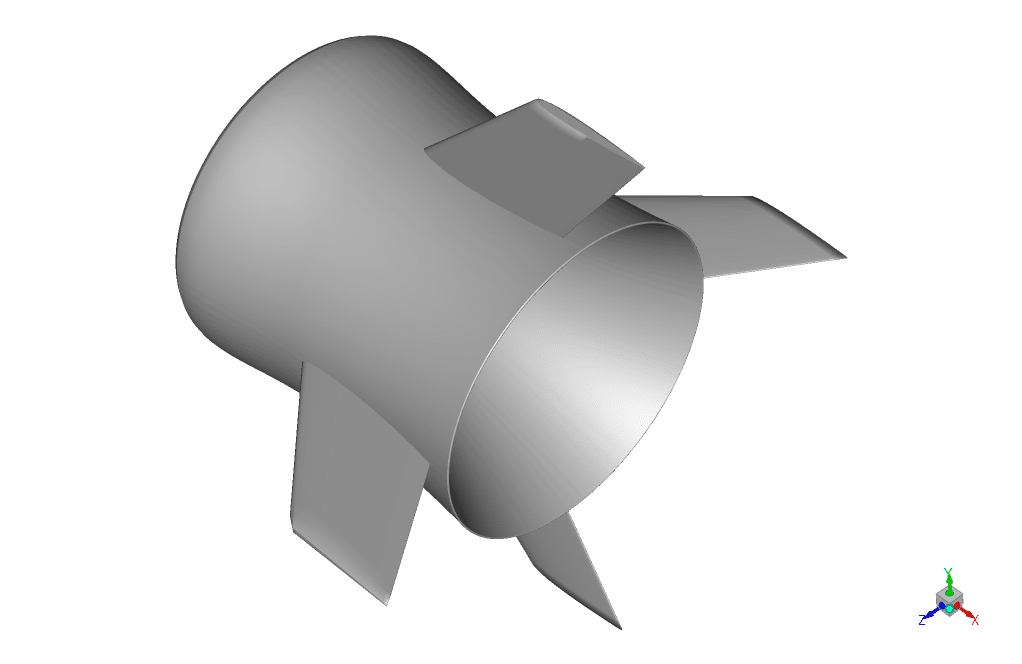

To draw Airborne geometry from Design Modeler software, first, the surface of the shell and then the cross-section is drawn. In this simulation, NACA-9415 airfoil is used for the shell section, and NACA-0009 symmetrical airfoil is used for the blades.

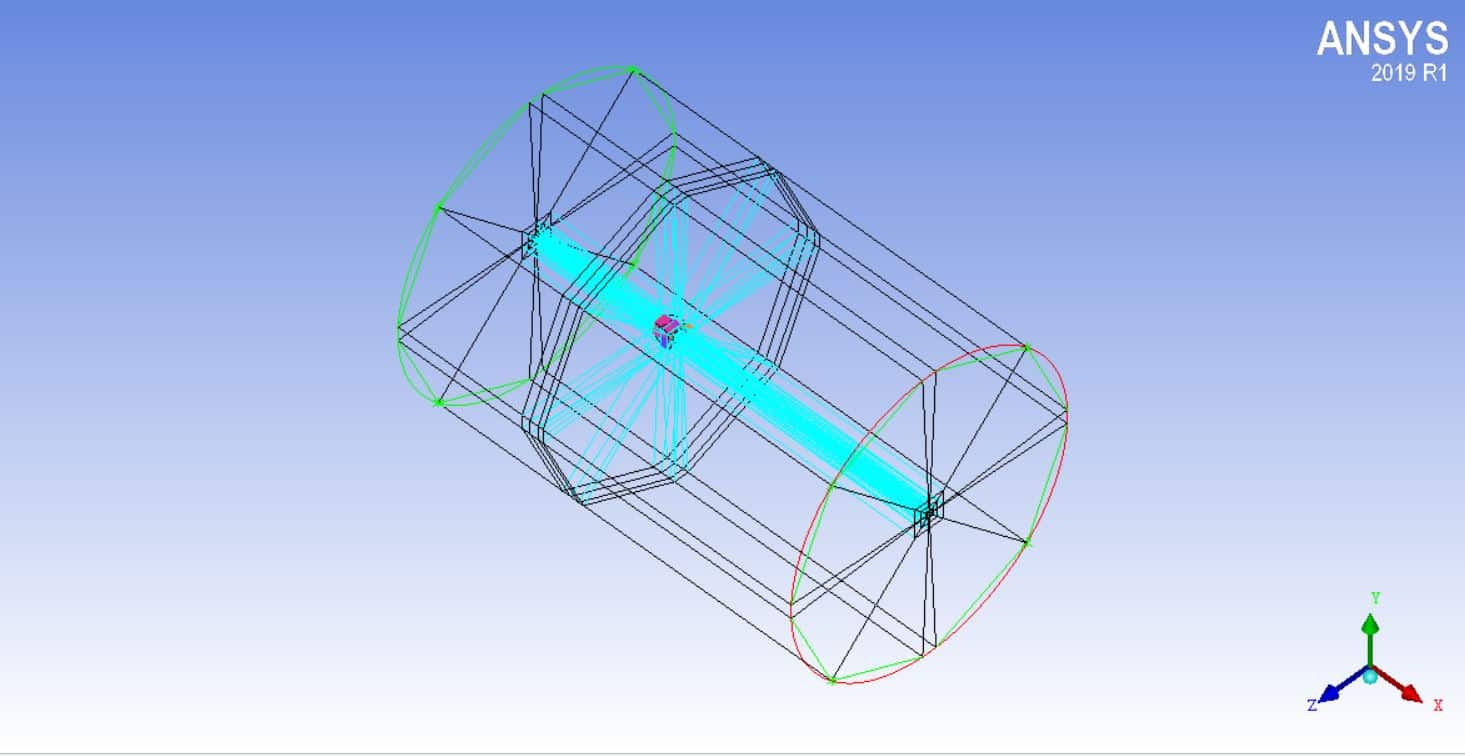

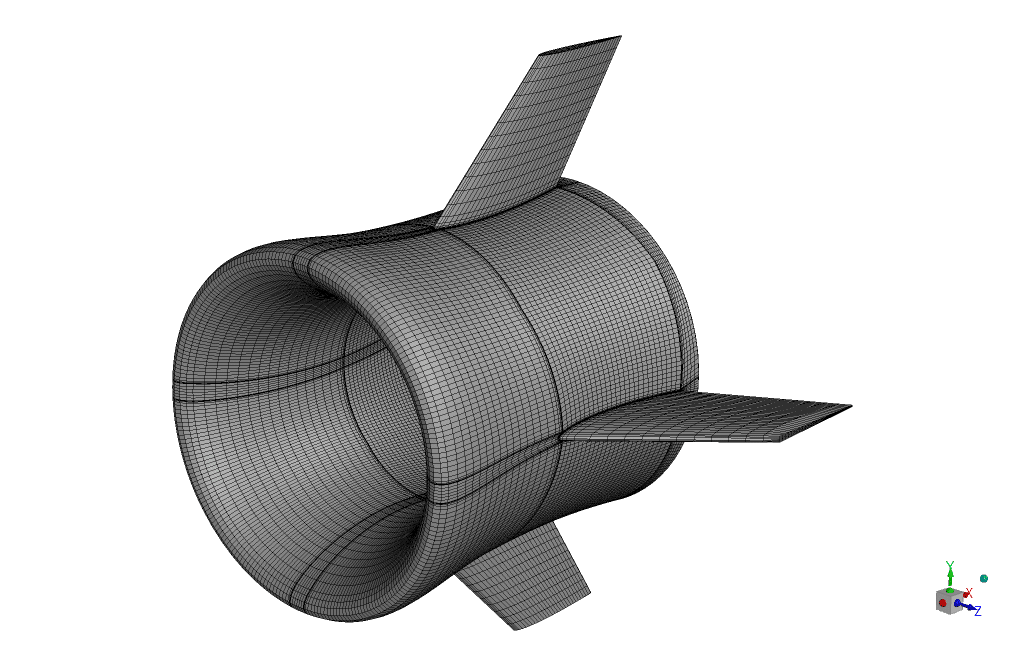

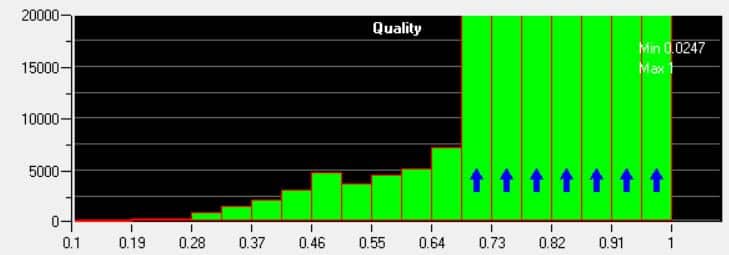

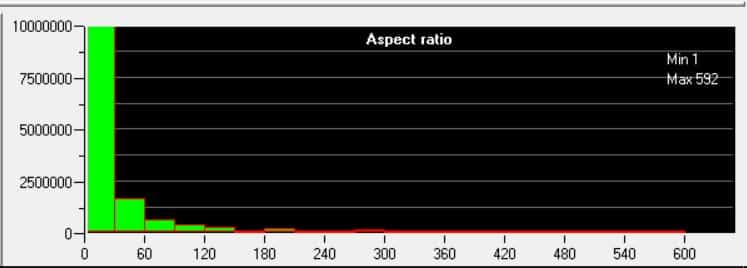

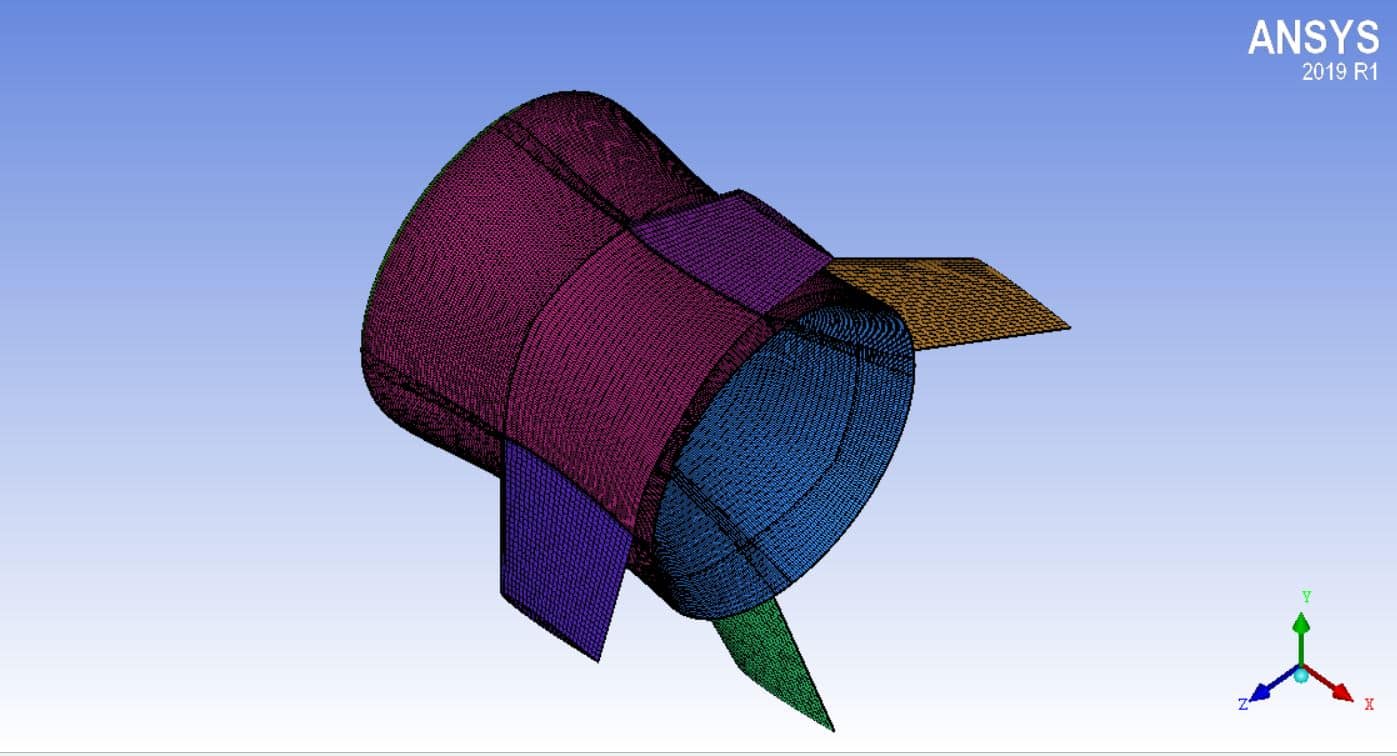

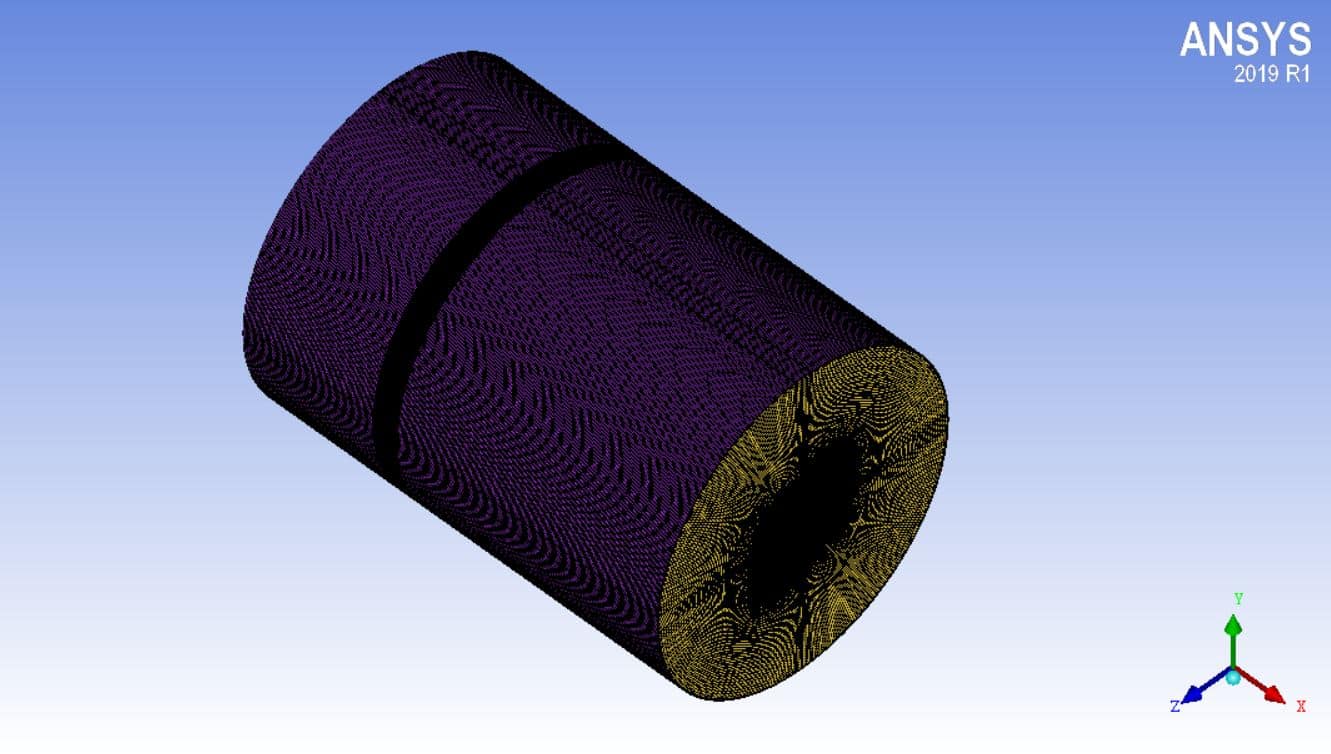

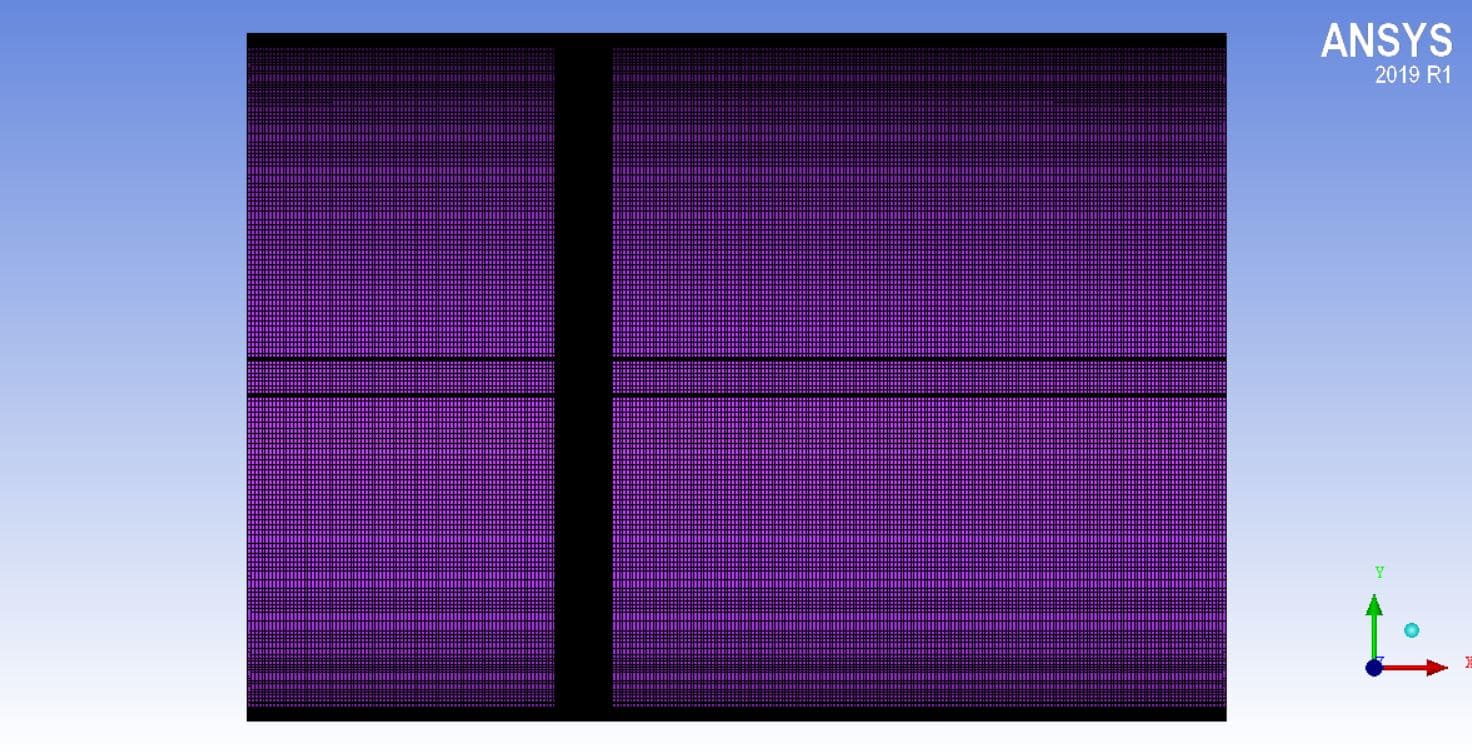

The meshing of the current model is done by ICEM CFD software in a fully structured grid. The mesh type is hexahedra, and the element number is 859934.

Methodology: Airborne Wind Turbine

The k-ω SST turbulence model is used in this simulation. This model has been applied to obtain higher accuracy and reduced computation time.

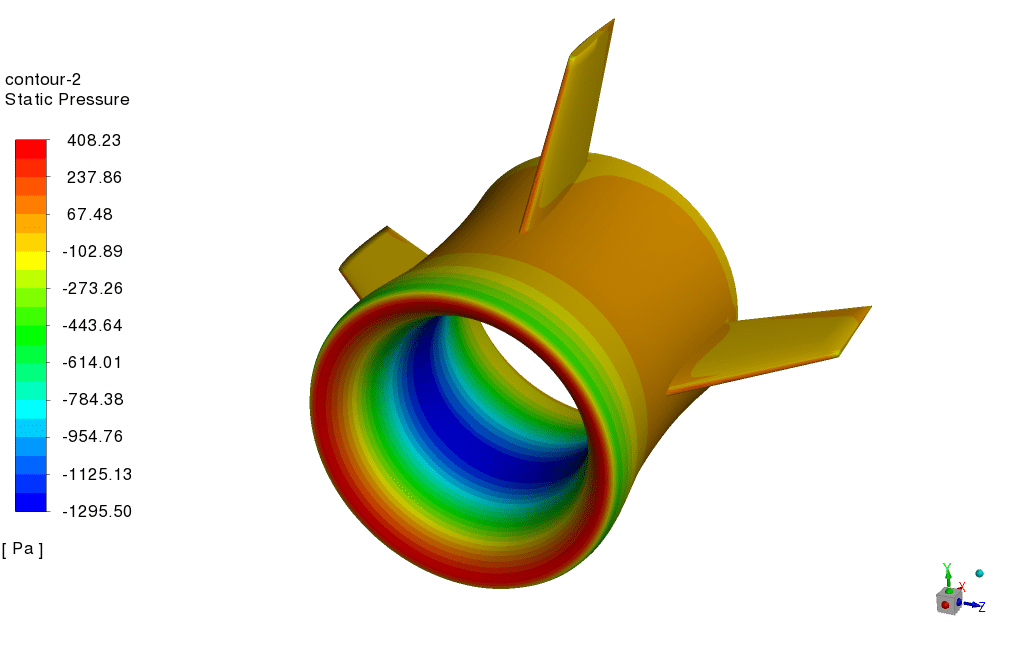

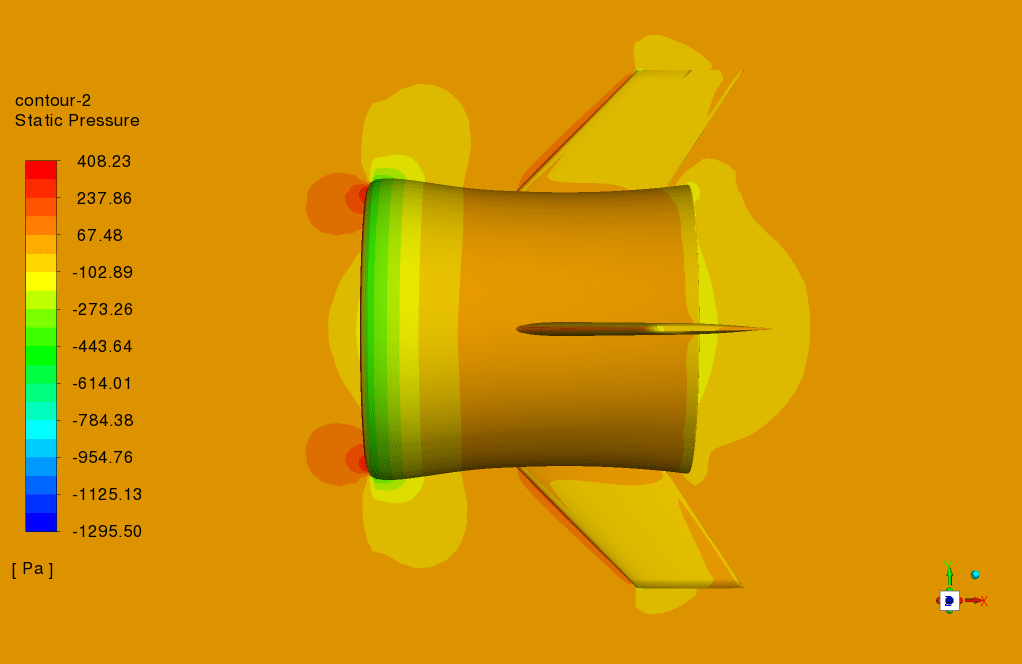

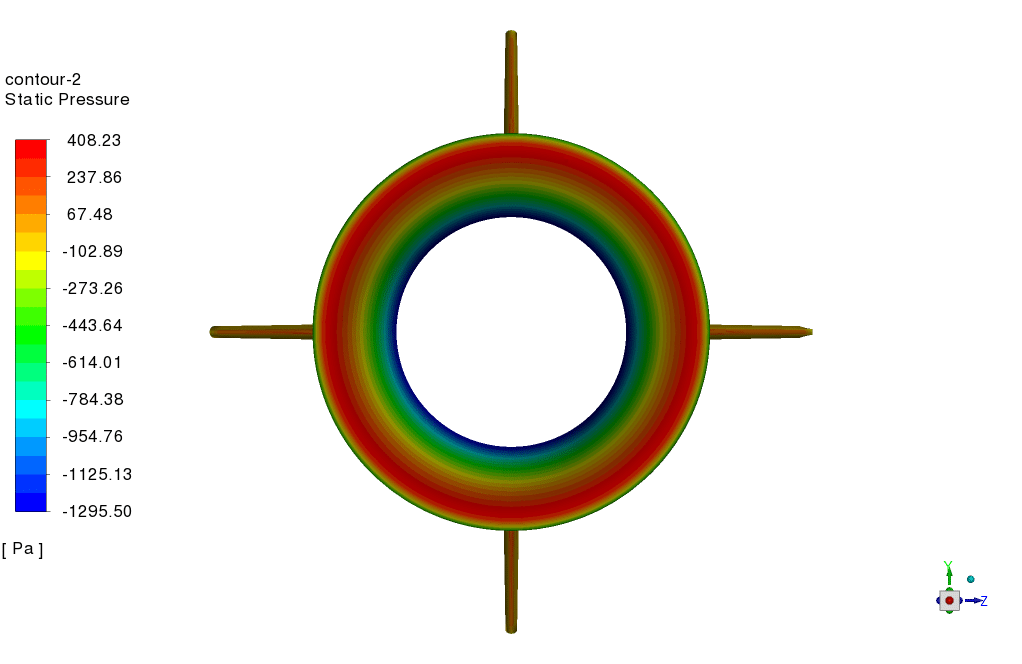

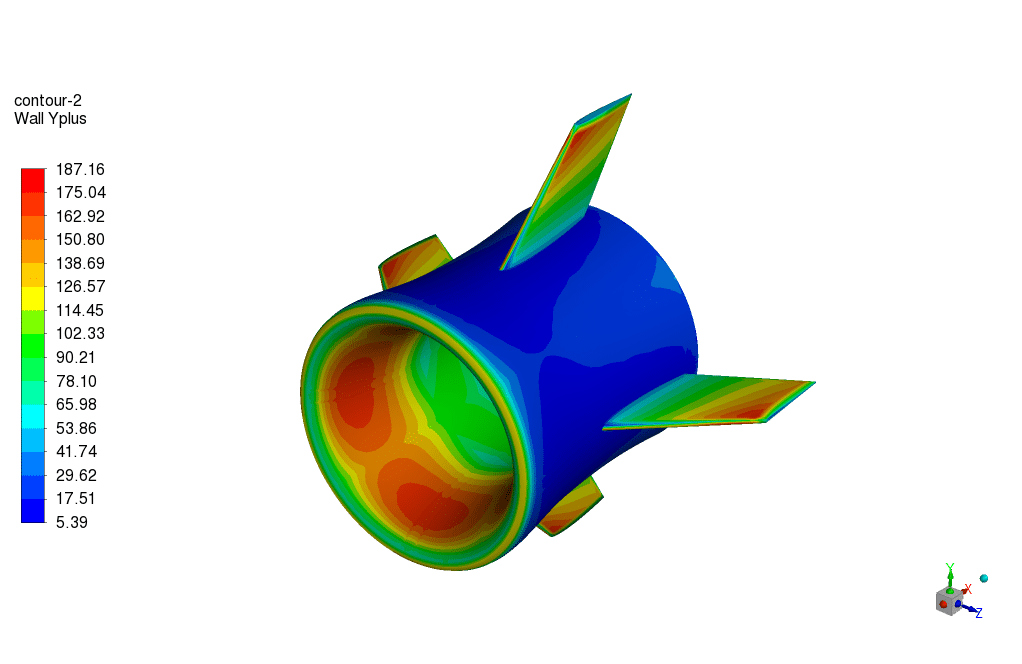

Due to the use of the K-w turbulence model, the value of y+ must be below 1. This element has been increased slightly due to the structured and complex mesh. But still, the results are reliable and correct. The value of the pressure coefficient for the NACA-9415 airfoil is simulated and compared with the paper.

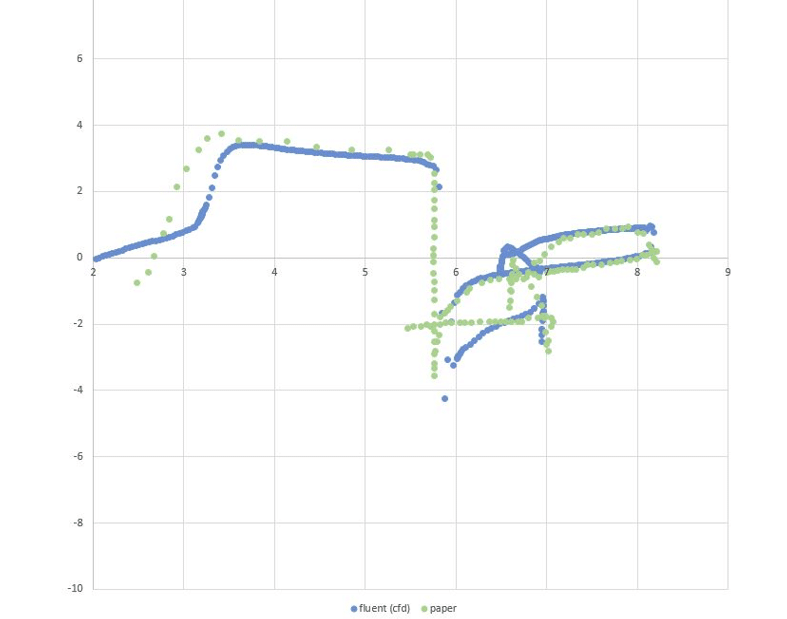

Finally, as seen in the chart above, the results have acceptable accuracy in comparison to Fig-18 in the paper, shown below.Airborne Wind Turbine Aerodynamic Analysis, Paper Numerical Validation, ANSYS Fluent Training
