Floor Heating System of a Room CFD Simulation

$81.00 $34.00

Rated 0 out of 5
(be the first to review)

The present problem simulates the heat transfer from a floor heating system into a room.



This ANSYS Fluent project includes CFD simulation files and a training movie.

There are some free products to check the service quality.

To order your ANSYS Fluent project (CFD simulation and training), contact our experts via info@mr-cfd.com, online support, and WhatsApp.



Description

Floor Heating System Project Description

The present problem simulates the heat transfer from a floor heating system into a room. In fact, this heating system is built into the floor of the room, which acts as a heat source. It is assumed that this heating system has a constant thermal flux of 166.6 W.m-2. The sidewalls and ceiling have a thickness of 0.2 m of wood, which has convection heat transfer with the outside; Thus, the ambient air temperature is assumed to be 280 K and the convection heat transfer coefficient is assumed to be 10 W.m-2.K-1. The purpose of this study is to investigate the heat transfer rate through the floor heating system to the interior of the room using natural convection and buoyancy effect. Therefore, gravity is applied to the model, and the air inside the room is considered to be an ideal gas.

Room Geometry & Mesh

The present 3-D model is drawn using the Design Modeler software. The present model consists of a room in the shape of a rectangular cube with dimensions of 4 m * 3 m * 3.3 m. The figure below shows the geometry.

floor heating

The mesh is done using ANSYS Meshing software and the mesh type is structured. The element number is 93,280. The following figure shows the mesh.

floor heating

To simulate the present model, several assumptions are considered:

  • We perform a pressure-based solver.
  • The simulation is steady
  • The gravity effect on the fluid is equal to -9.81 m.s-2 along the z-axis.

A summary of the defining steps of the problem and its solution is given in the following table:

(floor heating system)



Models
Viscous model   k-epsilon
  k-epsilon model standard
  near-wall treatment standard wall function
Energy   on
(floor heating system)



Boundary conditions
Sidewalls & roof   wall
  wall motion stationary wall
  convection heat transfer coefficient 10 W.m-2.K-1
  free stream temperature 280 K
Ground   wall
  wall motion stationary wall
  heat flux 166.66666 W.m-2
(floor heating system)



Solution Methods
Pressure-velocity coupling   Coupled
Spatial discretization pressure second-order
momentum second-order upwind
turbulent kinetic energy second-order upwind
turbulent dissipation rate second-order upwind
density second-order upwind
energy second-order upwind
(floor heating system) Initialization
Initialization method   Standard
  gauge pressure 0 Pascal
  velocity (x,y,z) 0 m.s-1
  temperature 280 K

Results

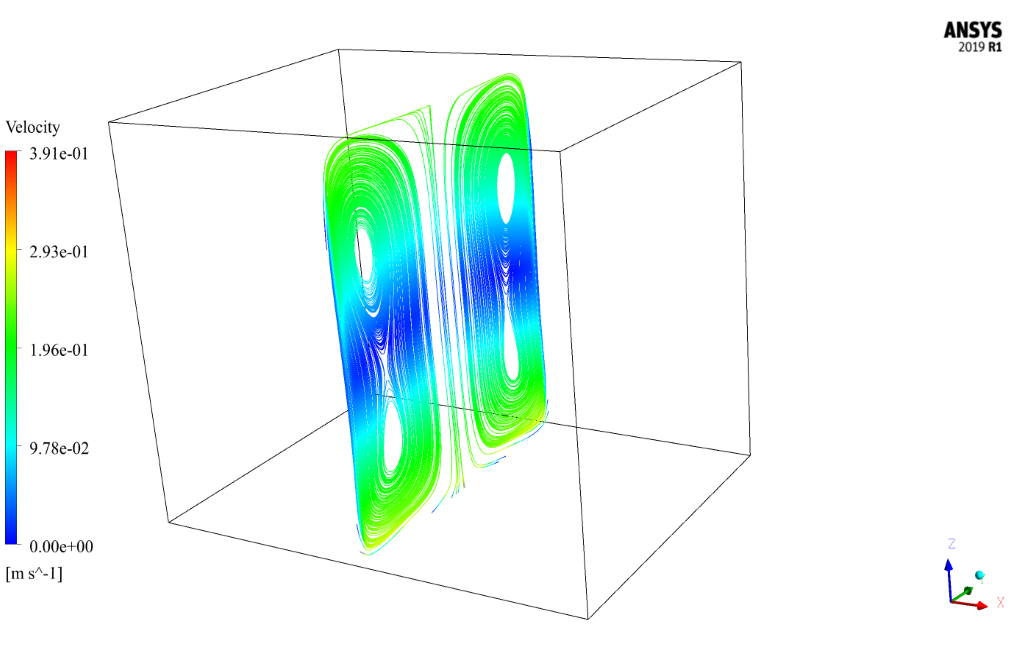

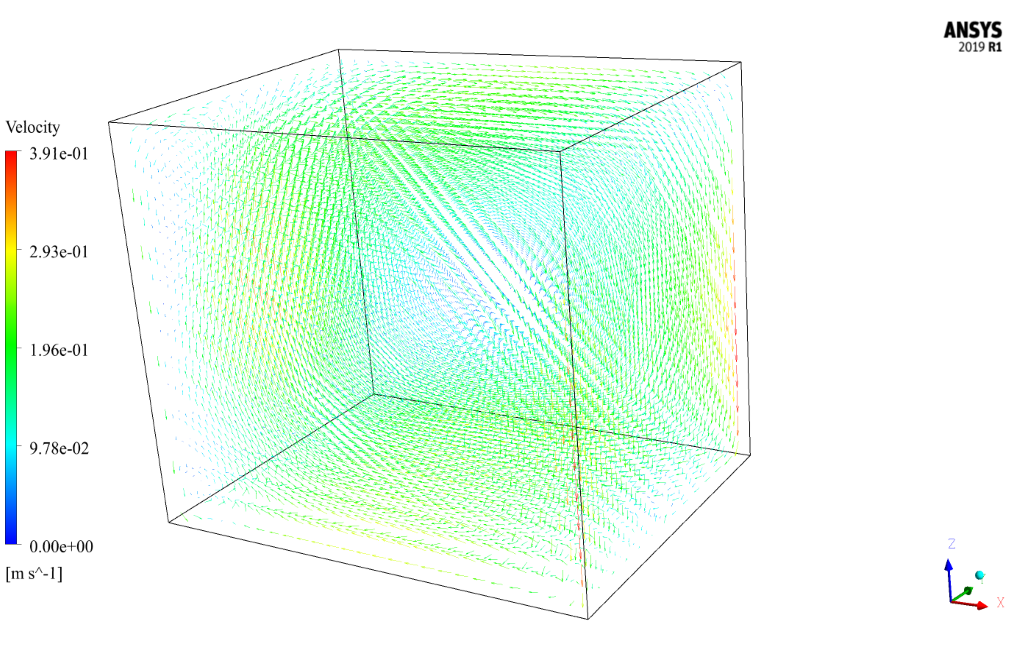

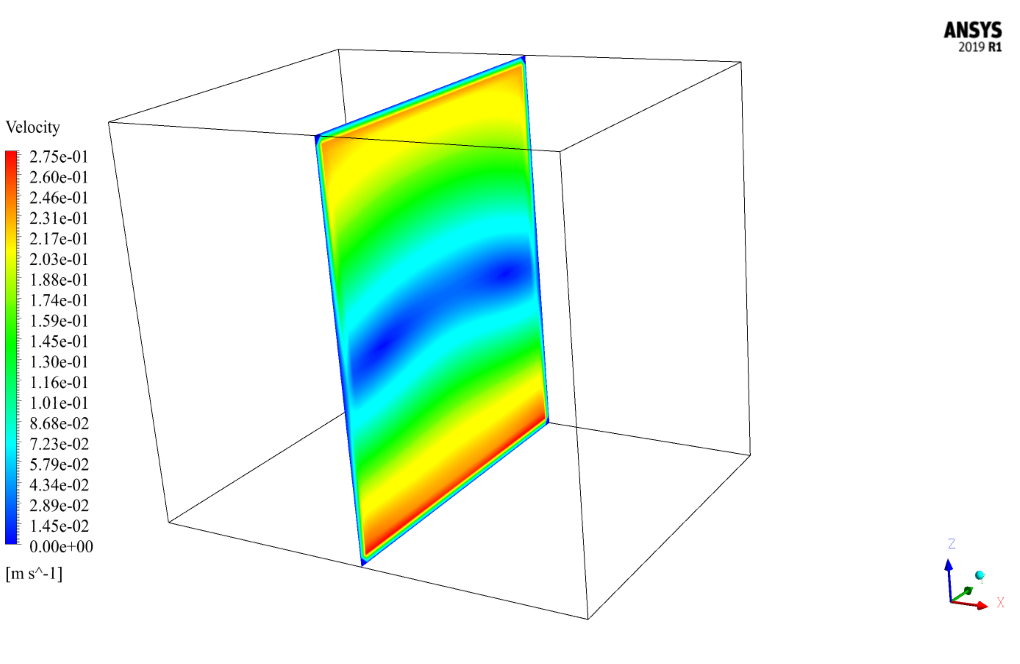

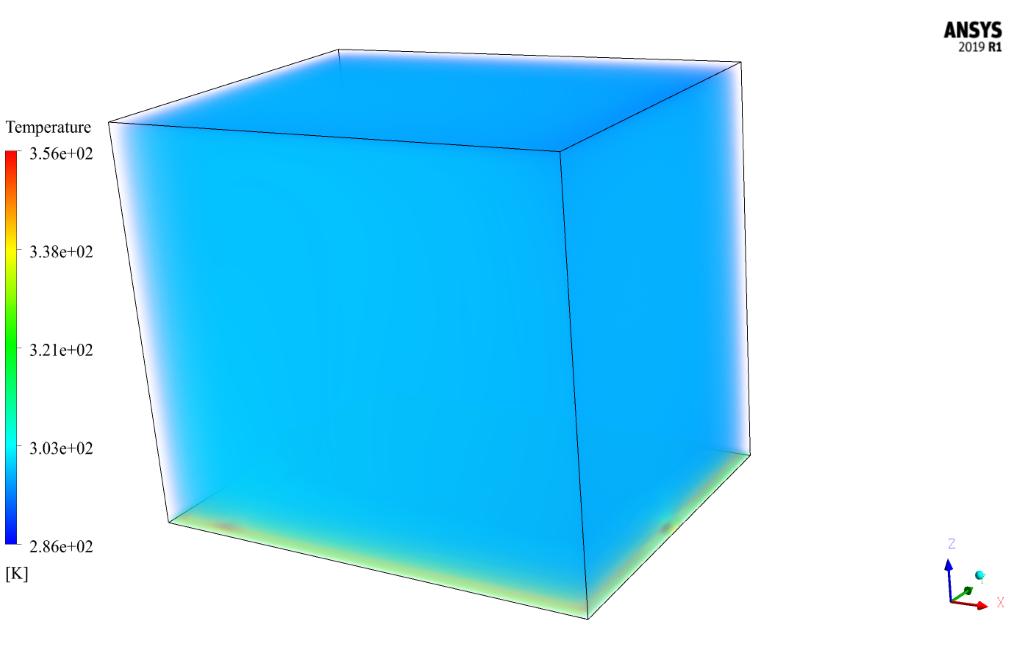

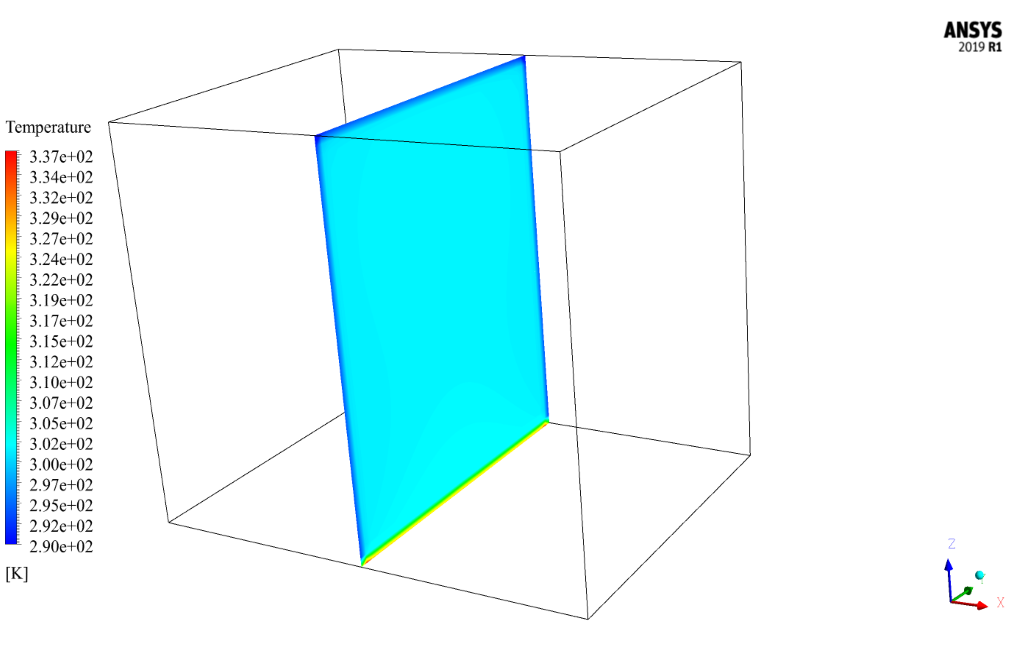

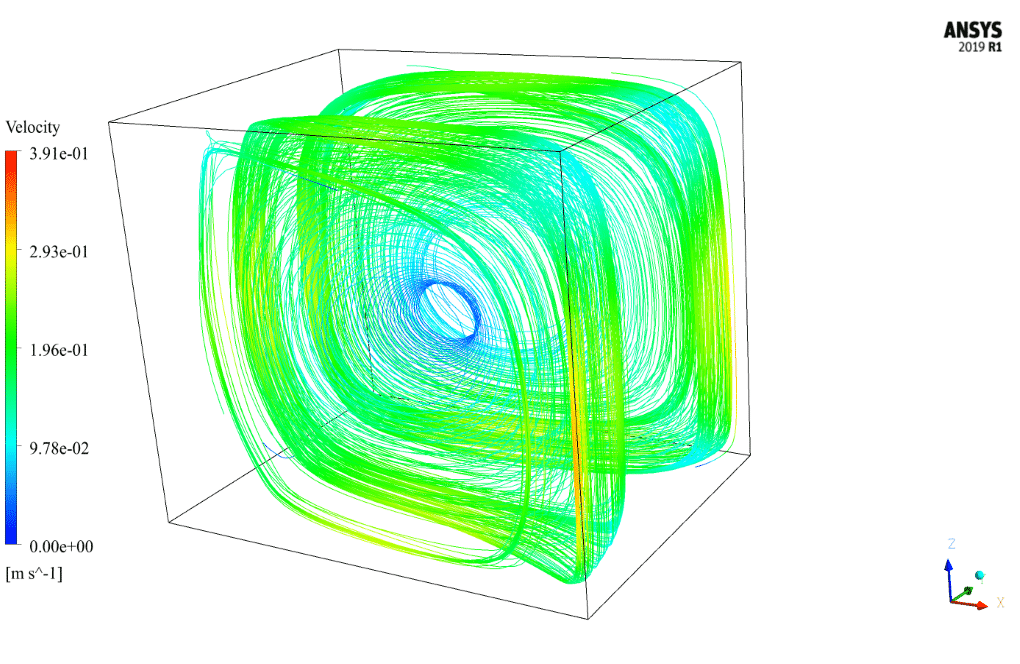

At the end of the solution process, the velocity, temperature, and pressure contours, pathlines, and velocity vectors are obtained in two-dimensional and three-dimensional.



All files, including Geometry, Mesh, Case & Data, are available in Simulation File. By the way, Training File presents how to solve the problem and extract all desired results.
