Volume of Fluid (VOF), Package for Beginners, Part 1, 10 Learning Products

Original price was: $900.00.Current price is: $100.00. Student Discount

This training package includes 10 practical Multi-phase Volume Of Fluid (VOF) exercises using ANSYS Fluent software.

Click on Add To Cart and obtain the Geometry file, Mesh file, and a Comprehensive ANSYS Fluent Training Video.

To Order Your Project or benefit from a CFD consultation, contact our experts via email ([email protected]), online support tab, or WhatsApp at +44 7443 197273.

There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via [email protected] after you buy the product.

Three-Phase Flow of Water, Air, and Kerosene in a Porous Zigzag Channel CFD Simulation, ANSYS Fluent

  • The problem numerically simulates the three-Phase Flow in a Porous Zigzag Channel using ANSYS Fluent software.
  • We design the 3-D model with the Design Modeler software.
  • We mesh the model with ANSYS Meshing software.
  • The mesh type is Structured, and the element number equals 416000.
  • We perform this simulation as unsteady (Transient).
  • We use the VOF Multiphase model to define the three-Phase Flow of Water, Air, and Kerosene.
  • We use the Porous medium in cell zone condition.

Water infiltration into a porous concrete block, ANSYS Fluent Simulation Training

  • The problem numerically simulates Water infiltration into a porous concrete block using ANSYS Fluent software.
  • We design the 3-D model by the Design Modeler software.
  • We Mesh the model by ANSYS Meshing software, and the element number equals 623464.
  • We perform this simulation as unsteady (Transient).
  • We use the Porous medium to study water infiltration into a porous concrete block.
  • We use the VOF Multi-Phase model to define two-phase flow inside a concrete block.

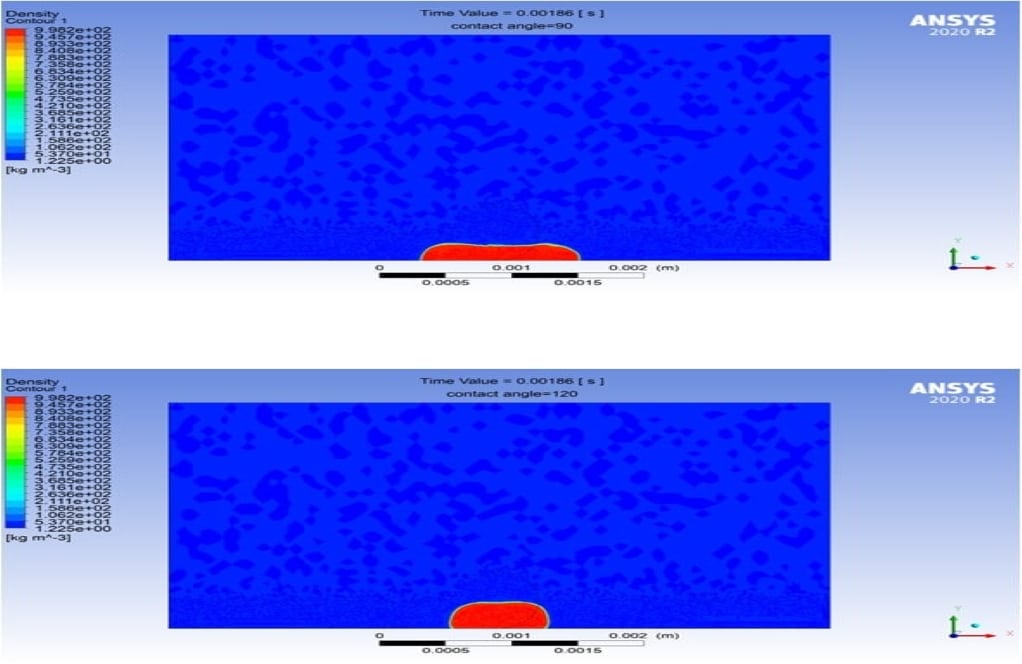

Effect of Contact Angle on Droplet Collapse, Ansys Fluent Training

  • The problem numerically simulates the Effect of Contact Angle on Droplet Collapse using ANSYS Fluent software.
  • We design the 3-D model by the SpaceClaim software.
  • We Mesh the model by ANSYS Meshing software, and the element number equals 53440.
  • We perform this simulation as unsteady (Transient).
  • We use the VOF Multi-Phase model to water droplets in the air.

Droplet Collapse on a Wall with/without Shear Stress, Ansys Fluent Training

In this project, the water droplet collapse on the wall with/without shear stress has been simulated and the results of this simulation have been investigated.

Cohesion and Adhesion on the Surface of Two Cylinders, ANSYS Fluent Training

In this project, two phase flow of water and air flowing over two cylinders is simulated.

Falling Droplet, ANSYS Fluent CFD Simulation Training

In this problem, a water droplet falling in the air is simulated by ANSYS Fluent software.

Gas Sweetening Hydrodynamic, ANSYS Fluent CFD Simulation Tutorial

  • The present problem deals with the hydrodynamic simulation of a gas sweetening system using ANSYS Fluent software.
  • The present model is designed in three dimensions using Design Modeler software.
  • We carry out the model's meshing using ANSYS Meshing software. The element number is 2168649.
  • A multiphase model of the VOF type has been used to define the two-phase of sour gas and an amine stream.



Pigging Oil Flow in a Pipeline CFD Simulation

The present problem simulates the pigging oil flow inside pipelines using ANSYS Fluent software.

Solidification of Molted Steel in Solidifying Chamber

In this project, the solidification process of molten steel inside a solidifying chamber is simulated by applying a VOF multi-phase model by ANSYS Fluent.

Shower Channel Drain CFD Simulation, ANSYS Fluent Training

  • The problem numerically simulates Shower Channel Drain using ANSYS Fluent software.
  • We design the 3-D model by the Design Modeler software.
  • We Mesh the model by ANSYS Meshing software, and the element number equals 1310945.
  • We use the VOF Multi-Phase Model to define water and air in the channel.

Special Offers For All Products

If you need the Geometry designing and Mesh generation training video for all the products, you can choose this option.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.
Editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
If you want training in any language other than English, we can provide you with a subtitled video in your language.

Special Offers For Single Product

If you need the Geometry designing and Mesh generation training video for one product, you can choose this option.
If you need expert consultation through the training video, this option gives you 1-hour technical support.
The journal file in ANSYS Fluent is used to record and automate simulations for repeatability and batch processing.
editable geometry and mesh allows users to create and modify geometry and mesh to define the computational domain for simulations.
The case and data files in ANSYS Fluent store the simulation setup and results, respectively, for analysis and post-processing.
Geometry, Mesh, and CFD Simulation methodologygy explanation, result analysis and conclusion
The MR CFD certification can be a valuable addition to a student resume, and passing the interactive test can demonstrate a strong understanding of CFD simulation principles and techniques related to this product.
Enhancing Your Project: Comprehensive Consultation and Optimization Services
Collaborative Development of a Conference Paper on Cutting-Edge Topics with MR CFD
Collaborative Publication Opportunity: Contribute to an ISI Article and Get Featured in Scopus and JCR-Indexed Journals
If you want training in any language other than English, we can provide you with a subtitled video in your language.

Description

Volume Of Fluid (VOF) Multi-phase ANSYS Fluent CFD Simulation Training Package for BEGINNER Users (Part-I)

This training package includes 10 practical Multi-phase Volume Of Fluid (VOF) exercises using ANSYS Fluent software. MR CFD suggests this package for BEGINNER users who tends to learn the simulation process of multi-phase problems without any strong background.

Porous

Project number 1 simulates a three-phase flow mixture within a channel with a square cross-section. These three phases include air, water, and kerosene. The channel consists of a vertical section consisting of two inlet sections at its top and bottom and a zigzag section in the horizontal direction with an outlet section at its end. To simulate multi-phase flow in the present model, the VOF multiphase model has been used. Also, inside the canal, a porous environment with a porosity coefficient of 0.1 is located. The trigger for air and oil flowing into the duct is the pressure difference

Project number 2 simulates the infiltration of water flows into a cubic porous medium. In this modeling, a cube block is designed as a porous medium. The water flow enters it from a circular section at the bottom of the blocks is also assumed that there is only the air inside the block in the initial state, and then water flow penetrates it. Therefore, to define a two-phase flow consisting of water and air, the VOF or volume of fluid model is used.

Cohesion & Adhesion

In project number 3, the two-phase flow of water and air flowing over two cylinders considering cohesion and adhesion is simulated. The water will enter the computational domain with a velocity of 2.6m/s, and it flows over the cylinders’ surfaces. The realizable k-epsilon model is exploited to solve fluid flow equations, and VOF multiphase model is used to investigate the phase interactions.

In project number 4, ANSYS Fluent software has been used for numerical simulation of water droplet collapse on the wall in two modes of non-slip condition and shear stress condition. The VOF model has been used to simulate and solve the two-phase flow field equations.

In project number 5, a numerical simulation of droplet collapse with two different contact angles has been done. The VOF model has been used to simulate and solve the two-phase flow field equations. The purpose of this project is to investigate the collapse of water droplets on the wall at the contact angle of 90 degrees and 120 degrees.

In project number 6, a water droplet falling in the air is simulated. Therefore, the two-phase flow model is used to simulate the initial air phase and the secondary water phase. This simulation only includes fluid analysis and does not discuss thermal analysis. The purpose of the simulation is to investigate the drop behavior during a downward slope and the extent of its volume changes.

Gas Sweetening (Volume of Fluid)

Project number 7 deals with the hydrodynamic simulation of a gas sweetening system. Gas sweetening is generally the process of removing hydrogen sulfide, carbon dioxide, mercaptans, and other impurities from natural gas streams and synthetic gas to make the gas suitable for transportation and use. In this project, two materials are defined within the computational domain, which includes a particular sour gas and an amine stream; However, because this project only deals with the hydrodynamic modeling of this process, the gas removal process does not occur due to the occurrence of a physical or chemical phenomenon

Pigging oil flow

Project number 8 simulates the pigging oil flow inside pipelines. Inside the pipelines in this model, there is a piece called a pig. the simulation process is performed in two different modes; Thus, oil flow with different inlet speeds including 0.9 m/s and 1.9 m/s enters the interior of the pipeline. Also, the VOF multiphase model has been used to define the oil and gas materials in the pipelines, and two materials have been defined as gas-oil and petro in the present model.

Solidifying Chamber

Solidification, also known as freezing, is a phase change of matter that results in the production of a solid. Generally, this occurs when the temperature of a liquid is lowered below its freezing point. In project number 9, the solidification process of molten steel inside a solidifying chamber is investigated. Water is used to lower the molten steel’s temperature and accelerate the solidification process. The simulation is done using the VOF model for the three phases of air, water, and steel.

Shower Channel Drain (Volume of Fluid)

In project number 10, a shower drain inside an inclined channel with 120 water inputs is simulated and analyzed. In order to analyze the air and water flow inside the channel, the standard k-epsilon model with the use of standard wall functions is exploited. The multi-phase VOF model has been used to investigate the two-phase flow of air and water within this channel.
